Yamaha 2 CMHS [7/25] Fig 1 cowling fuel cubierta y combustible
![Yamaha 2 CMHS [7/25] Fig 1 cowling fuel cubierta y combustible](/views2/1240961/page7/bg7.png)
1

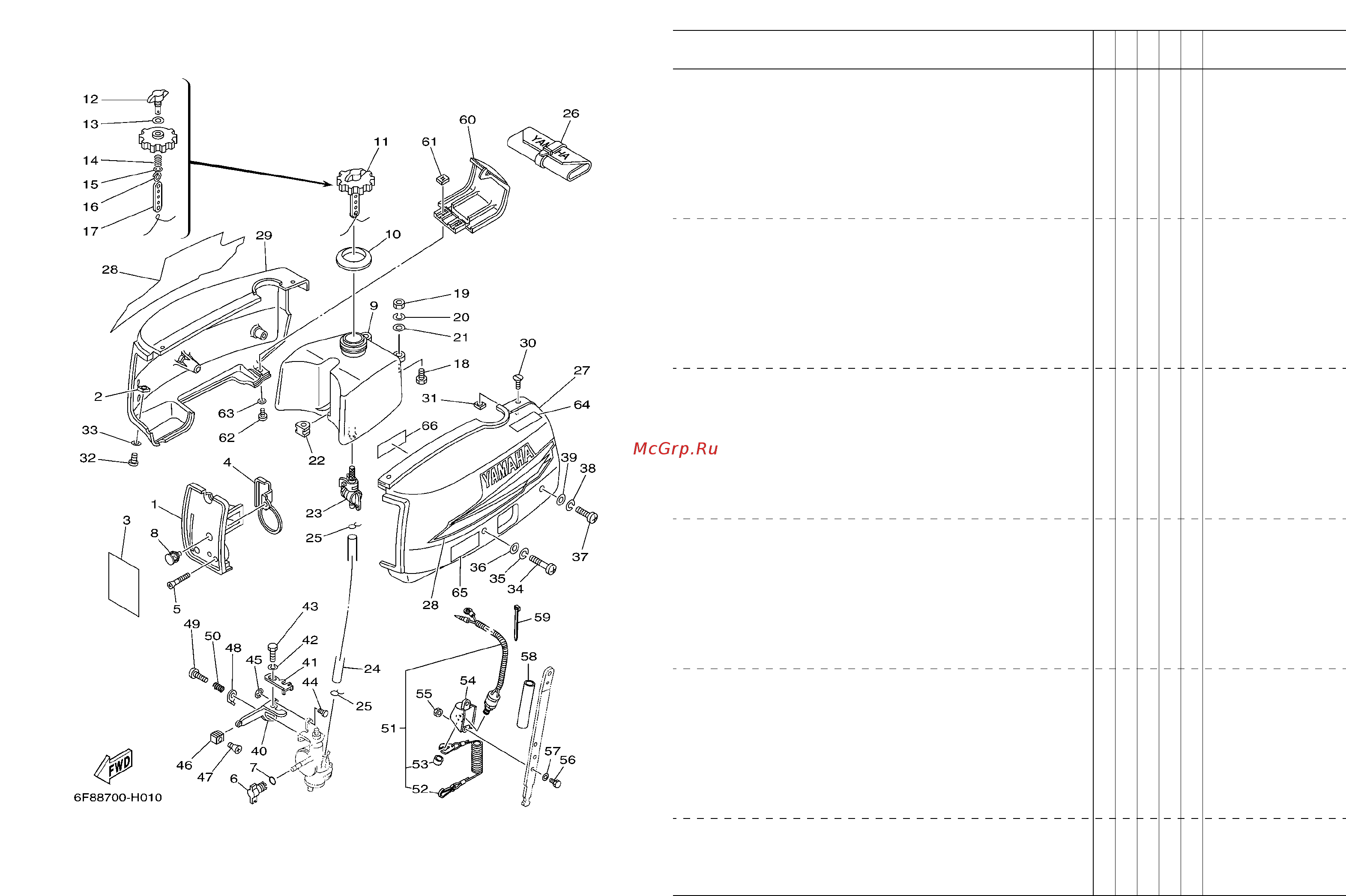

FIG. 1 COWLING & FUEL CUBIERTA Y COMBUSTIBLE
REF.
NO.
PART NO.
CODIGO Nº
DESCRIPTION
DESCRIPCION
6F89
REMARKS
OBSERVACIONES
1
6A1–14441–02
SILENCER, INTAKE 2
SILENCIADOR DE ADMISION 2
1
2
90173–05M00
NUT, SQUARE
TUERCA CUADRADA
2
3
6A1–42677–20
GRAPHIC, FRONT
CALCAMONIA FRONTAL
1
4
6A1–14442–00
SPACER
ESPACIADOR
1
5
90151–04M04
SCREW, COUNTERSUNK
TORNILLO EMBUTIDO
2
6
6A1–41271–00
KNOB, CHOKE
PERILLA AHOGADOR
1
7
93210–08M29
O-RING
ANILLO O
1
8
90338–08010
PLUG
TAPON
1
9
6A1–24110–01
FUEL TANK COMP.
DEPOSITO DE COMBUSTIBLE COMP.
1
10
6A1–24198–00
SEAT, RUBBER
ASIENTO DE GOMA
1
11
6A1–24610–02
CAP ASSY
TA PA C O M P L E TA
1
12
6A1–24631–00
.SCREW, AIR
.TORNILLO DE AIRE
1
13
90430–04005
.GASKET
.JUNTA
1
14
90501–100A5
.SPRING, COMPRESSION
.RESORTE DE COMPRESION
1
15
92990–04200
.WASHER, PLAIN
.ARANDELA PLANA
1
16
90468–100A0
.CLIP
.PRESILLA
1
17
646–24241–00
.INDICATOR 1
.INDICADOR 1
1
18
97095–06018
BOLT
PERNO
2
19
95380–06600
NUT, HEXAGON
TUERCA
2
20
92995–06100
WASHER, SPRING
ARANDELA
2
21
90201–06M30
WASHER, PLATE
ARANDELA PLANA
2
22
6A1–24181–00
DAMPER, LOCATING 1
AMORTIGUADOR DE MONTAJE 1
1
23
6A1–24500–02
FUEL COCK ASSY 1
GRIFO DE COMBUSTIBLE 1
1
24
6A1–24311–00
PIPE, FUEL 1
TUBO DE COMBUSTIBLE 1
1
25
90467–08004
CLIP
PRESILLA
2
26
656–W2810–02
TOOL KIT
JUEGO DE HERRAMIENTAS
1
27
6F8–42741–00
APRON
MANDIL
1
