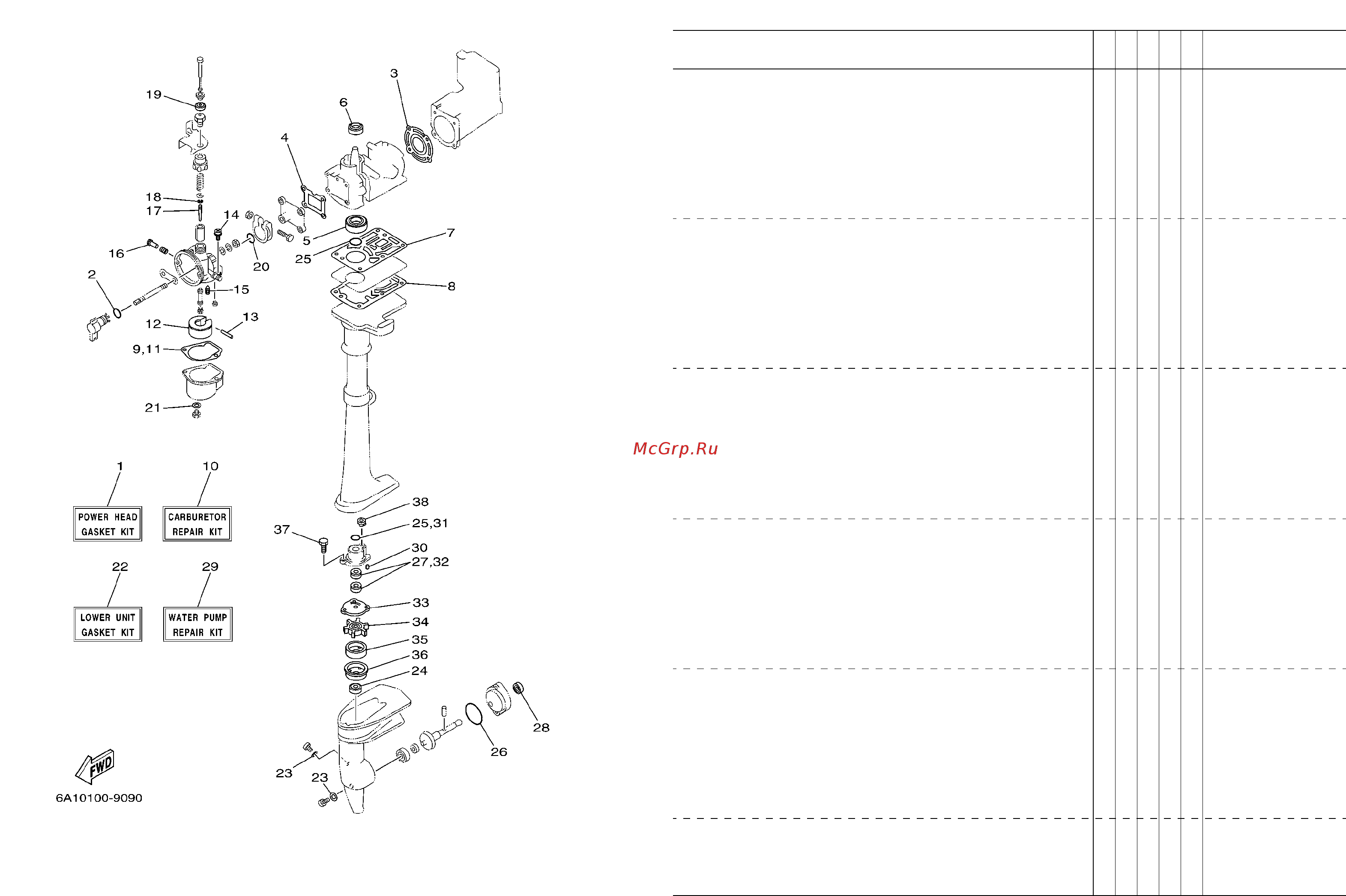

FIG. 9 REPAIR KIT ESTUCHE REPARATION
REF.
NO.
PART NO.
CODIGO Nº
DESCRIPTION
DESCRIPCION
6F89
REMARKS
OBSERVACIONES
1
6F8–W0001–A1
POWER HEAD GASKET KIT
JUEGO DE EMPAQUE DE MOTOR
1
2
93210–08M29
.O-RING
.ANILLO O
1
3
6F8–11181–A1
.GASKET, CYLINDER HEAD 1
.JUNTA, DE CULATA 1
1
4
6A1–13621–A0
.GASKET, VALVE SEAT
.JUNTA, DE VALV.DE EMPAQUE
1
5
93102–15M32
.OIL SEAL
.SELLO ACEITE
1
6
93102–20070
.OIL SEAL
.SELLO ACEITE
1
7
6A1–14613–A0
.GASKET, EXHAUST PIPE
.JUNTA, TUBO DE ESCAPE
1
8
646–14623–A1
.GASKET, EXHAUST PIPE
.EMPAQUE
1
9
6A1–14384–00
.GASKET, FLOAT CHAMBER
.EMPAQUE DE CAMARA DE BOIA
1
10
6F8–W0093–02
CARBURETOR REPAIR KIT
KIT REPARACION CARBURADOR
1
11
6A1–14384–00
.GASKET, FLOAT CHAMBER
.EMPAQUE DE CAMARA DE BOIA
1
12
6A1–14385–00
.FLOAT
.BOIA
1
13
6A1–14386–00
.PIN, FLOAT
.PASADOR DE BOIA
1
14
97980–04110
.SCREW, WITH WASHER
.TORNILLO, CON ARANDELA
2
15
6A1–14392–00
.VALVE, NEEDLE
.VALVULA DE AGUJA
1
16
646–14211–02
.SCREW, PILOT ADJUSTING
.TORNILLO DE AJUSTE DE PILOTO
1
17
6F8–14116–00
.NEEDLE
.AGUJA DE SURTIDOR
1
18
646–14137–00
.CLIP
.PRESILLA
1
19
646–14169–00
.CAP
.FUNDA
1
20
646–14229–01
.O-RING
.EJE DE AHOGADOR
1
21
646–14198–01
.GASKET
.EMPAQUE
1
22
6A1–W0001–23
LOWER UNIT GASKET KIT
JUEGO DE JUNTA UNIDAD INFERIOR
1
23
90430–08020
.GASKET
.JUNTA
2
24
93103–11051
.OIL SEAL
.SELLO ACEITE
1
25
93210–19123
.O-RING
.ANILLO O
1
26
93210–42101
.O-RING
.ANILLO O
1
27
93101–11M44
.OIL SEAL
.SELLO ACEITE
2
