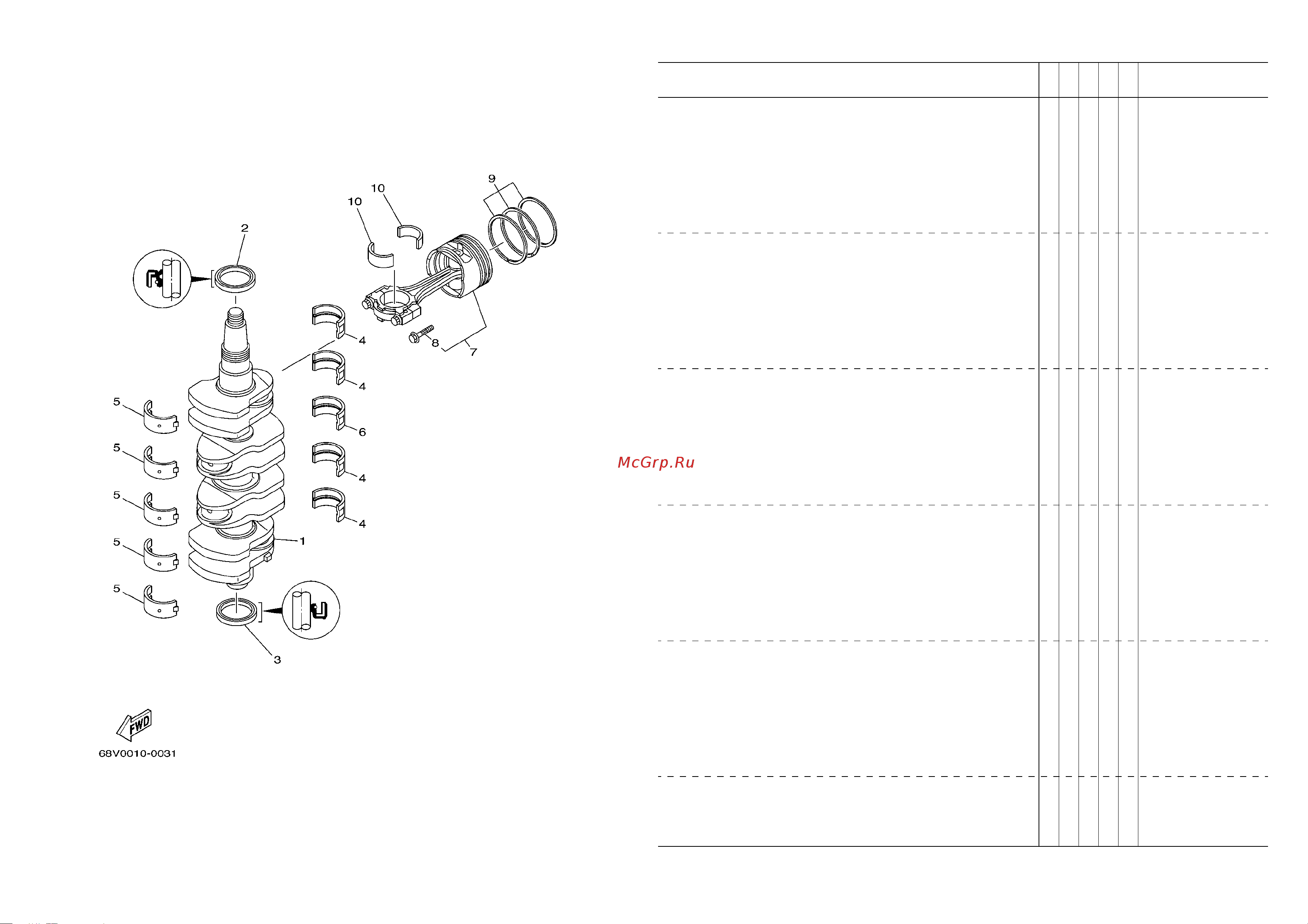

FIG. 3 CRANKSHAFT & PISTON VILEBREQUIN & PISTON
REF.
NO.
PART NO.
N° PIECES
DESCRIPTION
DESCRIPTION
68V9
68W9
REMARKS
REMARQUES
1
68V–11411–00
CRANKSHAFT
VILEBREQUIN COMPLET
11
2
93102–48009
OIL SEAL
JOINT SPY
11
3
93101–48002
OIL SEAL
JOINT SPY
11
4
67F–11416–00
PLANE BEARING, CRANKSHAFT 1
COUSSINET DE VILEBREQUIN 1
4 4 UR GREEN
UR VERT
67F–11416–10
PLANE BEARING, CRANKSHAFT 1
COUSSINET DE VILEBREQUIN 1
4 4 UR BLUE
UR BLEU
67F–11416–20
PLANE BEARING, CRANKSHAFT 1
COUSSINET DE VILEBREQUIN 1
4 4 UR RED
UR RED
5
67F–11417–00
PLANE BEARING, CRANKSHAFT 2
COUSSINET DE VILEBREQUIN 2
5 5 UR YELLOW
UR JAUNE
67F–11417–10
PLANE BEARING, CRANKSHAFT 2
COUSSINET DE VILEBREQUIN 2
5 5 UR GREEN
UR GREEN
67F–11417–20
PLANE BEARING, CRANKSHAFT 2
COUSSINET DE VILEBREQUIN 2
5 5 UR BLUE
UR BLUE
67F–11417–30
PLANE BEARING, CRANKSHAFT 2
COUSSINET DE VILEBREQUIN 2
5 5 UR RED
UR RED
6
67F–11418–00
PLANE BEARING, CRANKSHAFT 3
COUSSINET DE VILEBREQUIN 3
1 1 UR GREEN
UR GREEN
67F–11418–10
PLANE BEARING, CRANKSHAFT 3
COUSSINET DE VILEBREQUIN 3
1 1 UR BLUE
UR BLUE
67F–11418–20
PLANE BEARING, CRANKSHAFT 3
COUSSINET DE VILEBREQUIN 3
1 1 UR RED
UR RED
7
68V–W1164–02
PISTON/CON-ROD ASSY STD
PISTON/BIELLE COMPLETTE (STD)
44
68V–W1164–12
PISTON/CON-ROD ASSY(0.25MM OS)
PISTON/BIELLE COMPLETTE:0.25MM
44 AP
AP
8
K1C–A3275–00
.BOLT, CONNECTING ROD
.BOULON, BIELLE
22
9
6D8–11603–01
PISTON RING SET (STD)
JEU DE SEGMENTS (STD)
44
6D8–11604–01
PISTON RING SET (0.25MM O/S)
JEU DE SEGMENTS (0.25MM O/S)
44 AP
AP
10
68V–11656–00
PLANE BEARING, CONNECTING ROD
ROULEMENT DE BIELLE
8 8 UR YELLOW
UR YELLOW
68V–11656–10
PLANE BEARING, CONNECTING ROD
ROULEMENT DE BIELLE
8 8 UR GREEN
UR GREEN
68V–11656–20
PLANE BEARING, CONNECTING ROD
ROULEMENT DE BIELLE
8 8 UR BLUE
UR BLUE
68V–11656–30
PLANE BEARING, CONNECTING ROD
ROULEMENT DE BIELLE
8 8 UR RED
UR RED
