Yamaha F115 AETL [8/82] Fig 1 top cowling capot superieur
![Yamaha F115 AETL [8/82] Fig 1 top cowling capot superieur](/views2/1241090/page8/bg8.png)
2

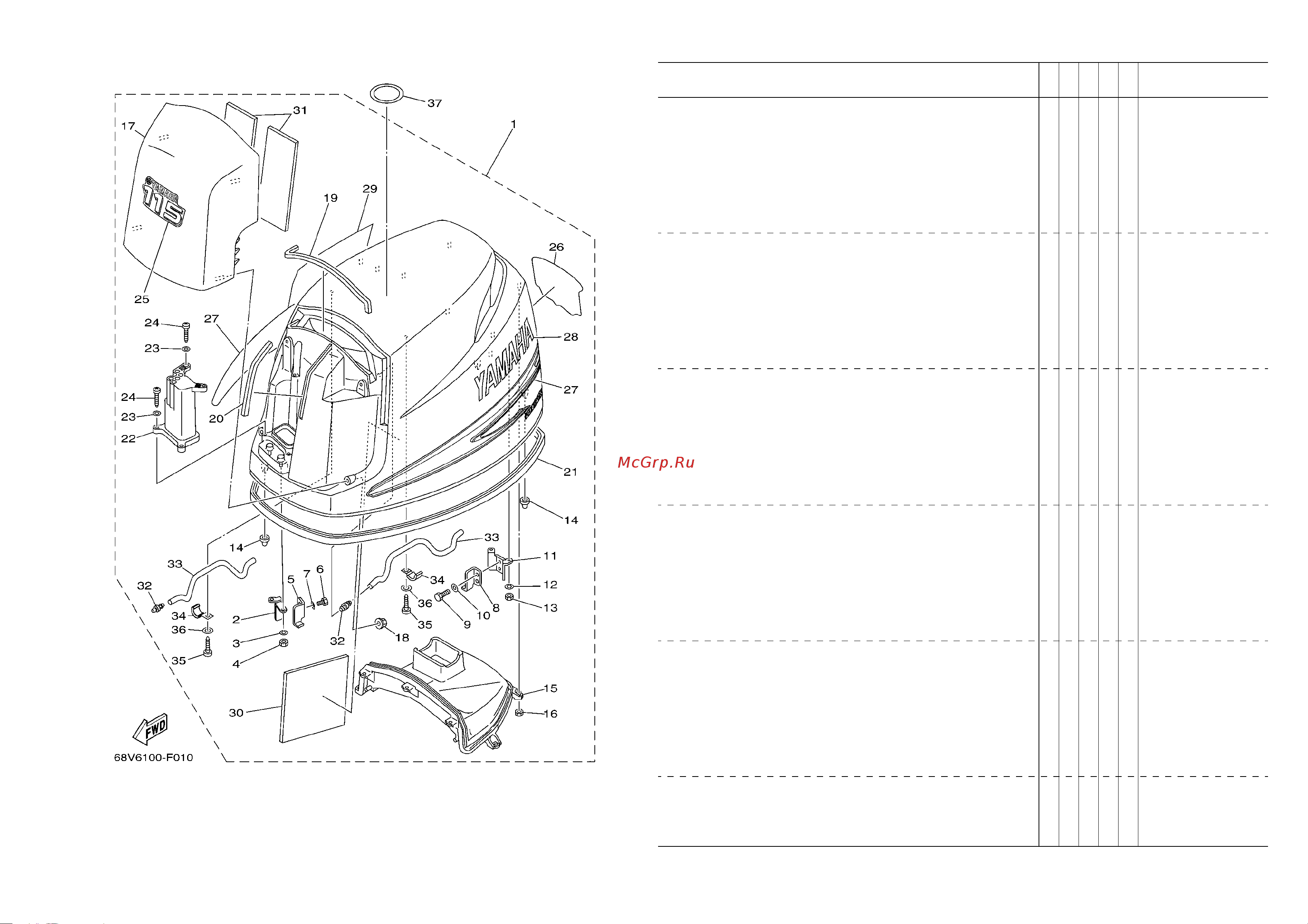

FIG. 1 TOP COWLING CAPOT SUPERIEUR
REF.
NO.
PART NO.
N° PIECES
DESCRIPTION
DESCRIPTION
68V9
68W9
REMARKS
REMARQUES
28
68V–42681–10
.MARK, COWLING
.ADHESIF, CAPOT
11
29
68V–42682–10
.MARK, COWLING
.ADHESIF, CAPOT
11
30
68V–42617–00
.DAMPER, FORM
.BOURRELET, CAOUTCHOUC
11
31
68V–42619–00
.DAMPER, FORM
.BOURRELET, CAOUTCHOUC
22
32
6BL–44391–00
.NIPPLE, HOSE
.RACCORD D'ESSENCE
22
33
90445–10M18
.HOSE (L295)
.DURITE (L295)
22
34
90465–08M63
.CLAMP
.BRIDE
22
35
97780–50620
.SCREW, TAPPING
.VIS, TETE BOMBEE
22
36
92990–05200
.WASHER, PLAIN
.RONDELLE, PLATE
22
37
67F–13434–10
LABEL, CAUTION
ETIQUETTE, ATTENTION
11
