Yamaha F115 AETL [18/82] Remarks remarques
![Yamaha FL115A [18/82] Remarks remarques](/views2/1241090/page18/bg12.png)
12

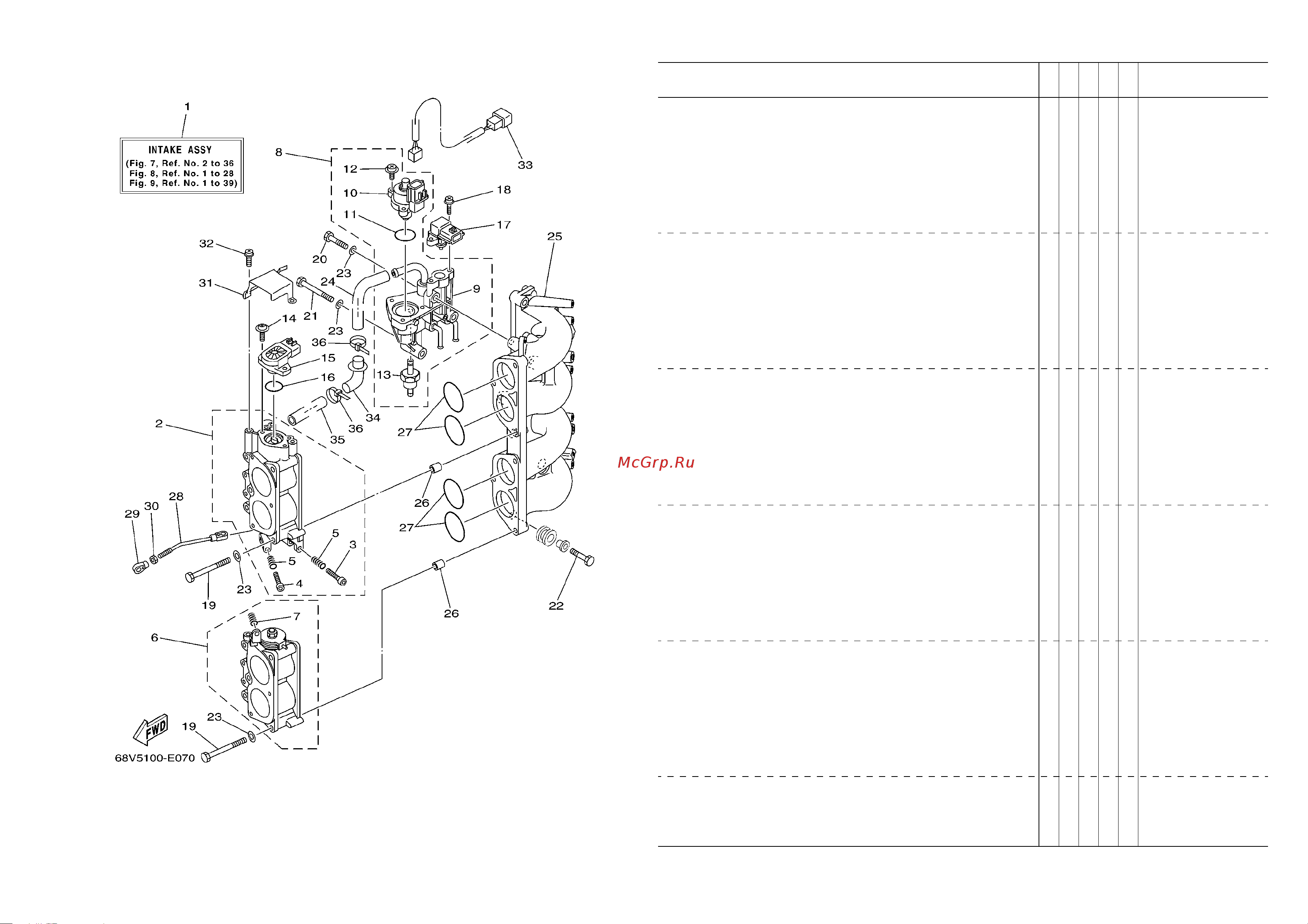

FIG. 7 INTAKE 2 ADMISSION 2
REF.
NO.
PART NO.
N° PIECES
DESCRIPTION
DESCRIPTION
68V9
68W9
REMARKS
REMARQUES
1
68V–14200–21
INTAKE ASSY
ADMISSION (ENS.)
11
2
68V–13751–01
BODY, THROTTLE 1
CARTER 1
11
3
68V–14323–00
.SCREW, AIR ADJUSTING
.VIS DE DOSEUR D'AIR
11
4
68V–14321–00
.SCREW, THROTTLE
.VIS, ACCELERATEUR
11
5
68V–14331–00
.SPRING, THROTTLE VALVE
.RESSORT, BOISSEAU
22
6
68V–13752–01
BODY, THROTTLE 2
CARTER 2
11
7
68V–14331–00
.SPRING, THROTTLE VALVE
.RESSORT, BOISSEAU
11
8
68V–13105–00
CONTROL VALVE ASSY
SOUPAPE DE CONTROLE COMPLET
11
9
68V–14960–00
.BODY ASSY
.CARTER (ENS.)
11
10
68V–1312A–00
.VALVE, CONTROL
.EMBLEME, YAMAHA
11
11
68V–13473–00
.O-RING
.JOINT TORIQUE
11
12
68V–81146–01
.SCREW 2
.VIS 2
33
13
68V–14511–00
.FILTER ASSY
.ENS FILTRE
11
14
68V–81145–01
SCREW 1
VIS 1
22
15
68V–85885–00
THROTTLE SENSOR ASSY
SENSITOMETRE (ENS.)
11
16
68V–8182L–00
O-RING 1
JOINT TORIQUE 1
11
17
68V–82380–00
SENSOR, PRESSURE
SONDE DE PRESSION
11
18
68V–81147–00
SCREW 3
VIS 3
22
19
68V–14496–00
BOLT
BOULON
66
20
68V–13574–00
BOLT 2
BOULON 2
11
21
68V–13573–00
BOLT 1
BOULON 1
22
22
68V–14777–00
BOLT
BOULON
33
23
68V–14475–00
WASHER
RONDELLE
99
24
68V–14419–10
PIPE
DURITE
11
25
68V–13641–00–94
MANIFOLD 1
TUBULURE 1
11
26
99530–10114
PIN, DOWEL
GOUJON, D'ASSEMBLAGE
44
27
93210–48MG8
O-RING
JOINT TORIQUE
44
