![Yamaha F115 AETL [7/82] Fig 1 top cowling capot superieur](/img/pdf.png)
Yamaha F115 AETL [7/82] Fig 1 top cowling capot superieur
![Yamaha F115 AETL [7/82] Fig 1 top cowling capot superieur](/views2/1241090/page7/bg7.png)
1

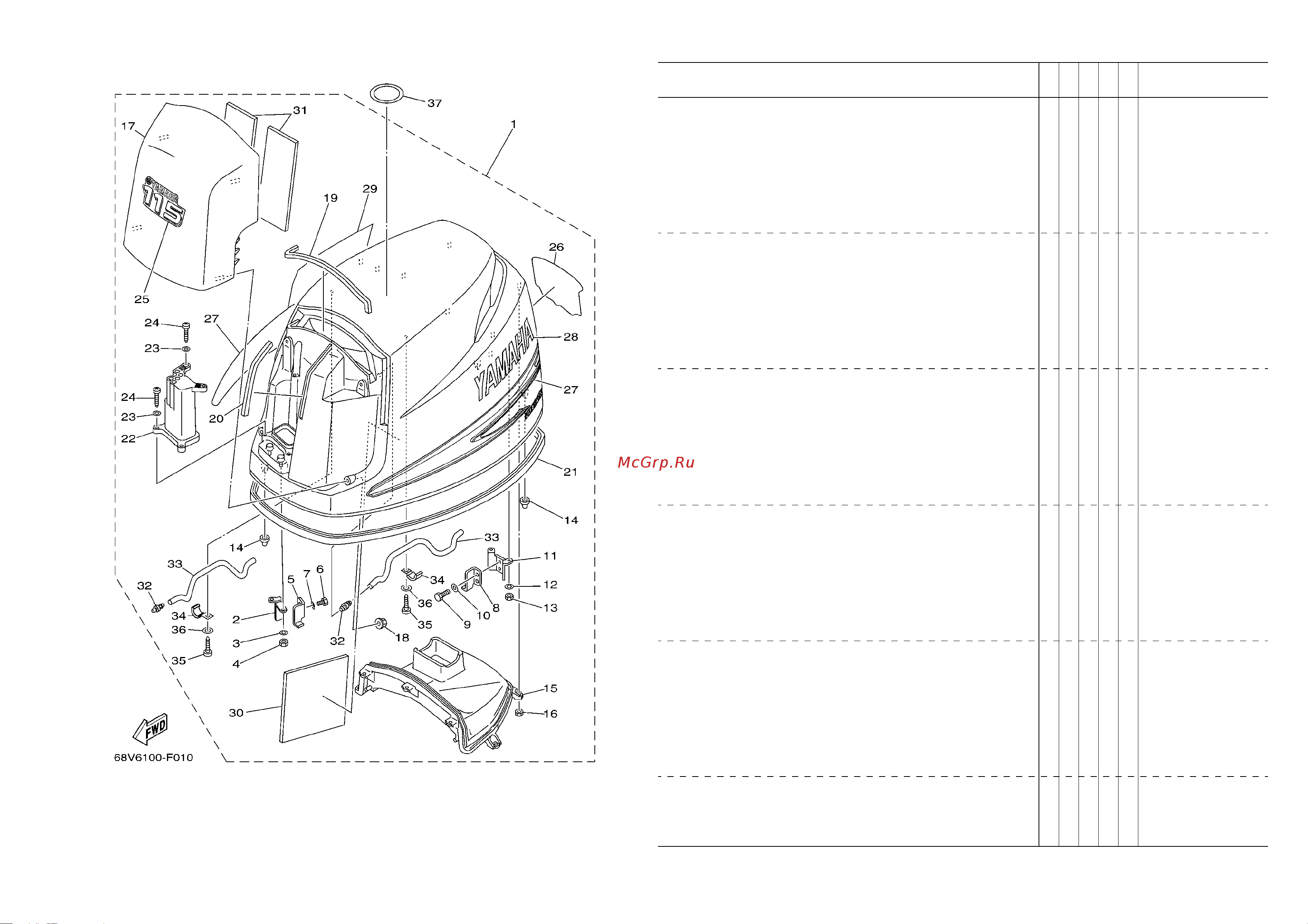

FIG. 1 TOP COWLING CAPOT SUPERIEUR
REF.
NO.
PART NO.
N° PIECES
DESCRIPTION
DESCRIPTION
68V9
68W9
REMARKS
REMARQUES
1
68V–42610–12–8D
TOP COWLING ASSY
CAPOT (ENS.)
11
2
68V–42647–00
.HOLDER, CLAMP BAND
.SUPPORT, SANDOW DE SERRAGE
11
3
92990–06100
.WASHER, SPRING
.RONDELLE, GROWER
22
4
95380–06600
.NUT, HEXAGON
.ECROU
22
5
68V–42651–00
.HOOK
.CROCHET
11
6
97095–06012
.BOLT
.BOULON
22
7
92995–06600
.WASHER
.RONDELLE
22
8
68V–42652–00
.HOOK
.CROCHET
11
9
97095–06012
.BOLT
.BOULON
22
10
92995–06600
.WASHER
.RONDELLE
22
11
67F–42649–00
.HOLDER, CLAMP BAND
.SUPPORT, SANDOW DE SERRAGE
11
12
92990–06100
.WASHER, SPRING
.RONDELLE, GROWER
22
13
95380–06600
.NUT, HEXAGON
.ECROU
22
14
67F–42662–00
.DAMPER
.AMORTISSEUR
33
15
68V–42613–00
.MOLDING, AIR DUCT
.MANCHON A AIR
11
16
95380–06600
.NUT, HEXAGON
.ECROU
77
17
68V–42612–00–8D
.AIR DUCT, TOP COWLING
.FLASQUE, PLATEAU D'AVANCE
11
18
90179–06M28
.NUT
.ECROU
44
19
68V–42628–00
.SEAL
.JOINT
11
20
68V–42718–00
.RUBBER, SEAL 3
.JOINT
11
21
68V–42615–00
.SEAL
.JOINT
11
22
68V–42632–00
.WINDOW
.FENETRE
11
23
92990–05200
.WASHER, PLAIN
.RONDELLE, PLATE
44
24
97780–50625
.SCREW, TAPPING
.VIS, TETE BOMBEE
44
25
68V–42677–10
.GRAPHIC, FRONT
.ADHESIF, AVANT
11
26
68V–42678–10
.GRAPHIC, REAR
.ADHESIF, ARRIERE
11
27
68V–W0070–10
.GRAPHIC SET
.JEU DIEMBLEMES
11
