3

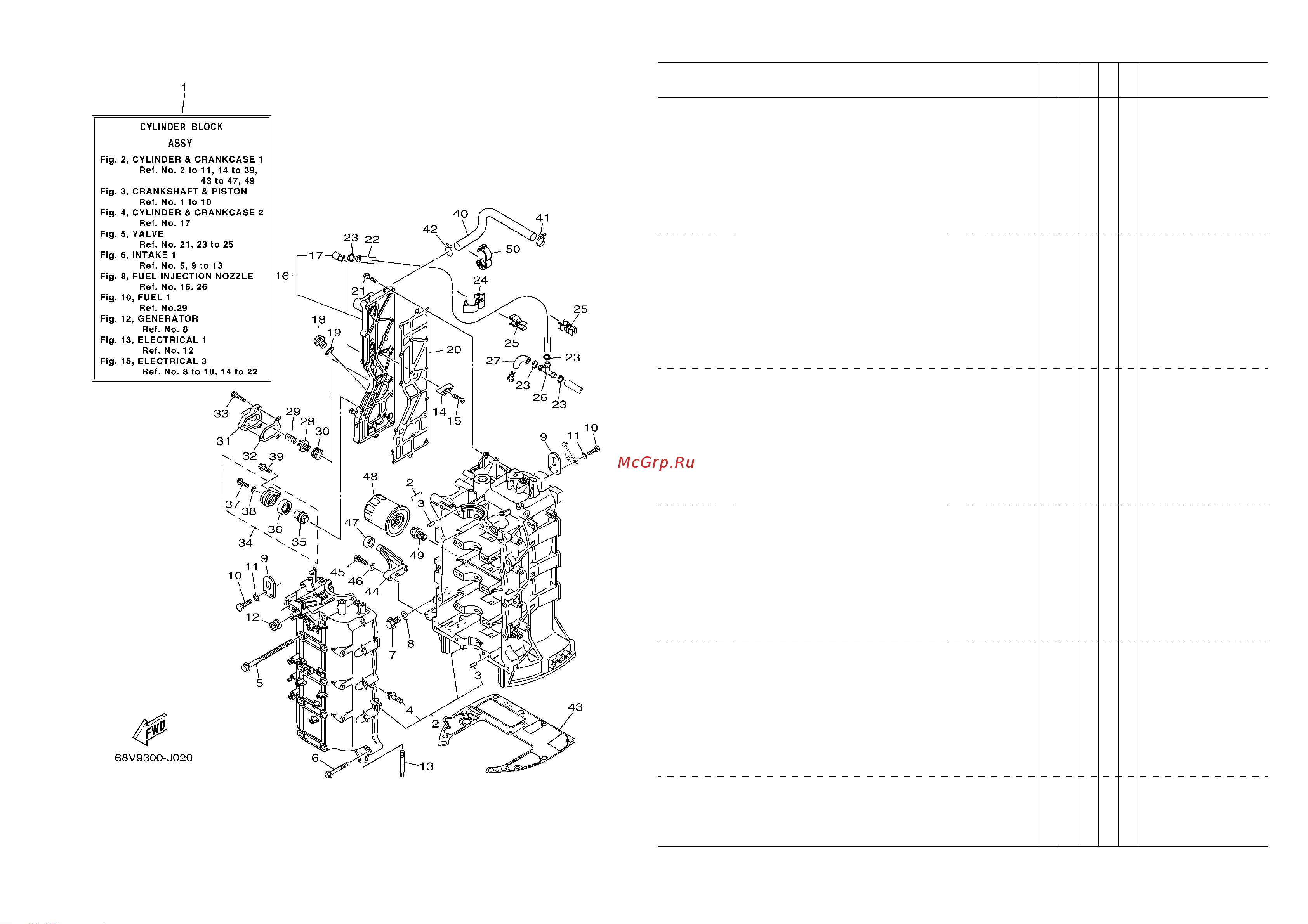

FIG. 2 CYLINDER & CRANKCASE 1 CYLINDRE & CARTER 1
REF.
NO.
PART NO.
N° PIECES
DESCRIPTION
DESCRIPTION
68V9
68W9
REMARKS
REMARQUES
1
68V–W009B–08–9S
CYLINDER BLOCK ASSY
CYLINDRE GROUPE (ENS.)
11
2
68V–15100–02–9S
CRANKCASE ASSY
CARTER DE MOTEUR COMPLET
11
3
93606–12019
.PIN, DOWEL
.GOUPILLE
10 10
4
68V–44581–01
.BOLT
.BOULON
11
5
90119–10M88
BOLT, WITH WASHER
BOULON, AVEC RONDELLE
10 10
6
90119–08M66
BOLT, WITH WASHER
BOULON, AVEC RONDELLE
10 10
7
90340–14M06
PLUG, STRAIGHT SCREW
PLOT, FILETE DROIT
11
8
90430–14115
GASKET
JOINT
11
9
62Y–11119–00
HANGER, ENGINE
ANNEAU, LEVAGE
22
10
97095–06020
BOLT
BOULON
44
11
92995–06600
WASHER
RONDELLE
44
12
90480–12072
GROMMET
PASSE-FIL
11
13
67F–15142–00
GUIDE 1
GUIDE 1
22
14
6E5–11325–00
ANODE
ANODE
33
15
98780–04016
SCREW, FLAT HEAD
VIS A TETE FRAISEE
33
16
6D8–41113–30–9S
OUTER COVER, EXHAUST
COUVERCLE, ECHAPPEMENT
11
17
676–11372–00
.NIPPLE, HOSE
.RACCORD, TUYAU
11
18
90340–18M09
PLUG, STRAIGHT SCREW
PLOT, FILETE DROIT
11
19
90430–18130
GASKET
JOINT
11
20
67F–41114–A2
GASKET, EXHAUST OUTER COVER
JOINT, COUVERCLE D'ECHAPPEMENT
11
21
90119–06MA4
BOLT, WITH WASHER
BOULON, AVEC RONDELLE
18 18
22
68V–42541–00
PIPE 1
TUYAU 1
11
23
90465–11M10
CLAMP
BRIDE
44
24
90464–18004
CLAMP
BRIDE
11
25
90464–10010
CLAMP
BRIDE
22
26
688–24378–00
PIPE, JOINT 3
DURITE RACCORDEMENT 3
11
27
61A–24316–00
PIPE 6
DURITE 6
11
