14

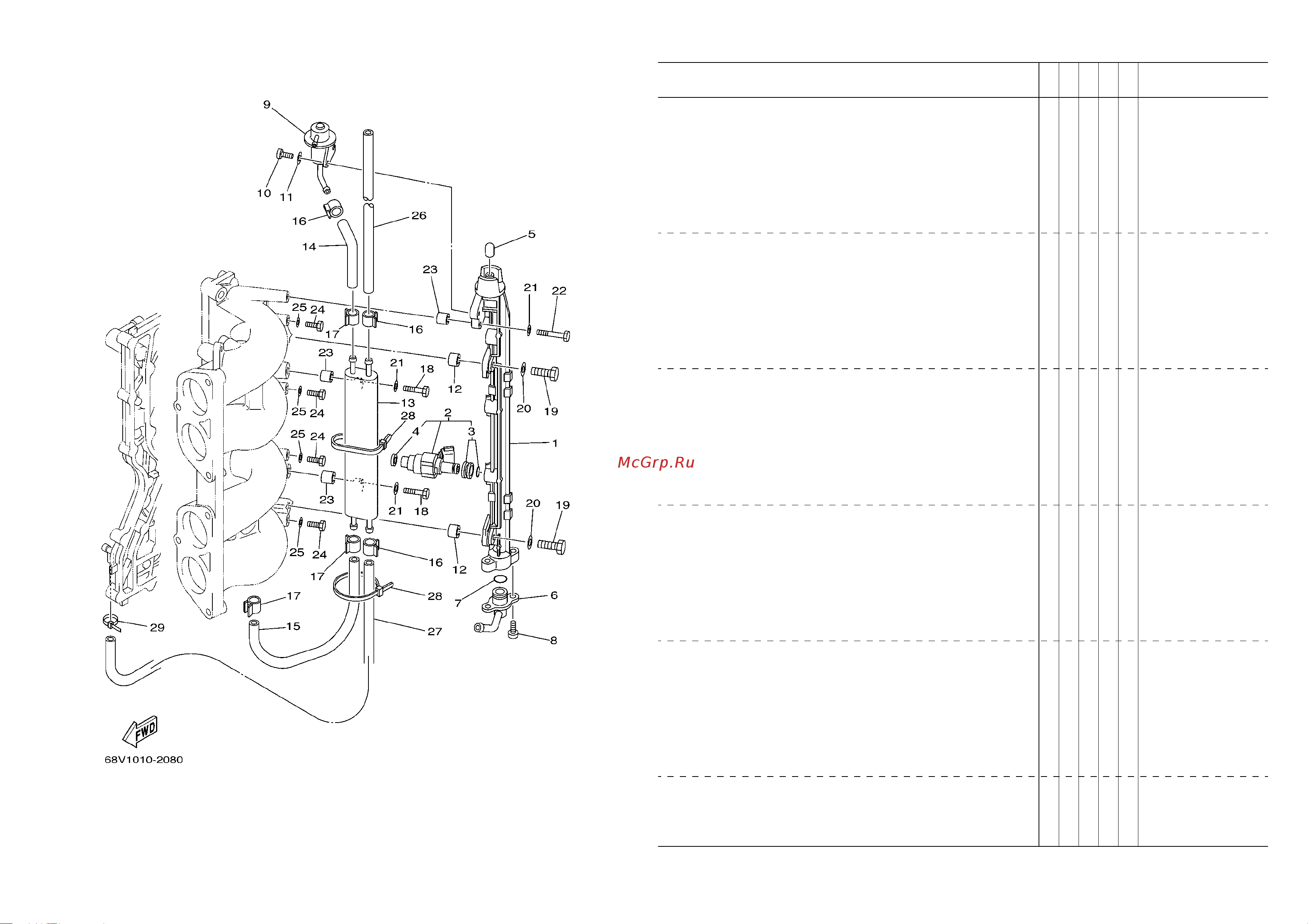

FIG. 8 FUEL INJECTION NOZZLE FUEL INJECTION NOZZLE
REF.
NO.
PART NO.
N° PIECES
DESCRIPTION
DESCRIPTION
68V9
68W9
REMARKS
REMARQUES
1
68V–13160–00
DELIVERY PIPE ASSY 1
ENS. TUBE DE REFOULEMENT 1
11
2
68V–8A360–00
INJECTOR UNIT
INJECTEUR
44
3
68V–1410B–00
.PACKING KIT
.POCHETTE DE JOINTS
11
4
68V–13766–00
.RUBBER, INJECTOR
.RONDELLE CAOUTCHOUC
11
5
68V–14225–00
CAP
COUVERCLE
11
6
68V–13435–00
NIPPLE
RACCORD
11
7
68V–14397–00
O-RING
JOINT TORIQUE
11
8
68V–81147–00
SCREW 3
VIS 3
22
9
68V–13906–01
REGULATOR, PRESSURE
REGULATEUR DE PRESSION
11
10
68V–14565–00
SCREW
VIS
22
11
68V–14356–00
WASHER, SPRING
RONDELLE
22
12
68V–14264–00
COLLAR
COLLERETTE
22
13
69J–21841–02
COOLER
RADIATEUR
11
14
68V–13971–00
PIPE, FUEL 1
TUBE 1, CARBURANT
11
15
68V–13972–00
PIPE, FUEL 2
TUBE 2, CARBURANT
11
16
68V–24519–00
CLIP
JONC
33
17
68V–2411M–00
CLIP
JONC
33
18
68V–14777–00
BOLT
BOULON
22
19
68V–14428–00
BOLT
BOULON
22
20
68V–14475–00
WASHER
RONDELLE
22
21
68V–14357–00
WASHER, PLAIN
RONDELLE PLATE
33
22
68V–14446–00
BOLT
BOULON
11
23
68V–14265–00
COLLAR
COLLERETTE
33
24
97095–06010
BOLT
BOULON
44
25
90430–06014
GASKET
JOINT
44
26
68V–2247A–10
HOSE 1
DURITE 1
11
27
68V–2247B–00
HOSE 2
DURITE 2
11
