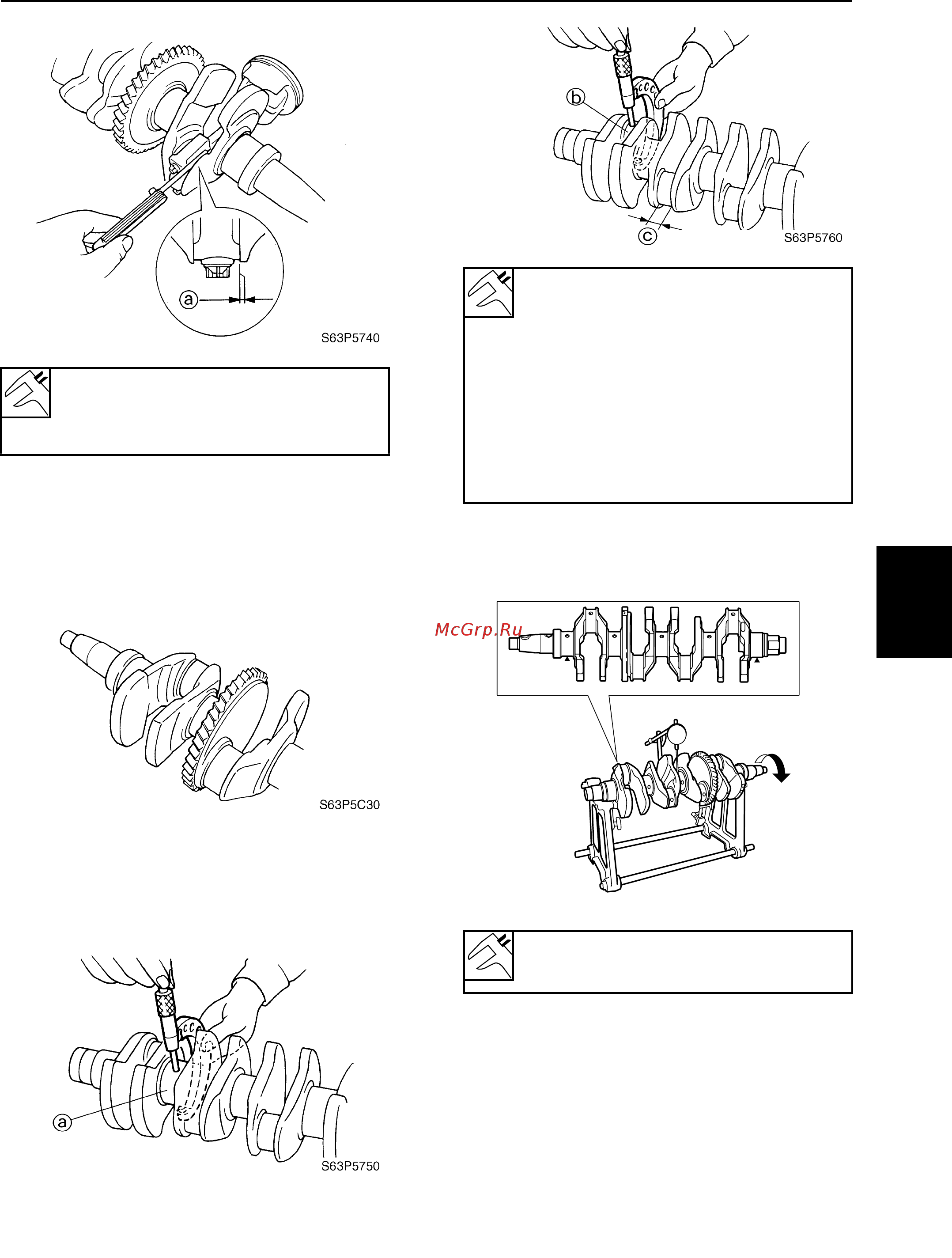

Checking the crankshaft
1. Check the teeth of the crankshaft gear
for cracks or wear. Replace the crank-
shaft if necessary.
2. Measure the crankshaft journal diameter
a
, crankpin diameter
b
, and crankpin
width
c
. Replace the crankshaft if out of
specification.
3. Measure the crankshaft runout. Replace
the crankshaft if out of specification.
Connecting rod big end side
clearance
a
:
0.14–0.31 mm (0.006–0.012 in)
Crankshaft journal diameter
a
:
51.980–52.000 mm
(2.0465–2.0472 in)
Crankpin diameter
b
:
49.980–50.000 mm
(1.9677–1.9685 in)
Crankpin width
c
:
22.00–22.10 mm
(0.8661–0.8701 in)
Crankshaft runout limit:
0.03 mm (0.0012 in)
