Yamaha F150 [162/313] Disassembling the drive shaft housing
![Yamaha F150 [162/313] Disassembling the drive shaft housing](/views2/1241096/page162/bga2.png)
LOWR
Lower unit
6-17
63P3F11

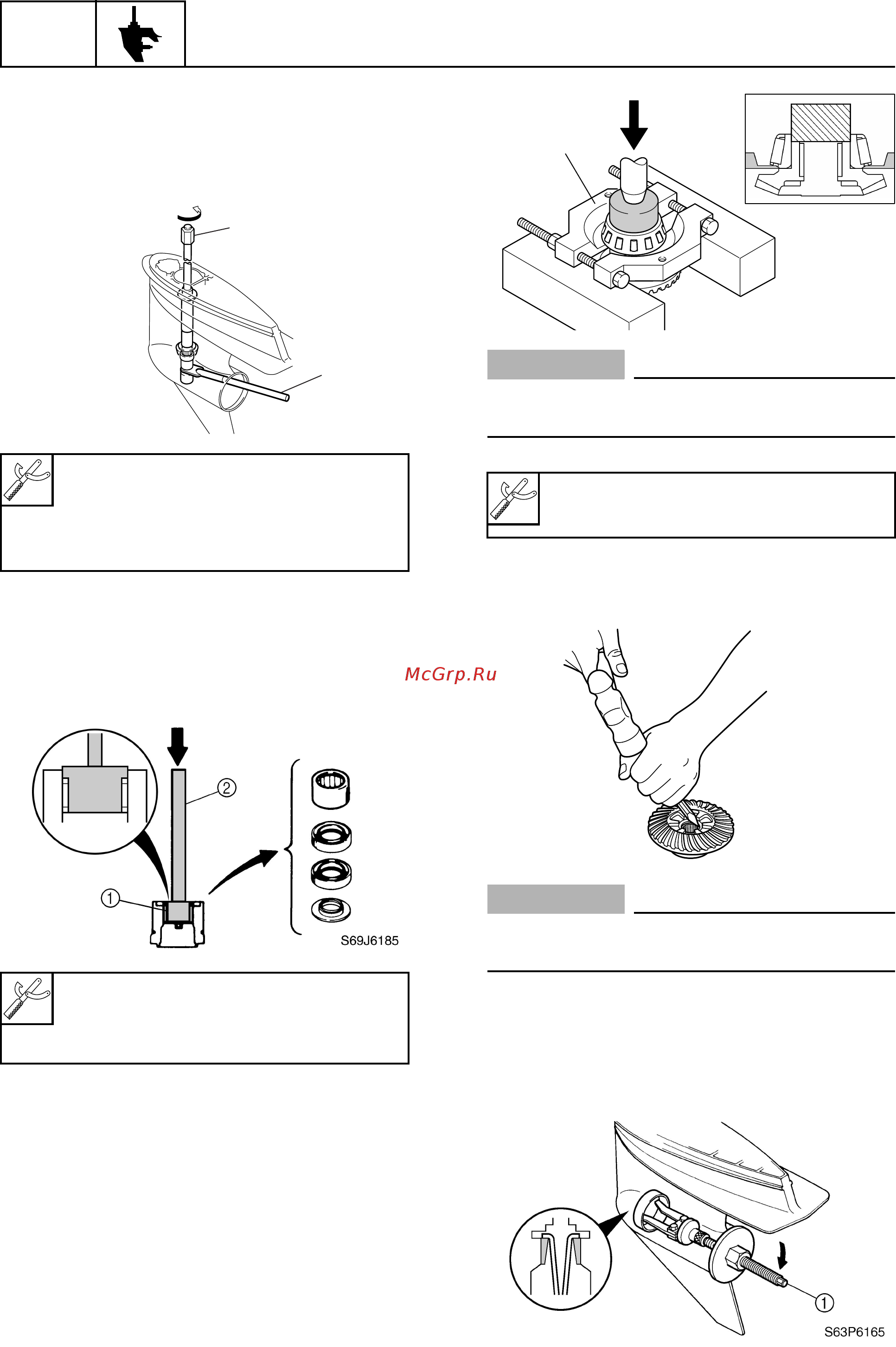

Removing the drive shaft
1. Remove the drive shaft, drive shaft hous-
ing, and pinion, and then pull out the for-
ward gear.
Disassembling the drive shaft
housing
1. Remove the cover, oil seals, and needle
bearing.
Disassembling the forward gear
1. Remove the taper roller bearing from the
forward gear using a press.
CAUTION:
Do not reuse the bearing, always replace
it with a new one.
2. Remove the needle bearings from the
forward gear using a chisel.
CAUTION:
Do not reuse the bearing, always replace
it with a new one.
Disassembling the lower case
1. Remove the taper roller bearing outer
race and shim(s).
Drive shaft holder 6
1
: 90890-06520
Pinion nut holder
2
:
New: 90890-06715
Current: 90890-06505
Needle bearing attachment
1
:
90890-06610
Driver rod L3
2
: 90890-06652
S68S6360J
1
2
Bearing separator
1
: 90890-06534
S69J6186
1
S68S6160
