63P3F11
6-56
1
2
3
4
5
6
7
8
9
NOTE:

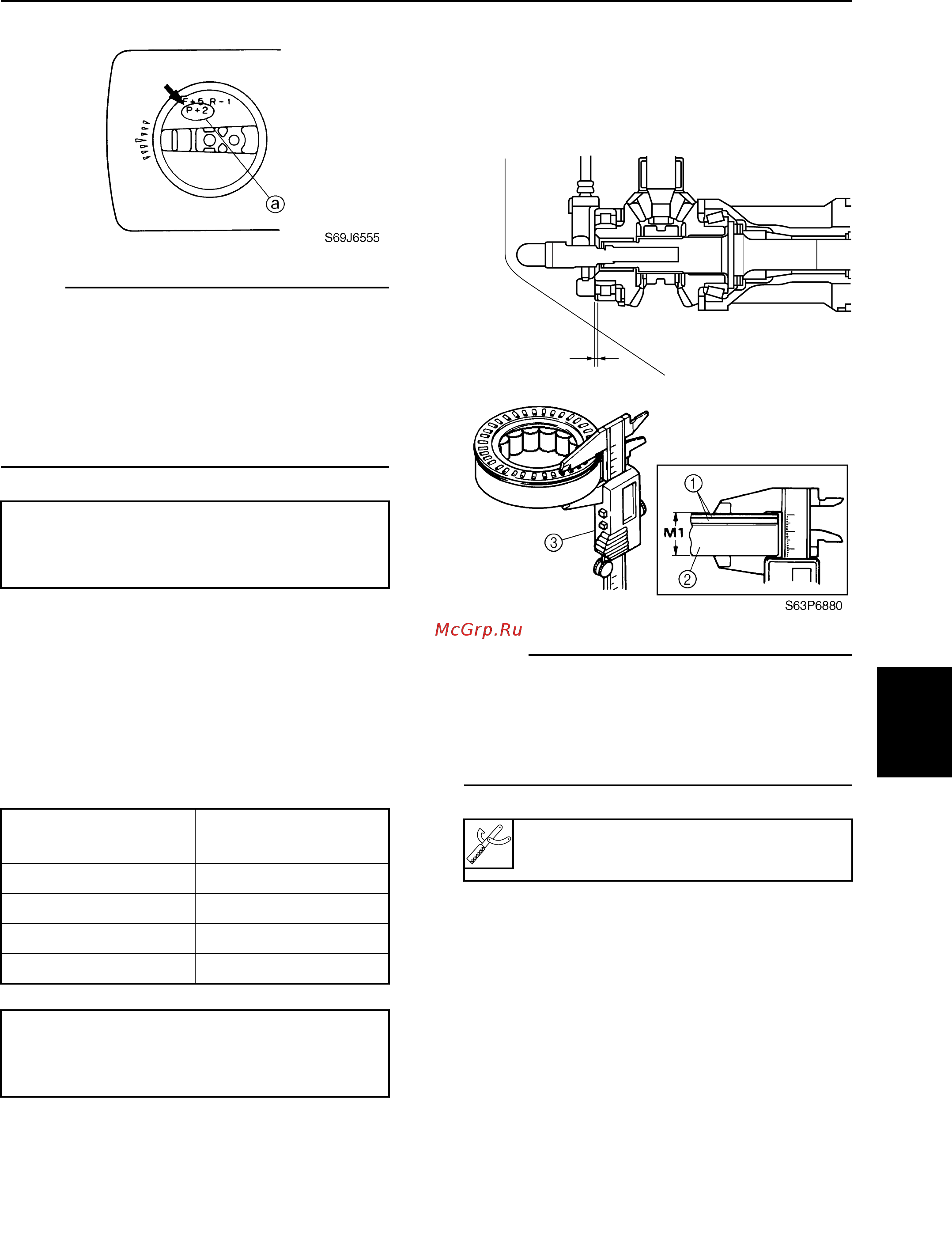

“P” is the deviation of the lower case dimen-
sion from standard. The “P” mark
a
is
stamped on the trim tab mounting surface of
the lower case in 0.01 mm units. If the “P”
mark is unreadable, assume that “P” is zero
and check the backlash when the unit is
assembled.
Example:
If “M3” is 46.68 mm and “M4” is 32.49 mm
and “P” is (–5), then
T3 = 80.00 + (–5)/100 – 46.68 – 32.49 mm
= 80.00 – 0.05 – 46.68 – 32.49 mm
= 0.78 mm
6. Select the pinion shim(s) (T3) as follows.
Example:
If “T3” is 0.53 mm, then the pinion shim is
0.52 mm.
If “T3” is 0.78 mm, then the pinion shim is
0.75 mm.
Selecting the reverse gear shims
1. Turn the thrust bearing
1
two or three
times to seat the roller bearing
2
, and
then measure the bearing height (M1) as
shown.
NOTE:
• Select the shim thickness (T1) by using the
specified measurement(s) and the calcula-
tion formula.
• Measure the roller bearing at three points to
find the height average.
Calculation formula:
Pinion shim thickness (T3) =
80.00 + P/100 – M3 – M4
Calculated numeral
at 1/100 place
Rounded numeral
1, 2 0
3, 4, 5 2
6, 7, 8 5
9, 10 8
Available shim thicknesses:
0.10, 0.12, 0.15, 0.18, 0.30, 0.40, and
0.50 mm
Digital caliper
3
: 90890-06704
S63P6760
T1
Shimming (counter rotation model)
