GEN
INFO
General information
1-15
63P3F11
Fuel system

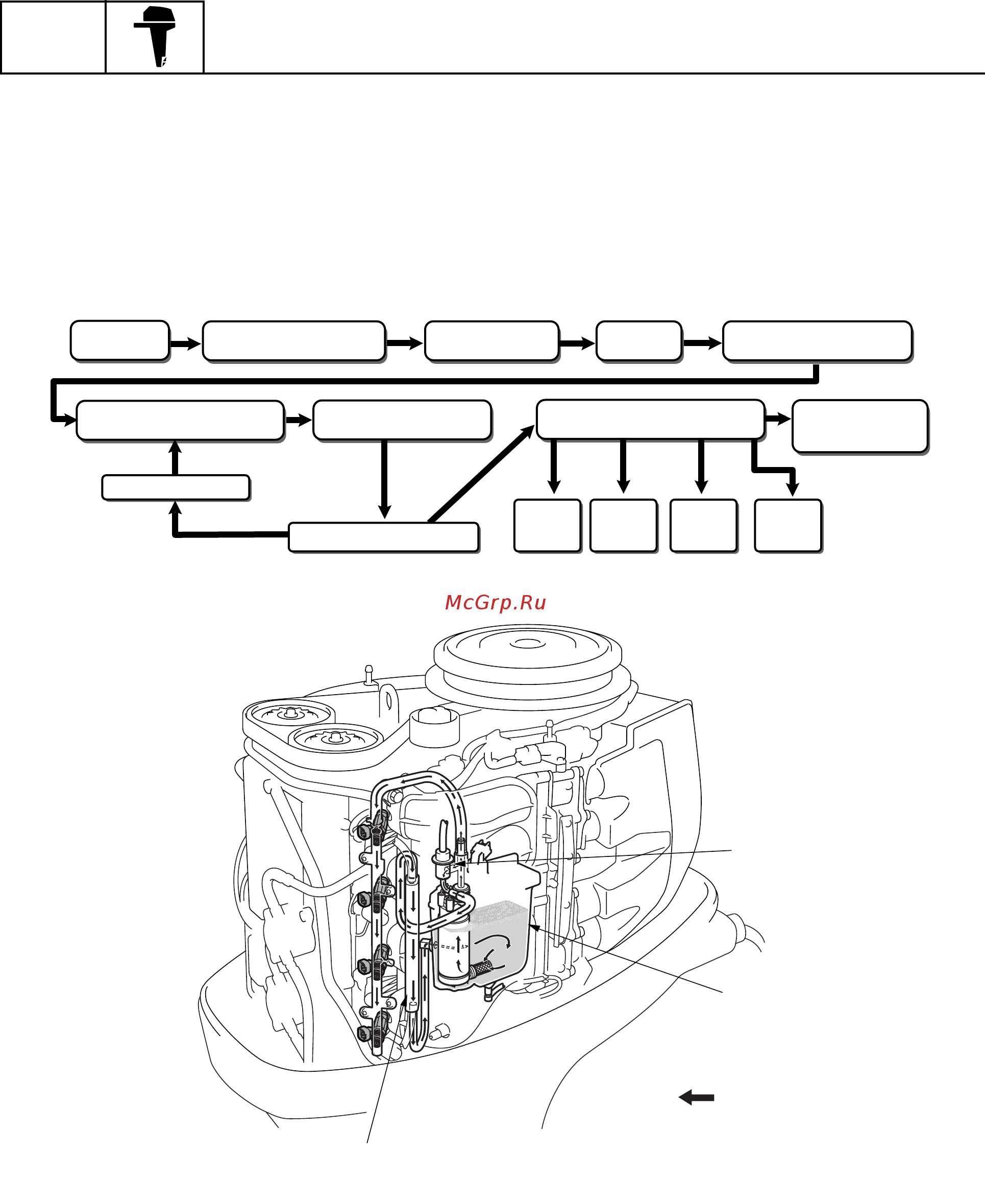

A fuel pressure regulator is incorporated onto the outlet of the electric fuel pump to obtain a compact
design and simple fuel delivery.
Fuel discharged from the pressure regulator returns to the vapor separator after being cooled in the
fuel cooler.
The pressure check valve is incorporated onto the fuel rail for easier servicing of the fuel system.
1
Pressure regulator
2
Vapor separator
3
Fuel cooler
È
Fuel flow
S63P1200
Fuel tank
Vapor separator Electric fuel pump Fuel rail
Primer pump
Fuel filter
(69J type)
Pressure
check valve
Fuel cooler
Pressure regulator
Fuel
injector
Fuel
injector
Fuel
injector
Fuel
injector
12
3
4
Fuel filter (fuel tank)
Fuel pump
:
È
3
2
1
