63P3F11
7-42
1
2
3
4
5
6
7
8
9

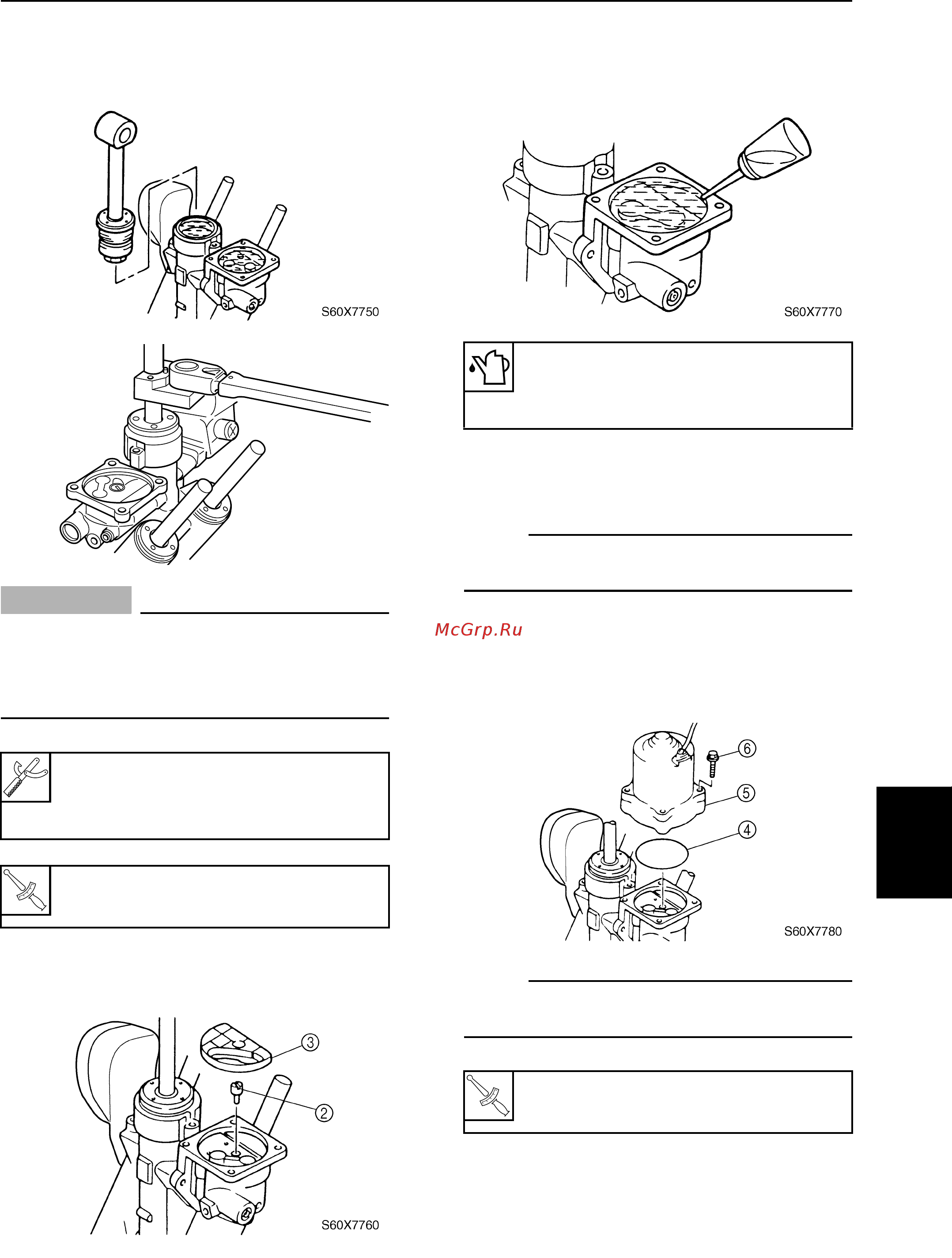

10. Install the tilt piston assembly into the tilt
cylinder, and then tighten the tilt cylinder
end screw to the specified torque.
CAUTION:
• Make sure that the tilt ram is fully
extended when installing it.
• Once installed, never push the tilt ram
down, otherwise fluid can spurt out.
11. Install the joint
2
and gear pump filter
3
into the gear pump housing.
12. Fill the gear pump housing with the rec-
ommended fluid to the correct level as
shown.
13. Remove all of the air bubble using a
syringe or suitable tool.
NOTE:
Turn the joint with a screwdriver to bleed the
gear pump.
14. Install a new O-ring
4
and the power
trim and tilt motor
5
, and then tighten the
bolts
6
to the specified torque.
NOTE:
Align the armature shaft with the recess in
the joint.
Trim and tilt wrench:
New: 90890-06587
Current: 90890-06548
T
R
.
.
Tilt cylinder end screw:
130 N·m (13.0 kgf·m, 96.0 ft·lb)
S63P7060
Recommended power trim and tilt
fluid:
ATF Dexron
II
T
R
.
.
PTT motor mounting bolt:
5 N·m (0.5 kgf·m, 3.7 ft·lb)
Power trim and tilt unit
