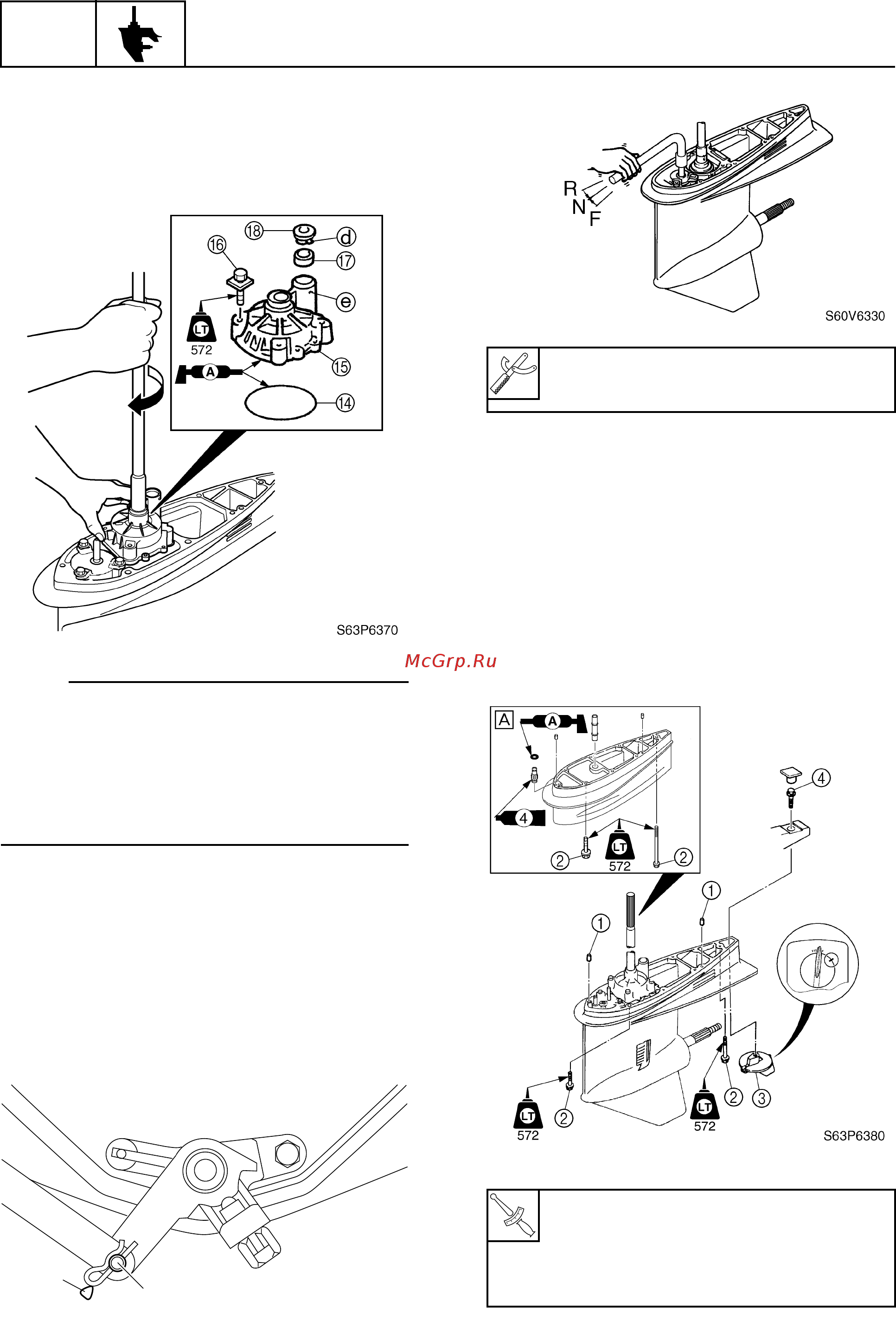

LOWR
Lower unit
6-23
63P3F11
7. Install the new O-ring
D
and pump hous-
ing assembly
E
into the lower case,
tighten the bolts
F
, and then install the
seal
G
and cover
H
.
NOTE:
• When installing the pump housing, apply
grease to the inside of the housing, and
then turn the drive shaft clockwise while
pushing down the pump housing.
• Align the cover projection
d
with the hole
e
in the pump housing.
Installing the lower unit
1. Set the gear shift to the neutral position
at the lower unit.
2. Align the center of the set pin
a
with the
alignment mark
b
on the bottom cowl-
ing.
3. Install the two dowels
1
into the lower
unit.
4. Install the lower unit into the upper case,
and then tighten the lower case mounting
bolts
2
to the specified torque.
5. Install the trim tab
3
to its original posi-
tion, and then tighten the trim tab bolt
4
to the specified torque.
È
X-transom model
S63P3270
b
a
Shift rod push arm: 90890-06052
T
R
.
.
Lower case mounting bolt
2
:
47 N·m (4.7 kgf·m, 34.7 ft·lb)
Trim tab bolt
4
:
42 N·m (4.2 kgf·m, 31.0 ft·lb)
