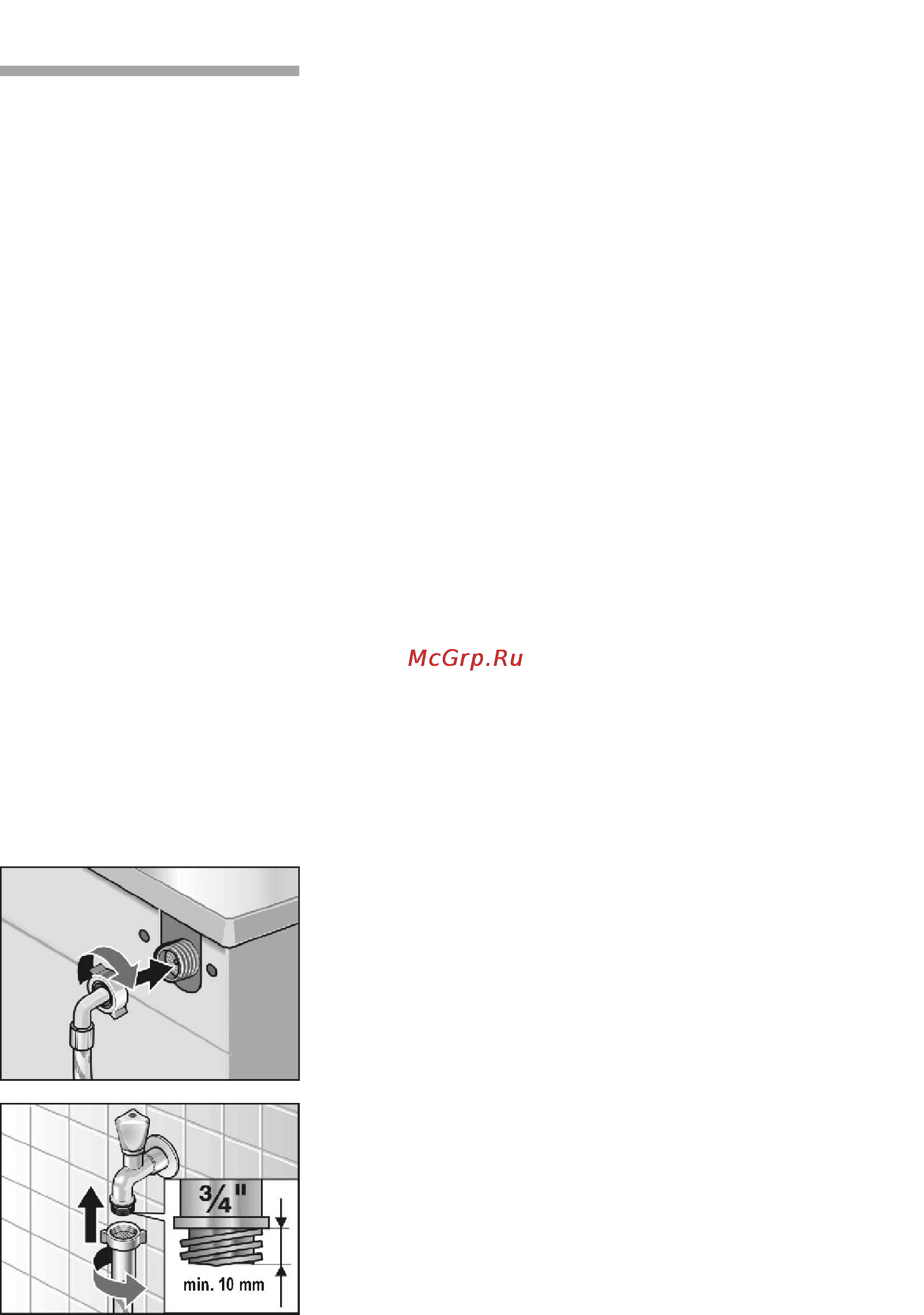

Risk of electric shock Connecting the water To prevent leaks or water damage it is essential to follow the instructions in this chapter Water inlet hose Attention Operate the washer dryer with cold drinking water only Do not connect to the mixer tap of an unpressurised hot water apparatus If in doubt have the appliance connected by a specialist Do not use a used inlet hose Only use the inlet hose supplied or one which was purchased from an authorised specialist dealer The water inlet hose must not be kinked or crushed modified or severed strength is no longer guaranteed Plastic threads must only be tightened by hand Do not remove the strainers from the water supply hose Check the mains water pressure The water pressure should be between 1 and 10 bars when the tap is turned on at least 8 litres of water is discharged per minute If the water pressure is higher install a pressure reducing valve Connect the water supply hose to the rear panel of the washer dryer and to the tap After connecting the water inlet hose Turn on the water tap completely and check connection points for water tightness 59
