ASUS ROG STRIX Z370-G GAMING
2-15
Chapter 2

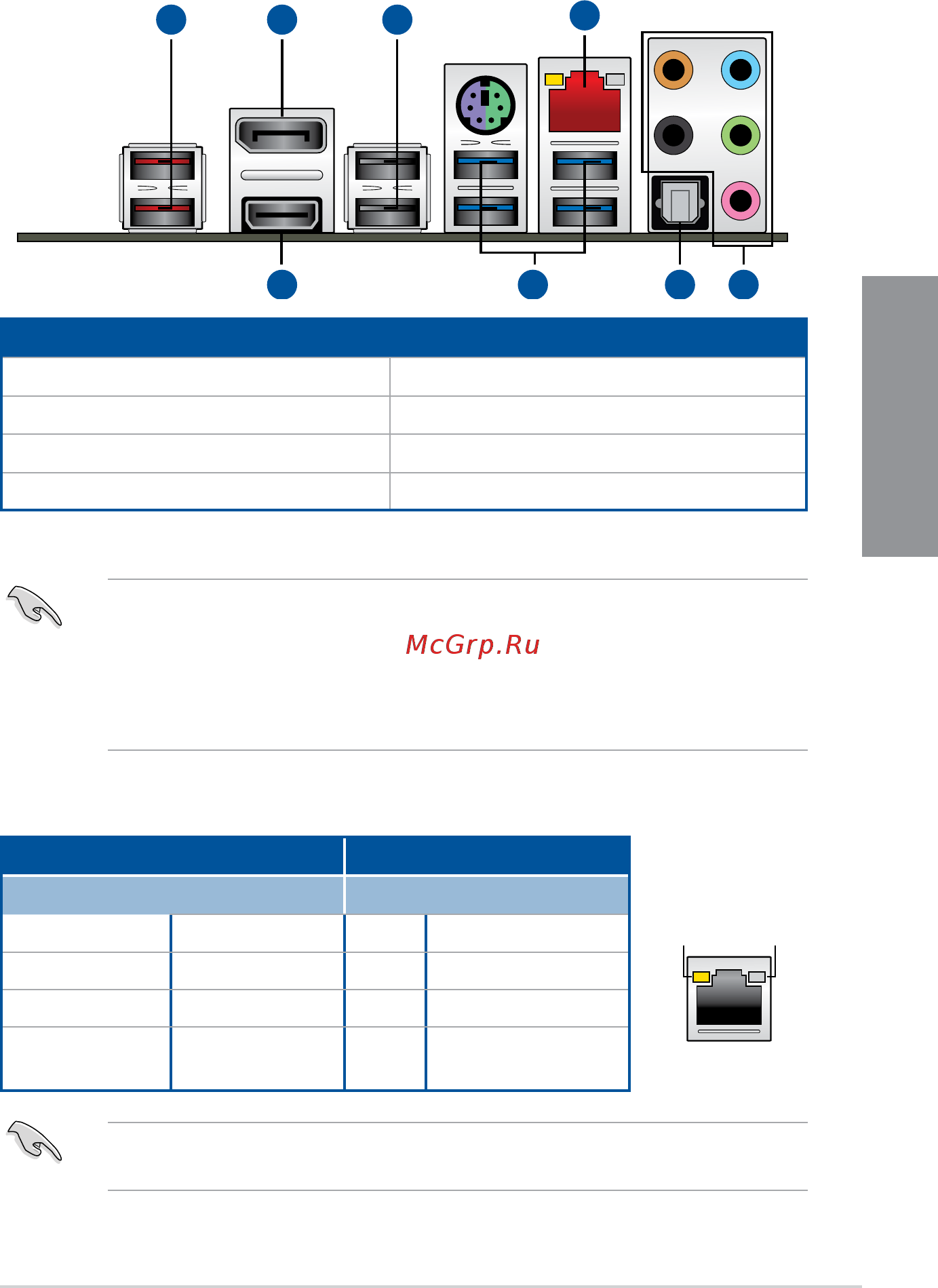

2.2 Motherboard rear and audio connections
2.2.1 Rear I/O connection
Rear panel connectors
1.
USB 3.1 Gen2 Type-A port 5. HDMI 1.4b port
2.
DisplayPort 6. USB 3.1 Gen1 ports
3.
USB 2.0 ports 7. Optical S/PDIF Out port
4. Intel
®
LAN port (LAN1)* 8. Audio I/O ports**
* and ** : Refer to the tables below for LAN port LEDs and audio port definitions.
• ThepluggedUSB3.1Gen1devicemayrunonxHCImodeorEHCImode,depending
on the operating system’s setting.
• USB3.1Gen1devicescanonlybeusedasdatastorageonly.
• WestronglyrecommendthatyouconnectUSB3.1Gen1devicestoUSB3.1Gen1
ports for faster and better performance for your USB 3.1 Gen1 devices.
4
65
1
87
2 3
* LAN ports LED indications
ACT/LINK
LED
SPEED
LED
LAN port
Activity Link LED Speed LED
Status Description Status Description
Off
No link Off 10 Mbps connection
Orange
Linked Orange 100 Mbps connection
Orange (Blinking)
Data activity Green 1 Gbps connection
Orange (Blinking
then steady)
Ready to wake up
from S5 mode
You can disable the LAN controllers in BIOS. Due to hardware design, the LAN1 port’s
LEDs may continue to blink even when disabled.
