Asus ROG STRIX Z370-G GAMING [46/94] Chapter 2

2-16

Chapter 2: Basic Installation

Chapter 2

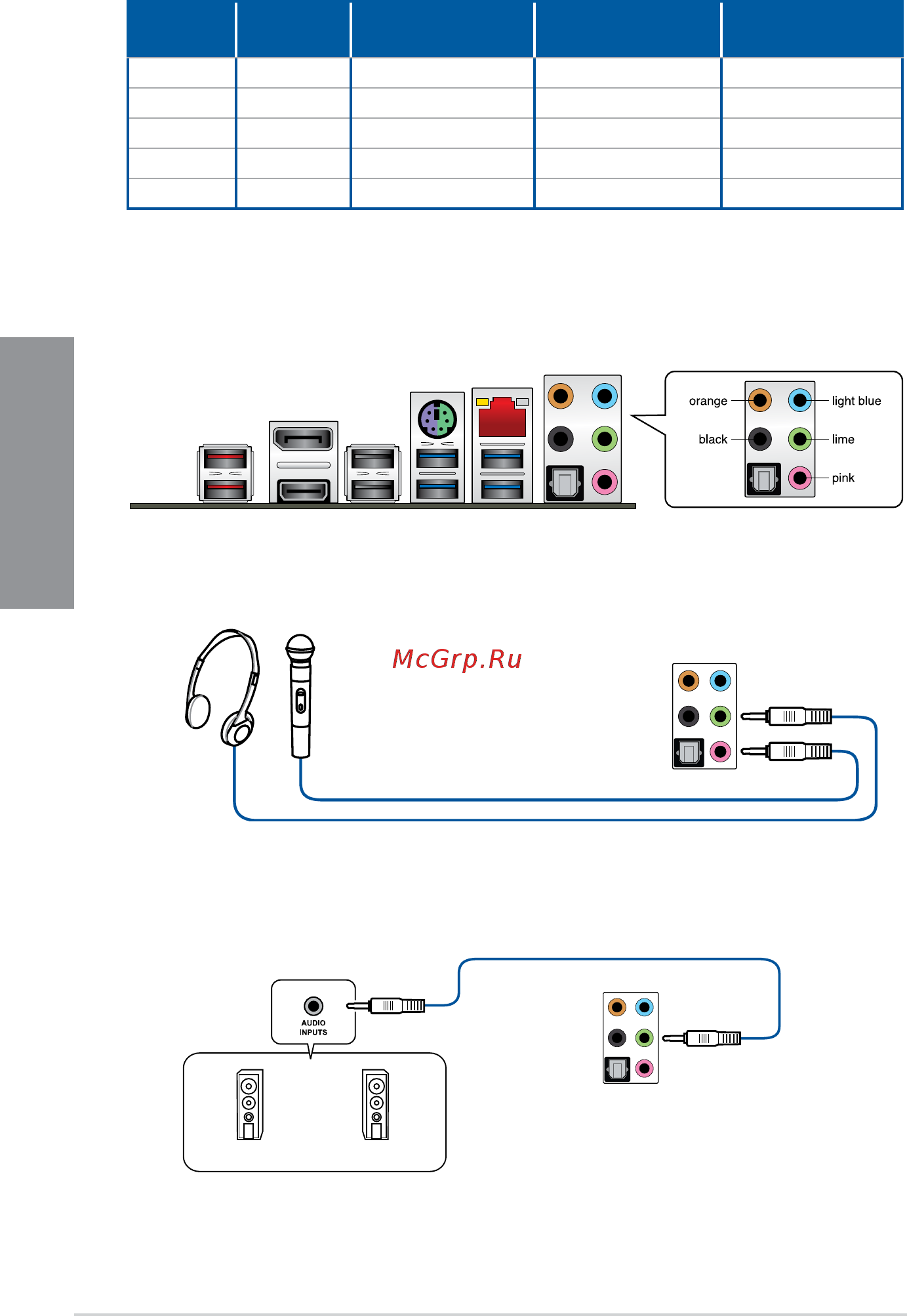

** Audio 2, 4, 6, or 8-channel configuration

Port

Headset

2-channel

4-channel 6-channel 8-channel

Light Blue Line In Line In Line In Side speaker

Lime Line Out Front Speaker Out Front Speaker Out Front Speaker Out

Pink Mic In Mic In Mic In Mic In

Orange – – Center/Subwoofer Center/Subwoofer

Black – Rear Speaker Out Rear Speaker Out Rear Speaker Out

Connect to Headphone and Mic

Connect to Stereo Speakers

2.2.2 Audio I/O connections

Audio I/O ports
