Asus ROG CROSSHAIR VI EXTREME [28/108] Jumper
![Asus ROG CROSSHAIR VI EXTREME [28/108] Jumper](/views2/1307911/page28/bg1c.png)
1-12
Chapter 1: Product Introduction
Chapter 1
1.1.7 Jumper

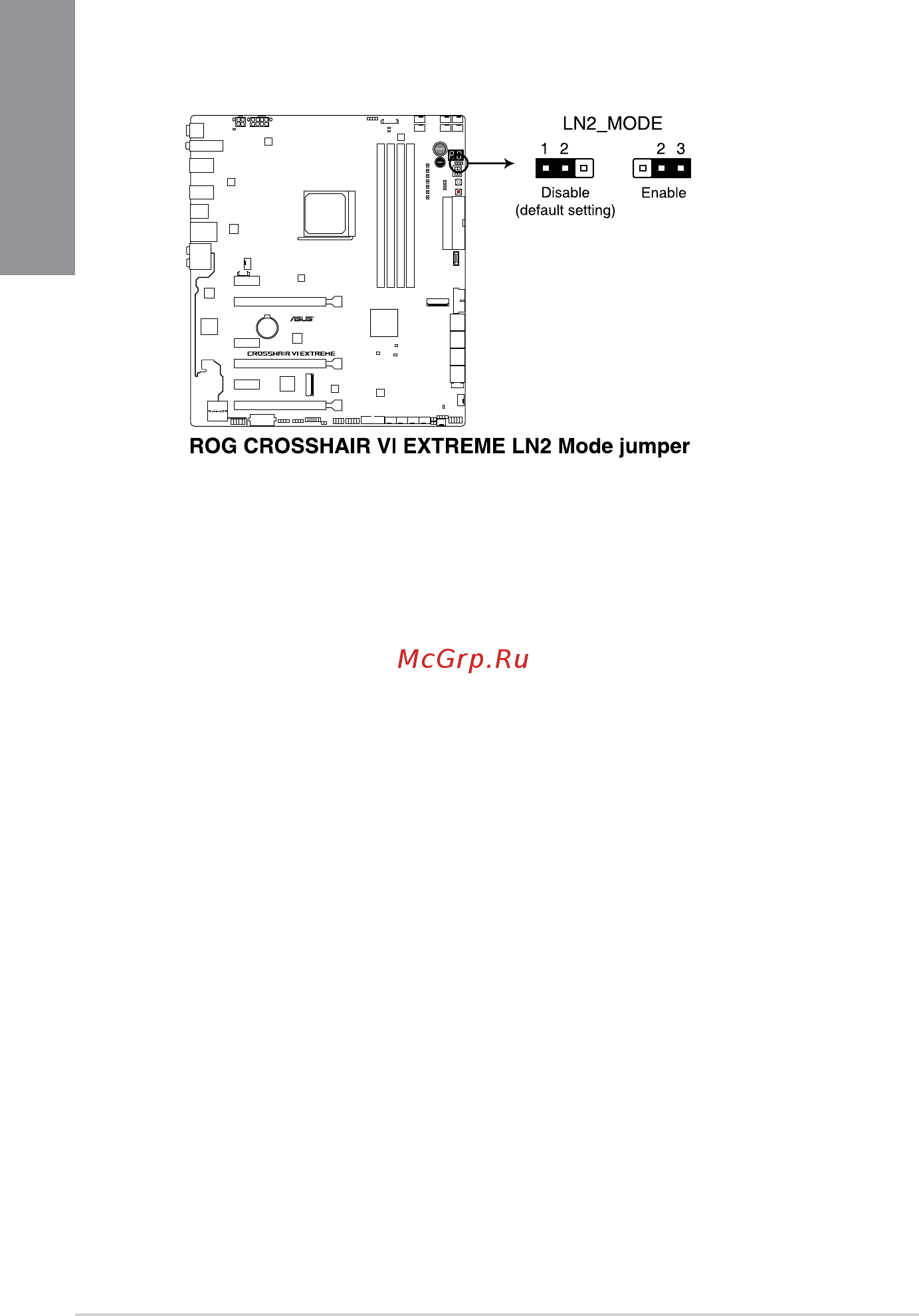

1. LN2 Mode jumper (3-pin LN2_MODE)
WithLN2modeactivated,theROGmotherboardisoptimizedtoremedythecold-boot
bugduringPOSTandhelpthesystembootsuccessfully.
