1.1.9 Internal connectors
1. AMD
®

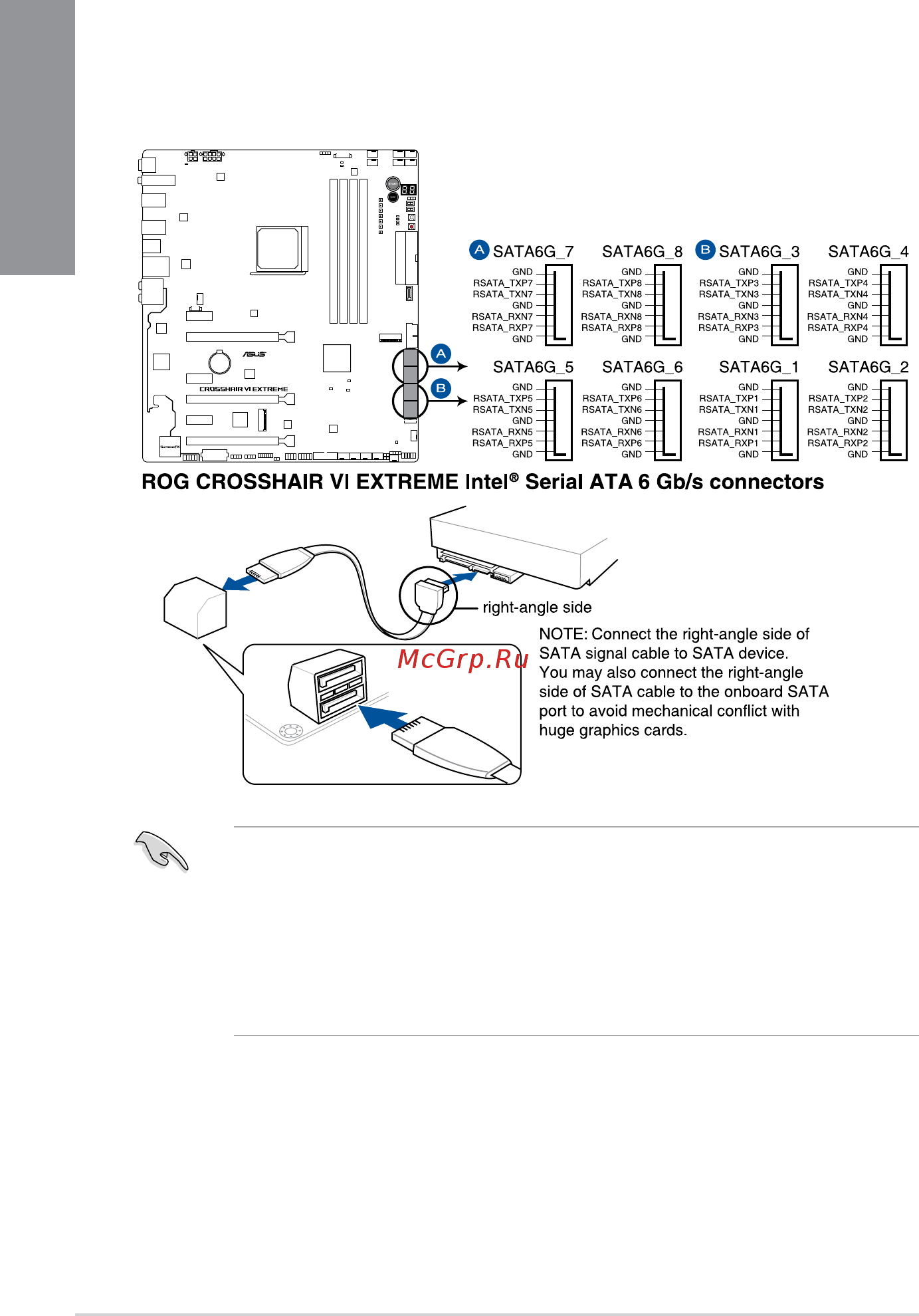

Serial ATA 6.0 Gb/s connectors (7-pin SATA6G_1-8)
TheseconnectorsconnecttoSerialATA6.0Gb/sharddiskdrivesviaSerialATA6.0
Gb/ssignalcables.
IfyouinstalledSerialATAharddiskdrives,youcancreateaRAID0,1,and10
congurationthroughtheonboardAMD
®
X370chipset.
• Theseconnectorsaresetto[AHCI]bydefault.IfyouintendtocreateaSerialATA
RAIDsetusingtheseconnectors,settheSATAModeSelectionitemintheBIOSto
[RAID].
• BeforecreatingaRAIDset,refertosectionRAID configurationsorthemanual
bundledinthemotherboardsupportDVD.
• WhenusingNCQ,settheSATAModeintheBIOSto[AHCI].RefertosectionSATA
Configurationfordetails.
