Asus ROG CROSSHAIR VI EXTREME [63/108] Chapter 2

ROG CROSSHAIR VI EXTREME

2-13

Chapter 2

2.3 Motherboard rear and audio connections

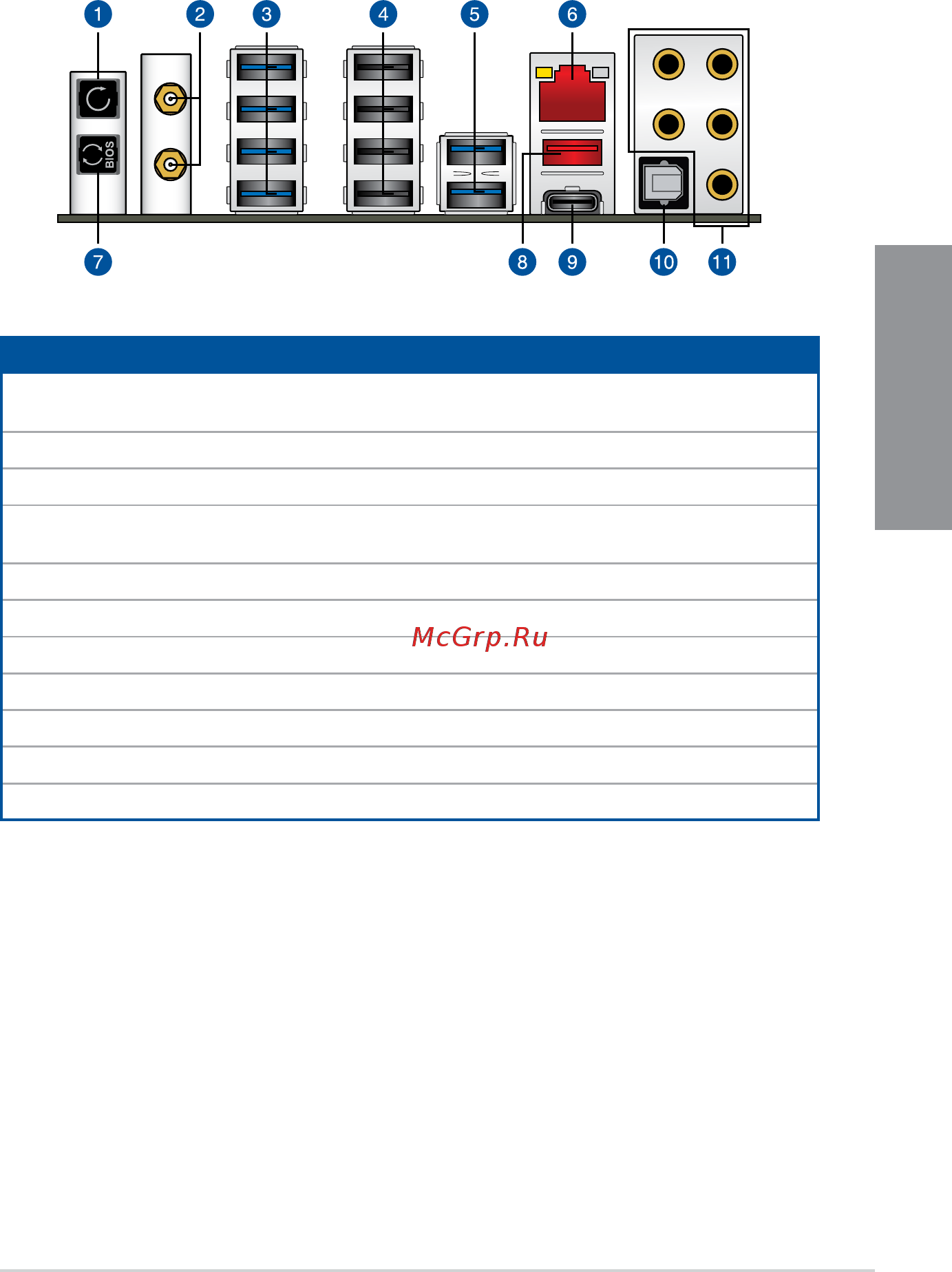

2.3.1 Rear I/O connection

* and ** : Refer to the tables on the next page for LAN port LEDs, and audio port definitions.

Rear panel connectors

Clear CMOS button (CLR_CMOS). Press this button to clear the BIOS setup

information only when the systems hangs due to overclocking.

2. Wi-Fi 802.11 a/b/g/n/ac, Bluetooth V4.0

3. USB 3.1 Gen 1 ports 1, 2, 3, and 4

USB 2.0 ports 11, 12, 13, and 14. Second port from the bottom supports the

KeyBot II feature.

5. USB 3.1 Gen 1 ports 5 and 6

6. LAN (RJ-45) port*

7. USB BIOS Flashback button

8. USB 3.1 Gen 2 Type-A port E2

9. USB 3.1 Gen 2 Type-C™ port EC1

10. Optical S/PDIF OUT port

11. Audio I/O ports**
