1-24
Chapter 1: Product Introduction
Chapter 1

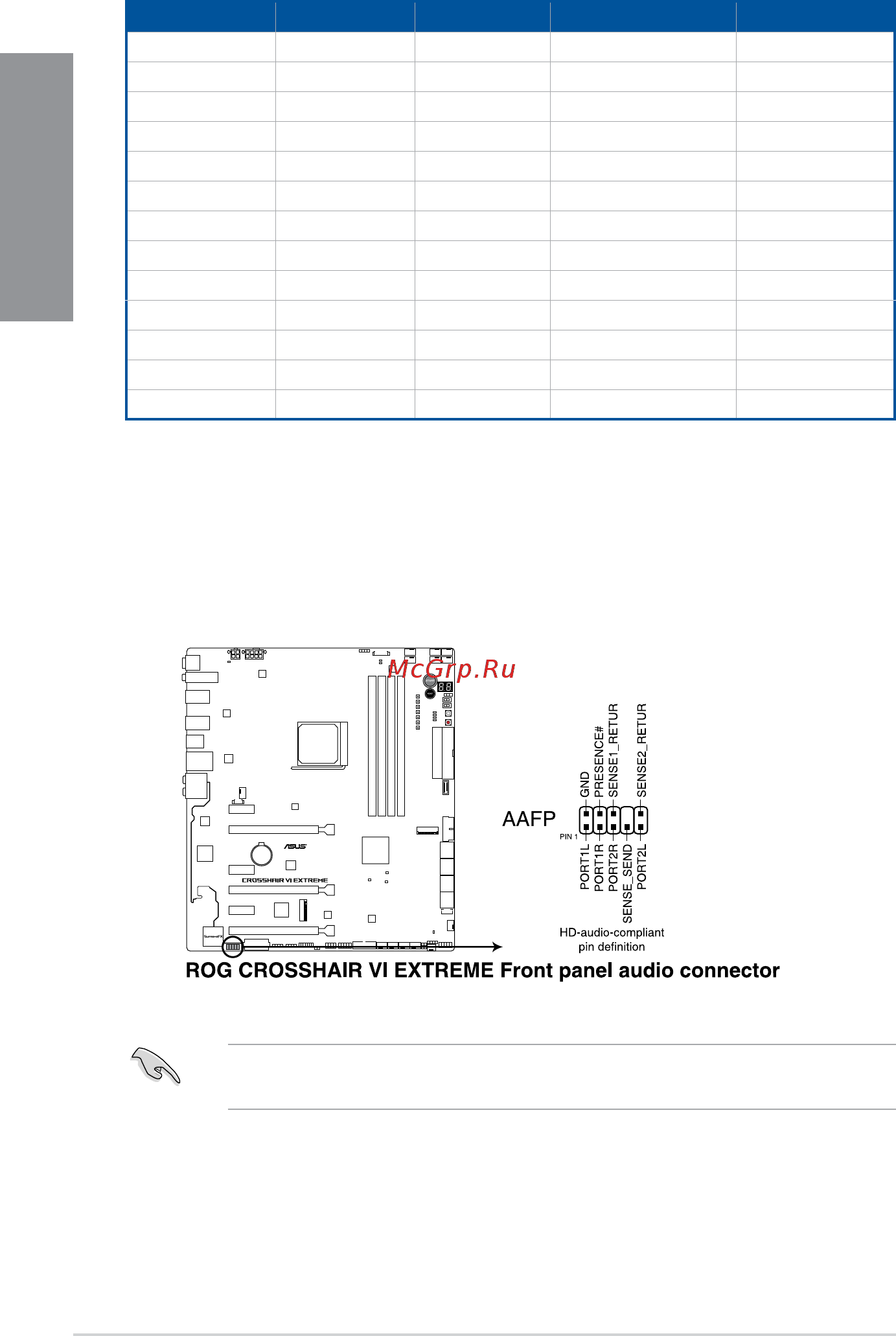

6. Front panel audio connector (10-1 pin AAFP)
Thisconnectorisforachassis-mountedfrontpanelaudioI/Omodulethatsupports
HDAudiostandard.ConnectoneendofthefrontpanelaudioI/Omodulecabletothis
connector.
Werecommendthatyouconnectahigh-denitionfrontpanelaudiomoduletothis
connectortoavailofthemotherboard’shigh-denitionaudiocapability.
Header Max. Current Max. Power Default Speed Shared Control
CPU_FAN 1A 12W Q-FanControlled A
CPU_OPT 1A 12W Q-FanControlled A
RAD1A_FAN 1A 12W Q-FanControlled B
RAD1B_FAN 1A 12W Q-FanControlled B
RAD1C_FAN 1A 12W Q-FanControlled B
RAD1D_FAN 1A 12W Q-FanControlled B
RAD2A_FAN 1A 12W Q-FanControlled C
RAD2B_FAN 1A 12W Q-FanControlled C
RAD2C_FAN 1A 12W Q-FanControlled C
RAD2D_FAN 1A 12W Q-FanControlled C
EXT_FAN 1A 12W Q-FanControlled -
CHA_FAN 1A 12W Q-FanControlled -
W_PUMP+ 3A 36W FullSpeed -
