Asus ROG CROSSHAIR VI EXTREME [56/108] Chapter 2
![Asus ROG CROSSHAIR VI EXTREME [56/108] Chapter 2](/views2/1307911/page56/bg38.png)
2-6
Chapter 2: Basic Installation
Chapter 2

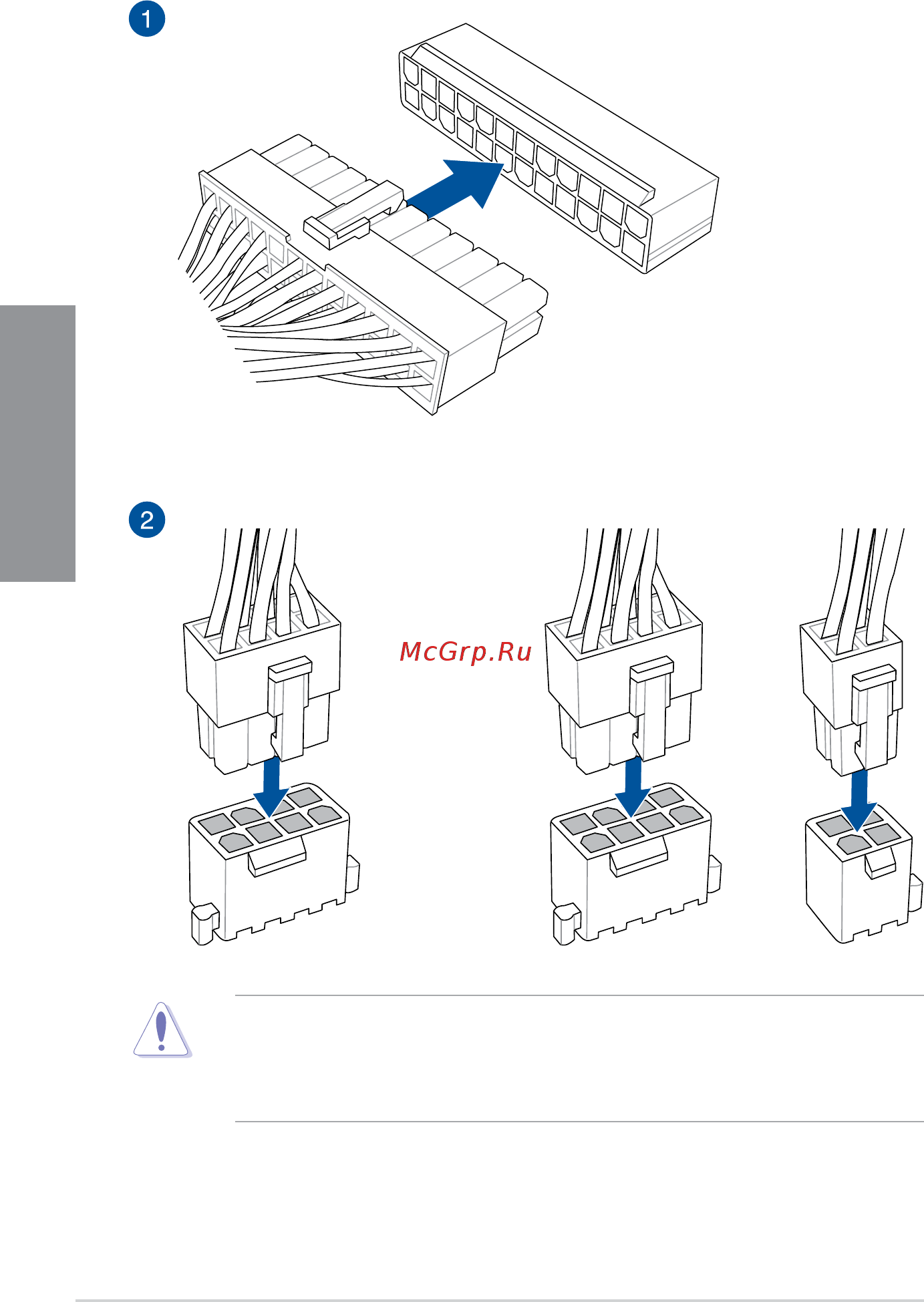

2.1.5 ATX power connection
OR AND
• DO NOT connect the 4-pin power plug only, the motherboard may overheat under
heavy usage.
• Ensure to connect the 8-pin power plug, or connect both the 8-pin and 4-pin power
plugs.
