1-22
Chapter 1: Product Introduction
Chapter 1
Neverconnecta1394cabletotheUSBconnectors.Doingsowilldamagethe
motherboard!

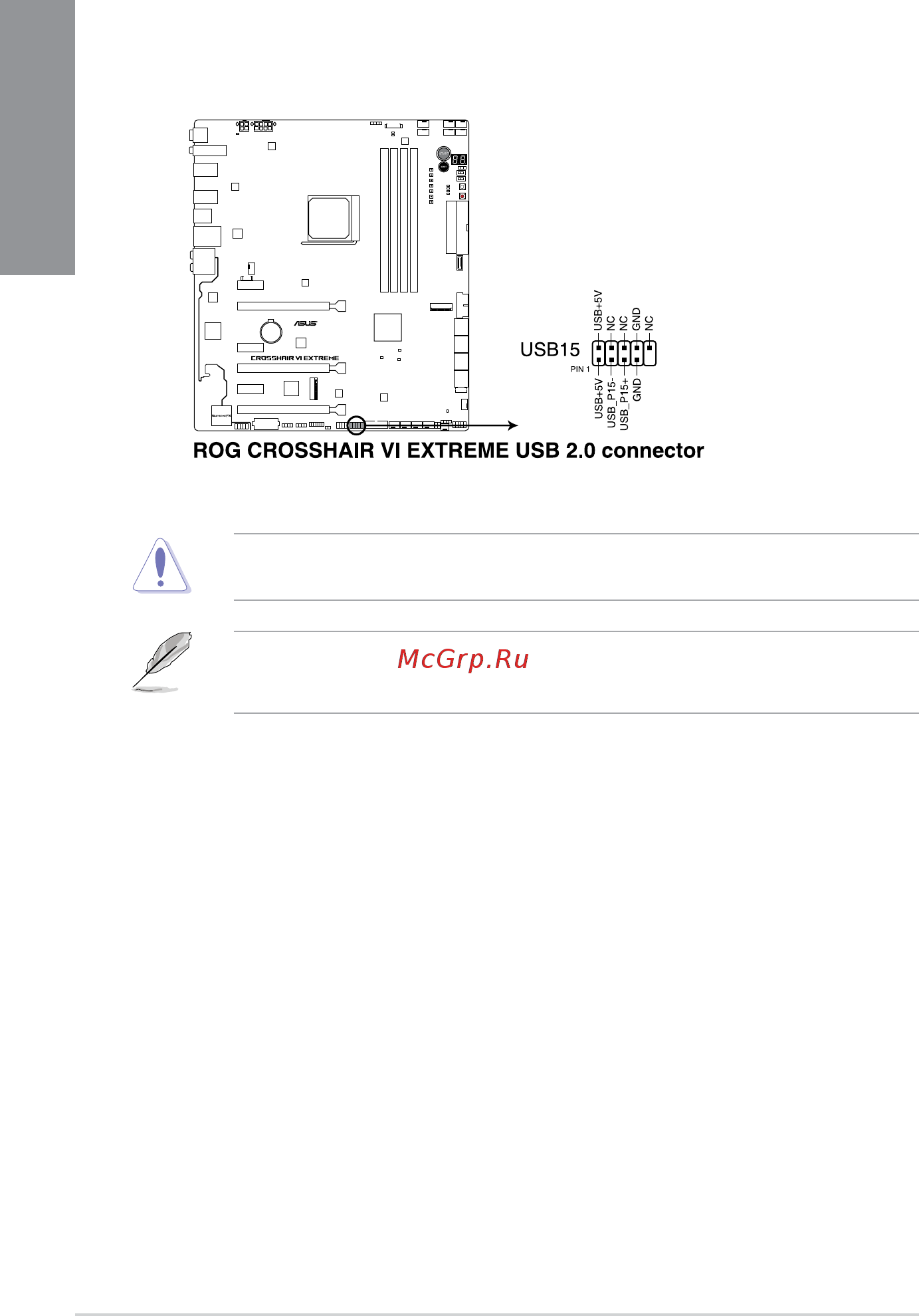

4. USB 2.0 connector (10-1 pin USB15)
ThisconnectorisfortheUSB2.0port.ConnecttheUSBmodulecabletothis
connector,theninstallthemoduletoaslotopeningatthebackofthesystemchassis.
ThisUSBconnectorcomplieswithUSB2.0specicationthatsupportsupto480MBps
connectionspeed.
• 1xUSB2.0port(USB15)atmid-boardshareswithROGextension(ROG_EXT)port.
• ThisconnectorsupportsoneUSB2.0port.
