14

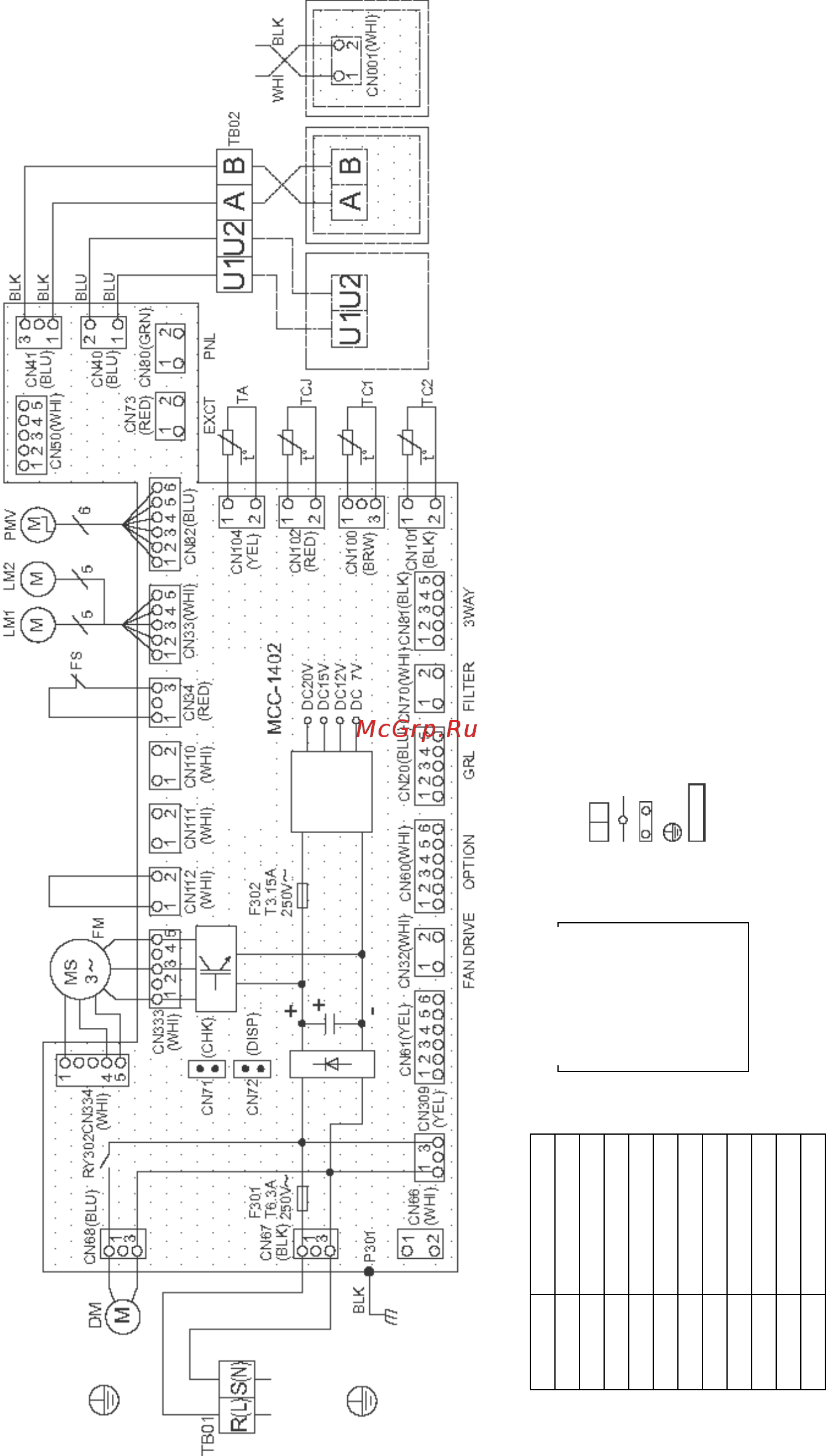

1 Wiring Diagrams
1-1. Compact 4-way cassette type
Models: MMU-AP0074MH-E(TR), AP0094MH-E(TR), AP0124MH-E(TR), AP0154MH-E(TR),
AP0184MH-E(TR)
Indoor unit
Earth screw
Power supply
1~50Hz 220-240V
1~60Hz 220V
Flow selector unit
Earth screw
(High ceiling
reshuffling)
Control P.C. Board
for Indoor Unit
1.Broken line indicate the wiring at site.
Long dashed short dashed line indicate the accessories.
2. indicates the terminal block.
indicates the connection terminal.
indicates the connector on the control P.C. board.
3. indicates the protection ground.
4. indicates the control P.C. board.
RED : RED
WHI : WHITE
YEL : YELLOW
BLU : BLUE
BLK : BLACK
GRY : GRAY
PNK : PINK
ORN : ORANGE
BRW : BROWN
GRN : GREEN
Symbol Parts Name
CN** Connector
DM Drain Pump Motor
F301,302 Fuse
FM Fan Motor
FS Float Switch
LM1,2 Louver Motor
PMV Pulse Motor Valve
RY302 Drain Control Relay
TA Indoor temp sensor
TB01,02 Terminal Block
TC1,2,TCJ Temp sensor
Wired Remote
Controller
Adapter for
Wireless
Remote
Controller
Outdoor unit
Power
supply
circuit
COLOR
IDENTIFICATION
