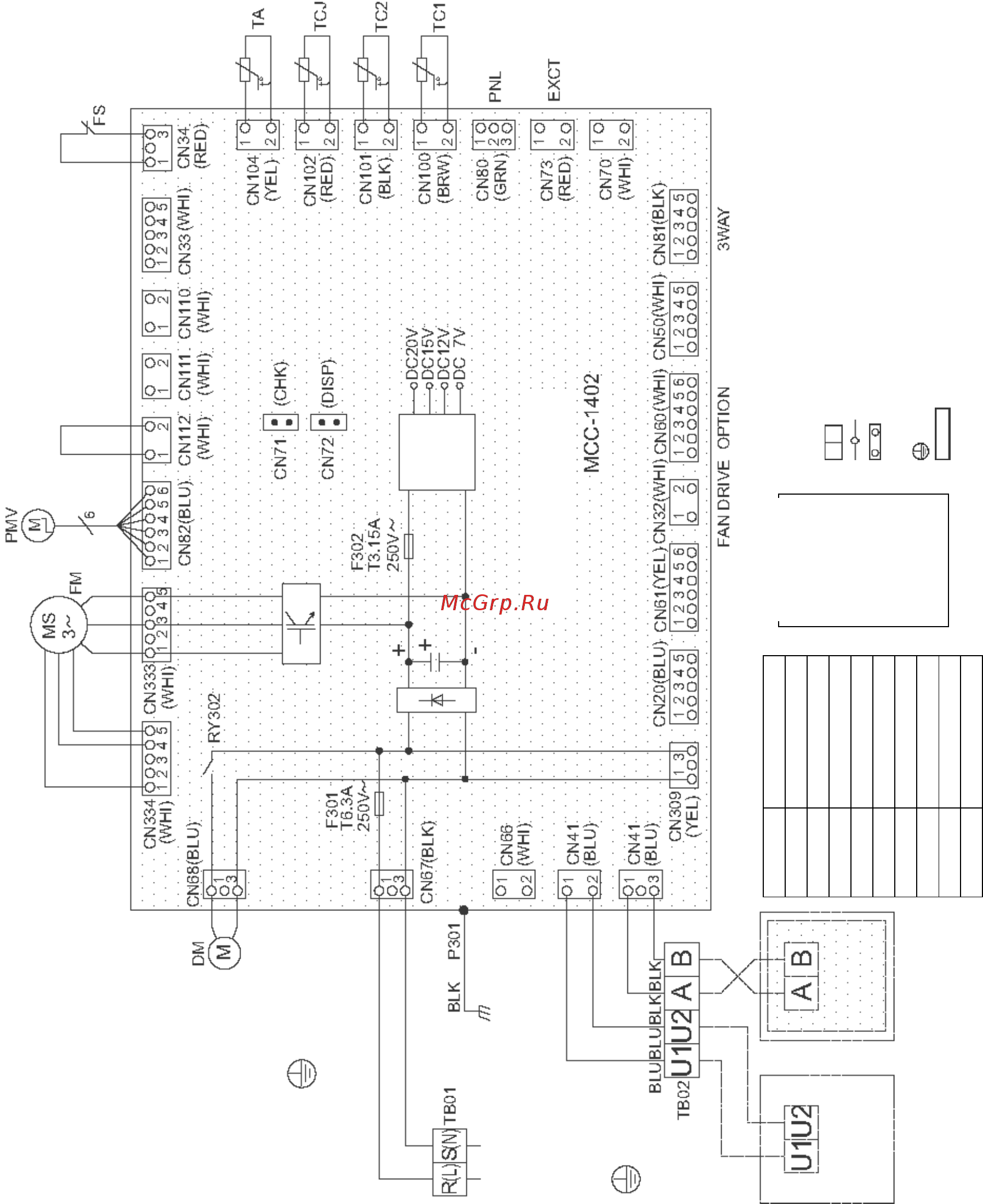

1-6. Slim duct type
Models: MMD-AP0074SPH-E(TR), AP0094SPH-E(TR), AP0124SPH-E(TR),
AP0154SPH-E(TR), AP0184SPH-E(TR)
Power supply
1~50Hz 220-240V
1~60Hz 220V
Indoor unit
Earth screw
Flow selector unit
Earth screw
Wired Remote
Controller
Symbol Parts Name
CN** Connector
DM Drain Pump Motor
F301,302 Fuse
FM Fan Motor
FS Float Switch
RY302 Drain Control Relay
TA Indoor temp sensor
TB01,02
Terminal Block
TC1,2,TCJ
Temp sensor
1.Broken line indicate the wiring at site.
Long dashed short dashed line indicate the
accessories.
2. indicates the terminal block.
indicates the connection terminal.
indicates the connector on the control P.C.
board.
3. indicates the protection ground.
4. indicates the control P.C. board.
RED : RED
WHI : WHITE
YEL : YELLOW
BLU : BLUE
BLK : BLACK
GRY : GRAY
PNK : PINK
ORN : ORANGE
BRW : BROWN
GRN : GREEN
COLOR
IDENTIFICATION
Outdoor unit
Control P.C. Board for
Indoor Unit
Power
supply
circuit
(High ceiling
reshuffling)
