201

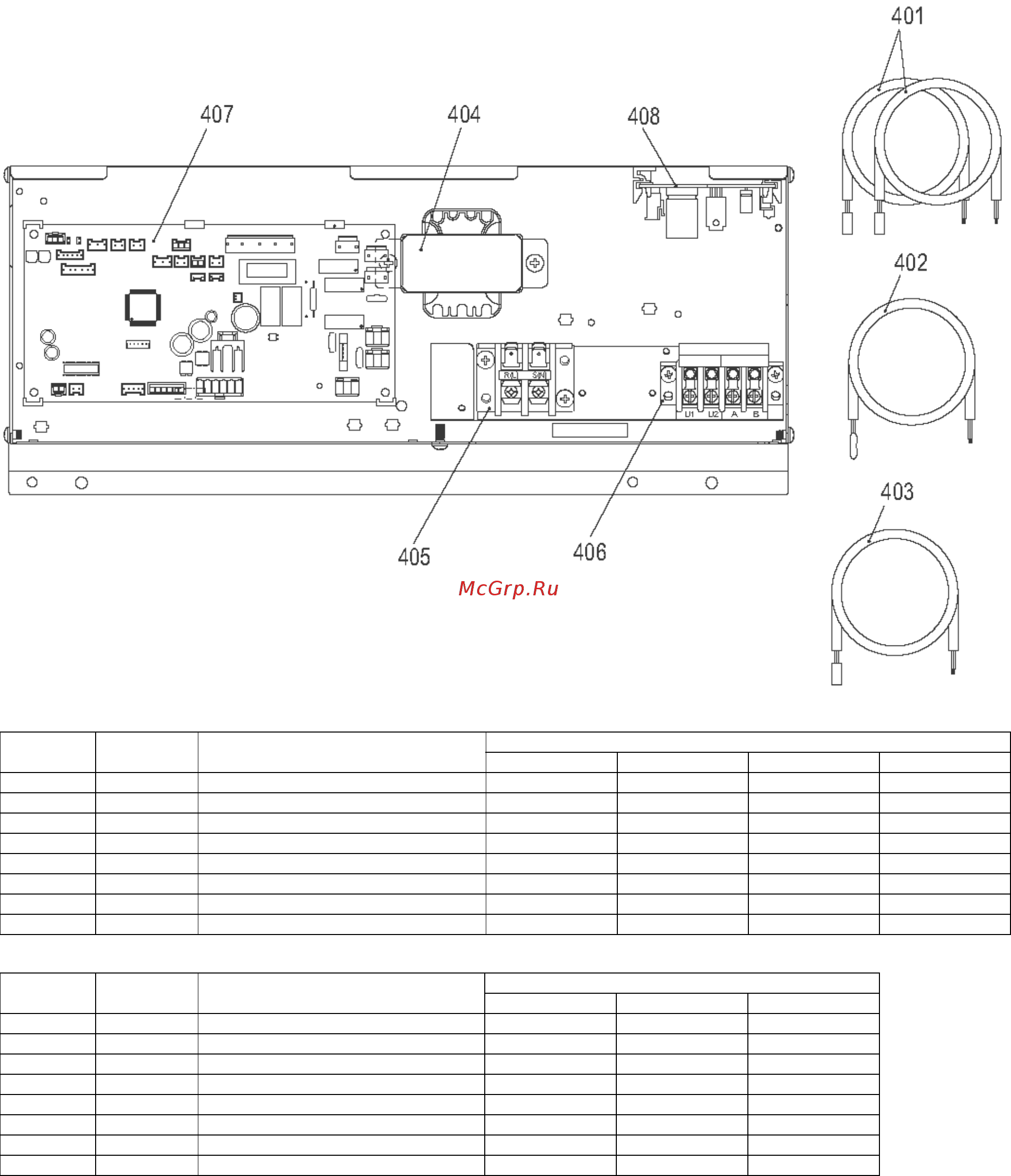

E-Parts
Location
No.
Part No. Description
MMF-
AP0154H-E(TR) AP0184H-E(TR) AP0244H-E(TR) AP0274H-E(TR)
401 43050425 SENSOR ASSY, SERVICE 2 2 2 2
402 43050426 SENSOR, SERVICE 1 1 1 1
403 43150320 SENSOR ASSY, SERVICE 1 1 1 1
404 43158204 TRANSFORMER 1 1 1 1
405 43160575 TERMINAL BLOCK, 2P, 20A 1 1 1 1
406 43160582 TERMINAL, 4P 1 1 1 1
407 4316V444 P.C. BOARD ASSY, MCC-1403 1 1 1 1
408 4316V345 P.C. BOARD ASSY, MCC-1520 1 1 1 1
Location
No.
Part No. Description
MMF-
AP0364H-E(TR) AP0484H-E(TR) AP0564H-E(TR)
401 43050425 SENSOR ASSY, SERVICE 2 2 2
402 43050426 SENSOR, SERVICE 1 1 1
403 43150320 SENSOR ASSY, SERVICE 1 1 1
404 43158204 TRANSFORMER 1 1 1
405 43160575 TERMINAL BLOCK, 2P, 20A 1 1 1
406 43160582 TERMINAL, 4P 1 1 1
407 4316V444 P.C. BOARD ASSY, MCC-1403 1 1 1
408 4316V345 P.C. BOARD ASSY, MCC-1520 1 1 1
