21

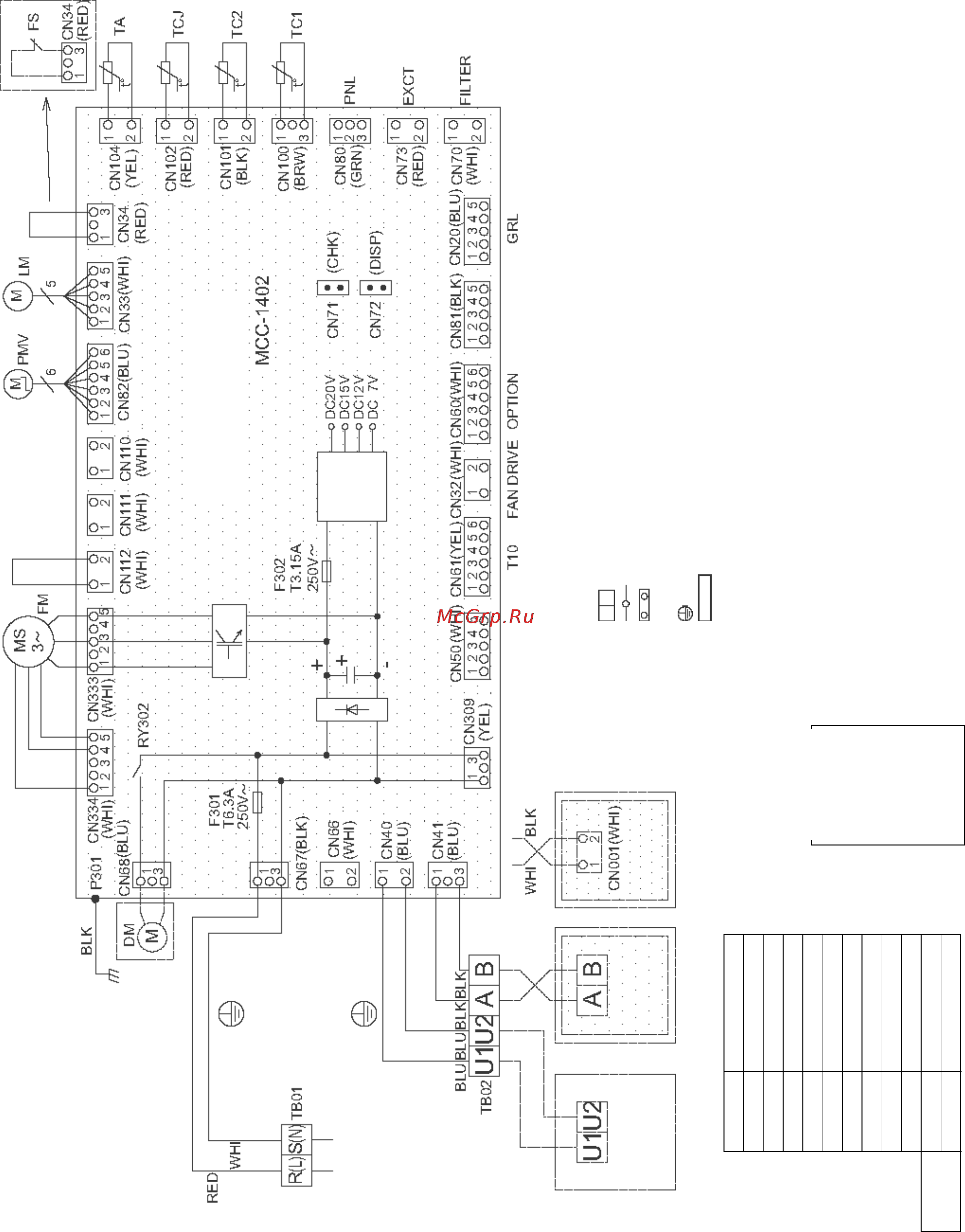

1-7. Ceiling type
Models: MMC-AP0154H-E(TR), AP0184H-E(TR), AP0244H-E(TR), AP0274H-E(TR),
AP0364H-E(TR), AP0484H-E(TR)
Remote Controller
Outdoor unit
Control P.C. Board for
Indoor Unit
Power
supply
circuit
Adapter for Wireless
Remote Controller
1.Broken line indicate the wiring at site.
Long dashed short dashed line indicate the
accessories.
2. indicates the terminal block.
indicates the connection terminal.
indicates the connector on the control P.C.
board.
3. indicates the protection ground.
4. indicates the control P.C. board.
5.When installing the drain pump connect the froat
switch connector to CN34 connector.
RED : RED
WHI : WHITE
YEL : YELLOW
BLU : BLUE
BLK : BLACK
GRY : GRAY
PNK : PINK
ORN : ORANGE
BRW : BROWN
GRN : GREEN
COLOR
IDENTIFICATION
Symbol Parts Name
CN** Connector
F301,302 Fuse
FM Fan Motor
LM Louver Motor
PMV Pulse Motor Valve
RY302 Drain Control Relay
TA Indoor temp sensor
TB01,02
Terminal Block
TC1,2,TCJ Temp sensor
Sold
Separately
DM Drain Pump Motor
FS Float Switch
Power supply
1~50Hz 220-240V
1~60Hz 220V
Indoor unit
Earth screw
Flow selector unit
Earth screw
(High ceiling
reshuffling)
When drain
pump is installed
