Models: MMD-AP0724H-E(TR), AP0964H-E(TR)
Symbol Parts Name
43F1,F2
Fan motor Control Relay
CN** Connector
F1,2,3 Fuse for Fan Motor
F301 Fuse
FM Fan Motor
PMV Pulse Motor Valve
RC Running Capacitor
RY002 Drain Control Relay
RY005,006,007
Fan Motor Control Relay
TA Indoor temp sensor
TB01,02,03,
04,05,06
Terminal Block
TC1,2,TCJ Temp sensor
TR Transformer
Sold
Separately
DM Drain Pump Motor
FS Float Switch
1.Broken line indicate the wiring at site.
Long dashed short dashed line indicate
the accessories.
2. indicates the terminal block.
indicates the connection terminal.
indicates the connector on the
control P.C. board.
3. indicates the protection ground.
4. indicates the control P.C. board.
5.When installing the drain pump connect
the froat switch connector to CN30
connector.
6. position is connected to terminal
block when change to static pressure.
Exchange the lead wire of arrow ( )
position after check the terminal
number as figure and lead wire's color
of fan motor.
7.Be careful when modify the static
pressure, the static pressure of high tap
is different by 50Hz or 60Hz.
Terminal
No.
Fan motor
wiring
Static pressure
Pa (mmAq)
Note
F1 YEL 69(7)
F2 BLU 137(14) Setting from factory
F3 ORN 196(20)
Power supply
1~50Hz 220-240V
1~60Hz 220V
Line Filter
RED : RED
WHI : WHITE
YEL : YELLOW
BLU : BLUE
BLK : BLACK
GRY : GRAY
PNK : PINK
ORN : ORANGE
BRW : BROWN
GRN : GREEN
COLOR
IDENTIFICATION
Indoor unit
Earth screw
Flow selector unit
Earth screw
Outdoor
unit
Remote
Controller
Control P.C. Board
for Indoor Unit
Power
supply
circuit
When drain
pump is installed
Sub P.C. Board

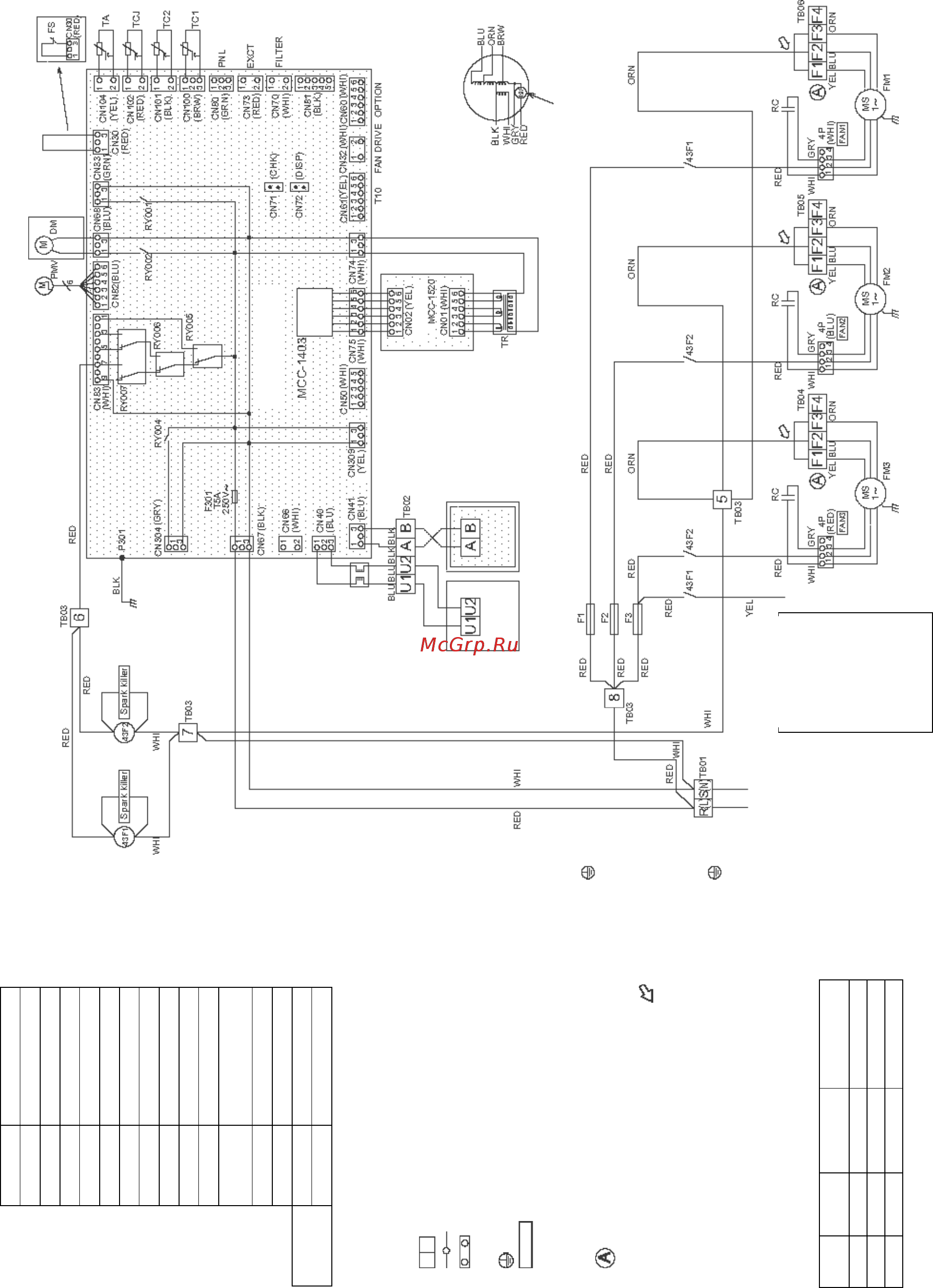

Fan motor inside wiring diagram
Motor over heating
protection switch
