! The appliance must be installed by a qualified person in

compliance with the instructions provided.

If the supply cord is damaged, it must be replaced by the

manufacturer, its service agent or similarly qualified

persons in order to avoid a hazard.

Wear gloves and goggles when carrying out

installation and maintenance operations.

AIR VENT

(for ducting versions)

! Prepare the hole and the air vent duct (150 mm

diameter).

! Use a duct of the minimum indispensible length.

! Use a duct with as few elbows as possible (maximum

elbow angle: 90°).

! Avoid drastic changes in the duct cross-section.

! Use a duct with an as smooth as possible inside.

! The duct must be made of certified material.

! Do not connect the hood to smoke exhaust ducts for the

products of combustion (boilers, fireplaces, stoves, etc).

! For the air vents comply with the provisions laid down by

the competent authorities.

In addition, the air must not be evacuated through a hole

in the wall unless specifically intended for this purpose.

! Fit air intakes in the room to prevent the hood from

creating a negative pressure in the room (which must not

exceed 0.04 mbar); if the hood is used at the same time

as non-electrical equipment (gas-, oil- and charcoal-fired

stoves, etc.) the exhaust gas may be sucked in by the

heat source.

! For installation with a wall vent hole, power should be

provided in the area indicated by

on the drilling

template

FILTERING OR DUCTING VERSION ?

The hood may be in filtering or in ducting version. Decide

from the outset which type is to be installed.

For better efficiency, we recommend installing the hood in

the ducting version (if possible).

Ducting version

The hood purifies the air and evacuates it to the outside

through an exhaust duct or hole (diameter 150 mm).

Filtering version

The hood purifies the air and recycles the clean air back

into the room. For this version, the following is required: a

theft-proof cover, a reducer and charcoal filter. In the

version with flue, the upper flue must have the air

evacuation slots positioned in the upper part and

the deflector must be used in place of the anti-theft

cover. The upper flue air evacuation slots must be

positioned at the top.

Only for hoods equipped with electronic control:

The 4th speed (intensive) is automatically lowered to 3rd

speed after 5 minutes of operation to optimise energy

consumption.

- If the hood is left on (lights and/or motor), after 10 hours in

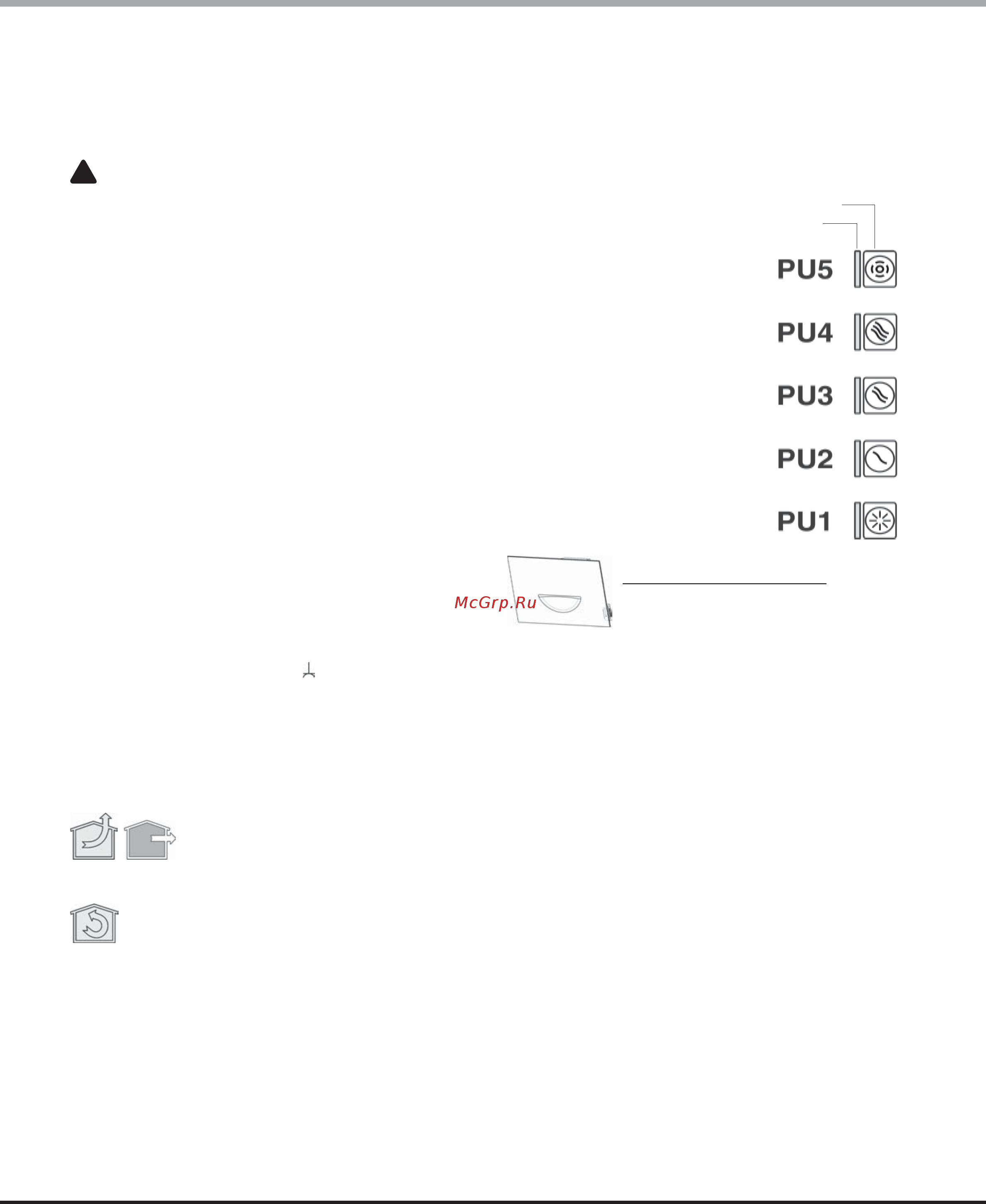

CONTROLS

Speed display

PU5: ON/OFF SENSOR

PU4: ON Motor 3

speed.

The second touch motor

speed.

PU3: ON Motor 2

speed

PU2: ON/OFF Motor 1

speed

*PU1: ON/OFF Lights

Buzzer:

Each time the key is pressed, a beep is sounded.

- AUTOMATIC function (Sensor)

Once the PU5 key is pressed, the speed of the motor is

automatically set by the sensor and is displayed by the

corresponding LED (fixed light). For each automatic

change of speed, the LED of PU5 blinks for 5 seconds.

During automatic operation it is in any case possible to

vary the speed of the motor by using the corresponding

buttons. When the function is active, pressing the PU5 key

turns the motor on/off.

Setting of the sensor sensitivity

With the motor stopped, and the automatic function

deactivated, press both the PU1 and PU5 keys

simultaneously for 3 seconds.

The LED of PU2 (minimum sensitivity) or of PU3 (medium

sensitivity) or of PU4 (maximum sensitivity) indicate by

blinking the current level of sensitivity.

Select the desired level of sensitivity:

PU2: minimum sensitivity

PU3: medium sensitivity

PU4: maximum sensitivity

Press the PU5 key to save the choice.

- Filter alarm:

After 30 hours of motor operation, the grease filter alarm is

activated (all the LEDs come on). The alarm is activated when

the motor is off and remains displayed for 30". To deactivate

*Only for the SMOOTH model

With pressing held, the PU1 key also turns

the upper LED of the hood on/off.

KEY

LED

the absence of commands from the user, it will

automatically switch to OFF condition with all services

switched off.

- The Buzzer emits a “beep” each time that a command is

set from the keyboard or remote control (optional).

- In the event of interruption of power during the hood, if you

restore the hood in the OFF state, then the engine must be

reactivate manually.
