10
ENG
“heaterSteam” +0300075EN - rel. 1.2 - 29.09.2015

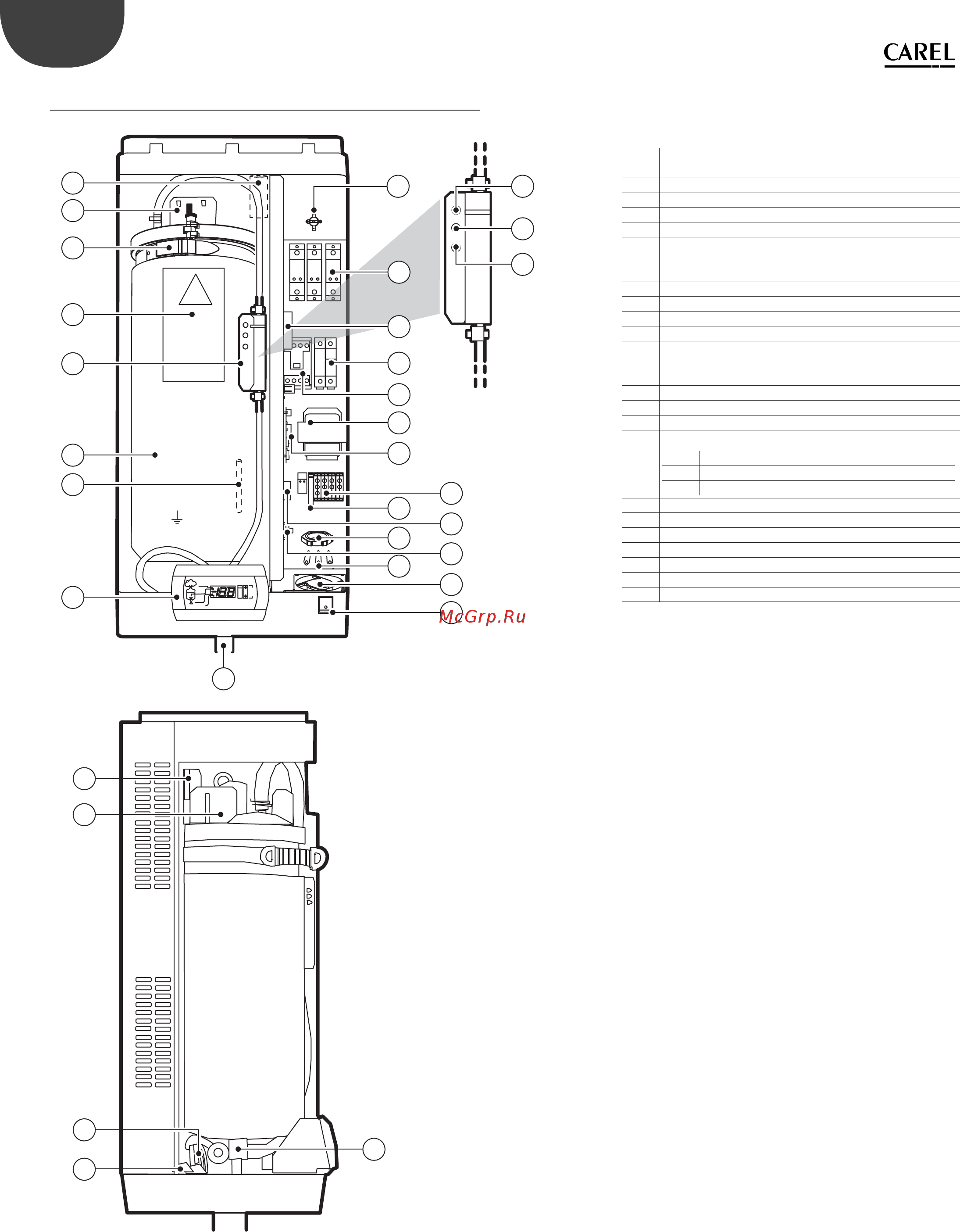

1.11 Structure of models UR002 – UR0013
!
drain
x 1000
Steam
Drain
Fill
Alarm
PRG
reset
SEL
I
26
22
21
20
19
18
17
16
14
13
7
8
5
3
2
1
B
10
15
9
6
4
C
A27
11
12
Key:
1 Solid state relay (SSR)
2 Safety module (Motor protector, THP)
3 Fuse-holder base (F1, F2)
4 CONTACTOR
5 Transformer
6 Control card
7 Power cable terminal block
8 Pump fuse (F3)
9 Anti-jamming fi lter (where provided)
10 Cable gland for power cables
11 Fan control board
12 Cable gland for auxiliary circuit
13 Cooling fan
14 ON/OFF switch
15 Drain
16 Electronic controller
17 NTC probe holder
18 Water heater tank
19 Warning label
20 Level sensor
A Green LED: normal operation
B yellow LED: loading
C red LED: safety level
21 Locking belt
22 Heating element(s)
23 Drain pump
24 Infeed valve
25 Drain tempering valve (where provided)
26 Feeding tank
27 Thermal switch (klixon) SSR
26
22
25
24
23
Fig. 1.l
