Carel UR053HL102 [38/72] Electric components
![Carel UR053HL102 [38/72] Electric components](/views2/1339072/page38/bg26.png)
38
ENG
“heaterSteam” +0300075EN - rel. 1.2 - 29.09.2015

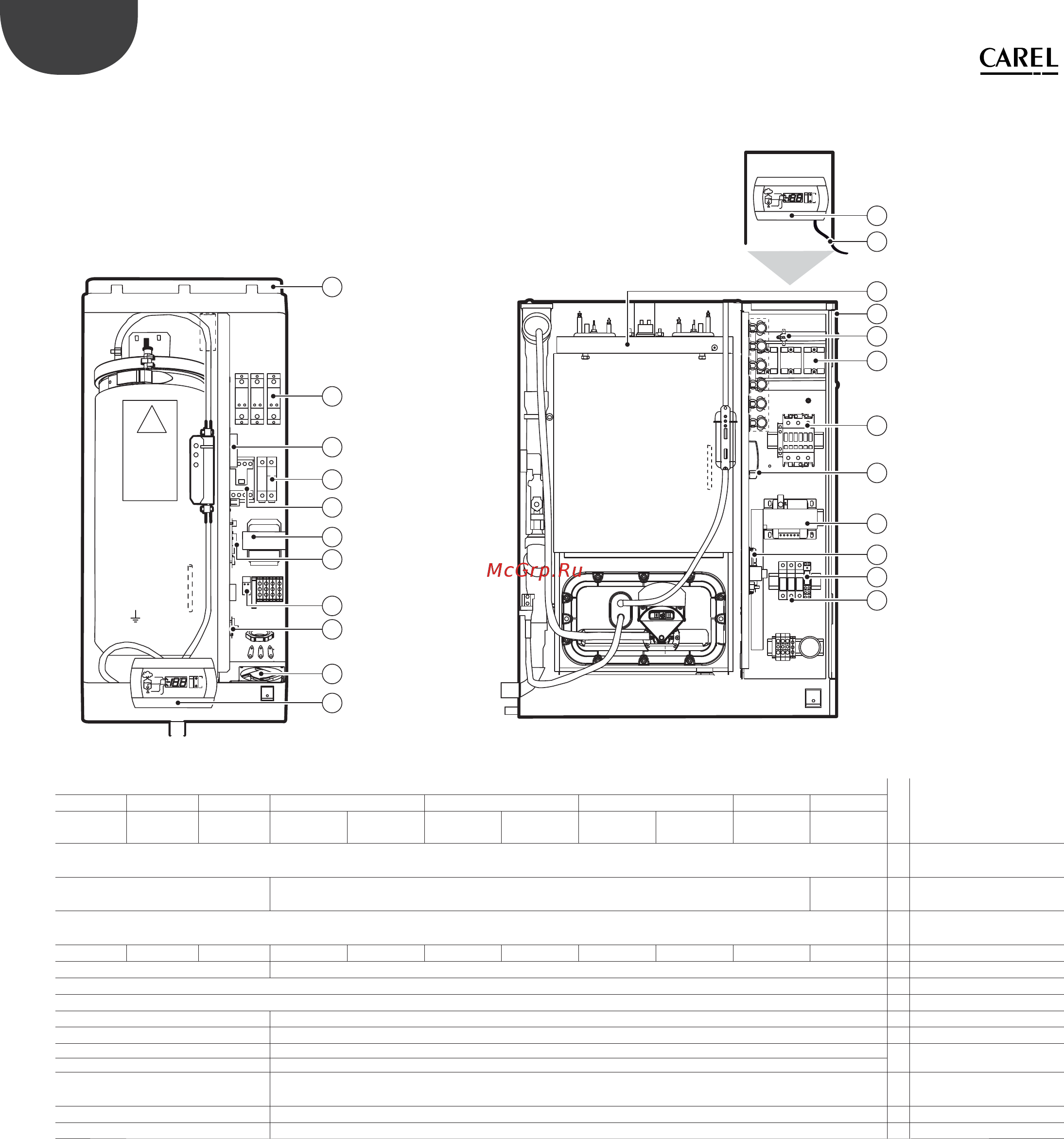

Electric components
!
drain
x 1000
Steam
Drain
Fill
Alarm
PRG
reset
SEL
I
10
6
5
3
1
2
7
8
4
9
13
drain
x 1000
Steam
Drain
Fill
Alarm
PRG
reset
SEL
I
5
8
7
6
3
4
2
9
11
10
12
1
Fig. 10.e
code
N. description
UR2-10 UR13 UR13 UR20 UR27 UR40 UR53-60 UR80
ALL
“230V
3ph”
“400-460V
575V 3ph”
“208-230V
3ph”
“400-460V
575V 3ph”
230V 3ph
“400-460V
575V 3ph”
400 3ph
460V -575V
3ph
“400-460V
575V 3ph”
“400-460V
575V 3ph”
URKKL20000
1
Thermal protection kit
SSR (klixon)
URKSSR1020 URKSSR3000 URKSSR4000
2
Solid state relay (SSR)
(single package)
THP00A0000
3
Motor protector
(safety thermostat)
UEKCONT200 URKCONT200 UEKCONT200 URKCONT400 URKCONT200 URKCONT300 URKCONT200 URKCONT400 URKCONT400 URKCONT300 URKCONT300
4 Contactor
URKFH10000 URKFH20000
5 Fuse holder base
UEKTR30000
6 Transformer
URI0000000
7 Main control board
- URKREL2300
8 Pump relay
URKFANS000 URKFANL200
9Fan
URHxxv0002 (**) “Control module version H (with humidity regulator)”
10 Electronic controller
URSxxv0002 (**) “Control module version for steam bath (with temperature regulator)”
- URKKL00000
11
Boiler head safety
thermostat (klixon)
59C460A003 59C486A003
12 fl at cable
URKCFAN000 -
13 fan control board
Tab. 10.g
(**): xx replace with capacity in kg/h: 00 (to be confi gured by the user), 02, 04, 06,
10, 13, 20, 27, 40, 53, 60, 80; “v” replace with power supply code from the following
list: 0 (to be confi gured by the user); (single-phase) C= 200 Vac; U= 208 Vac; D= 230
Vac; (three-phase) J= 200 Vac; W= 208 Vac, K= 230 Vac, L= 400 Vac, M= 460 Vac, N=
575 Vac; 0= all other models.
