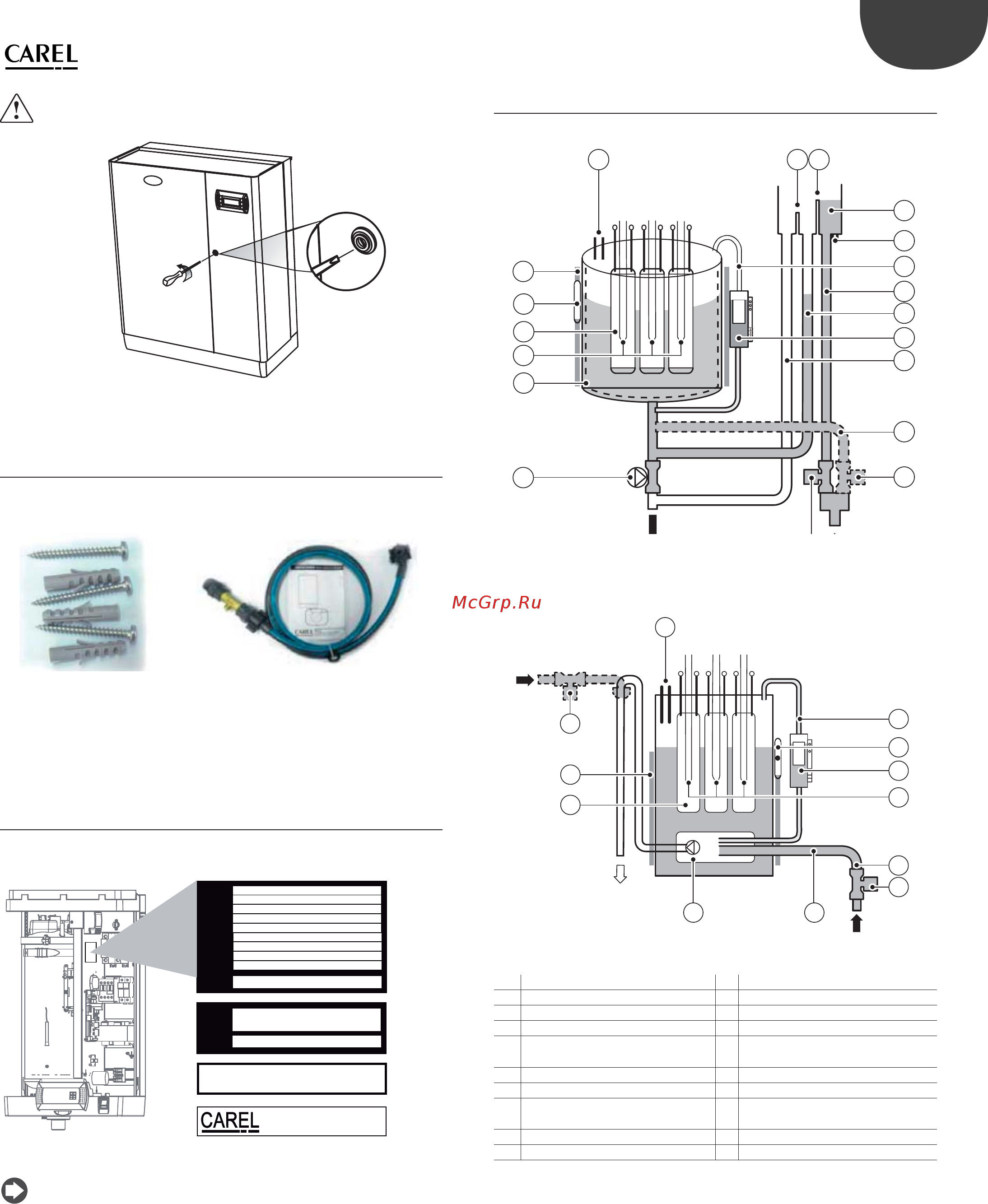

Carel UR053HL102 [9/72] Hydraulic circuit
![Carel UR053HL102 [9/72] Hydraulic circuit](/views2/1339072/page9/bg9.png)
9
ENG
“heaterSteam” +0300075EN - rel. 1.2 - 29.09.2015
Caution: in models UR020...UR080 open the electrical
compartment of the humidifi er using the slotted lock.
Fig. 1.h
1.8 Material supplied with the appliance
Once the packaging opened and the front panel removed, check
if there is a:
screws and anchor
kit for wall mounting
only for models UR020...UR080: Code
FWHDCV0003 back fl ow prevention valve
with connection tube
1.9 Technical data plate
Humidifi ers can be identifi ed by means of the technical plate placed on
the partition wall of the electrical cabinet.
MOD.
A
Vac
Hz
PH
kW
kg/h
IP
Date
Part No.
IP
Date
Part No.
Serial No.
Rev.
MADE IN ITALY
CAREL INDUSTRIES
Via dell'Industria, 11, 35020 Brugine
(Padova) Italy
Fig. 1.i
Note: tampering, removal, lack of the identifi cation plate or other
does not allow the safe identifi cation of the product and will
make any installation or maintenance operation to be performed diffi cult.
1.10 Hydraulic circuit
Models UR002 – UR013
31 2
5
4
7
8
6
9
10
16
17
12
11
19
18
15
14
Fig. 1.j
Models UR020 – UR080
16
1
5
7
12
19
17
14
13
9
18
6
Fig. 1.k
1 Anti-foaming sensor 11 Drain tube tempering (*)
2 Overfi ll diaphragm 12 Drain valve tempering (*)
3 Fill diaphragm 13 Inlet valve
4 Feeding tank 14 Drain pump
5
Electrodes for conductivity meas-
urement
15 Anti-adhesive fi lm (**)
6 Equaliser pipe 16 Overtemperature sensors (PTC)
7 Feeding pipe 17 Heaters
8 Fill-up pipe 18
Water temperature sensor (NTC)
(**)
9 Level sensor 19 Thermal insulation cover (**)
10 Overfl ow pipe
(*) for the units equipped with it
