1. INTRODUCTION AND INSTALLATION
1.1 HeaterSteam (UR*)
Range of isothermal resistance humidifi ers, equipped with LED display
for the control and distribution of steam.
Available models (identifi ed by means of the code on the label, packaging
and on the technical data plate located inside the electrical cabinet):
• UR002, UR004, UR006, UR010, UR013 with steam production capacity
up to 13 kg/h (28,66 lb/h), hydraulic connections under the base of
the humidifi er;
• UR020, UR027, UR040, UR053, UR060, UR080 with steam production
capacity from 20 to 80 kg/h (from 44.09 to 176.37 lb/h), hydraulic
connections next to the humidifi er.

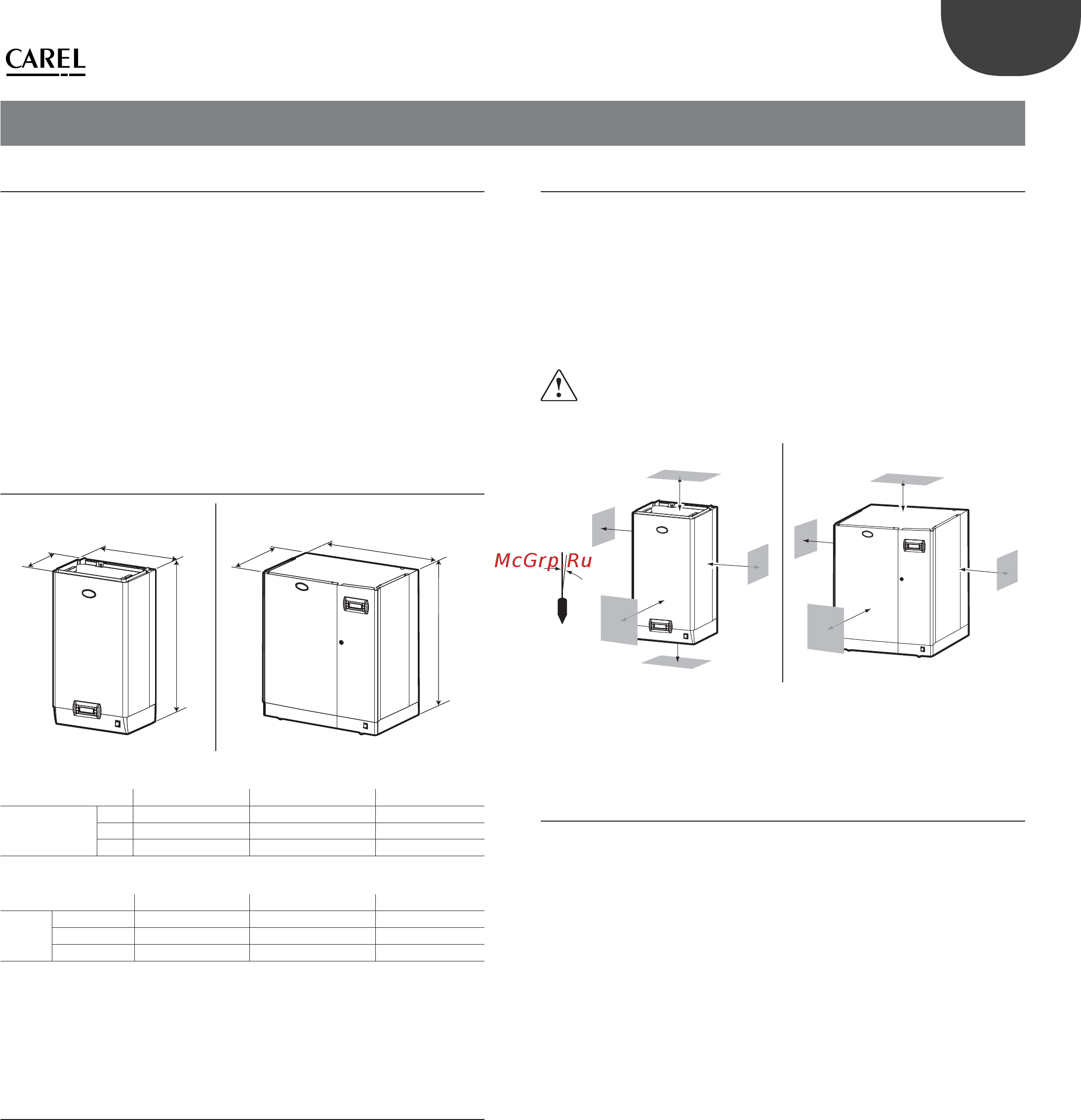

1.2 Dimensions and weights
Models UR002..UR013 Models UR020...UR080
B
A
C
B
A
C
Fig. 1.a
UR002…13 UR020…40 UR053…80
Size
mm (in)
A 365 (14,37) 690 (27,16) 876 (34,48)
B 275 (10.82) 445 (17,51) 445 (17,51)
C 712 (20,03) 888 (34,96) 888 (34,96)
Tab. 1.a
UR002…13 UR020…40 UR053…80
Weights
kg (lb)
packaged 31(68.3) 73(160.9) 98(216.0)
empty 26(57.3) 63(138.8) 87(191.8)
installed* 35(77.1) 97(213.8) 155(341.7)
Tab. 1.b
* in operating conditions, fi lled with water.
1.3 When opening the packaging
• check the integrity of the humidifi er upon delivery and notify to the
carrier immediately, in writing, any damage that can be attributed to
improper or careless transport;
• move the humidifi er to the installation site before removing it from the
packaging, grasping the neck from beneath;
• open the cardboard box, remove the protective material and remove
the humidifi er, keeping it upright at all times.
1.4 Positioning
• the unit is designed for wall mounting, suitable to support the weight
under operating conditions (see par. “Wall mounting”). The models
UR020*... UR080 * can be fl oor installed;
• to ensure proper distribution of steam, place the humidifi er next to the
steam distribution point;
• place the humidifi er horizontally (using a plumb and level), observing
the minimum clearances (see Figure 1b) to allow for necessary
maintenance.
Caution: during operation, the external metal panels heat up, and
the back leaning against the wall can reach temperatures above
60 °C (140 °F).
Models UR002..UR013 Models UR020...UR080
≥200
(7.9”)
≥200 (7.9”)
≥200
(7.9”)
≥400 (15.7”)
≥700
(27.6”)
<0,5$
≥500
(19.7”)
≥200 (7.9”)
≥300
(11.8”)
≥700
(27.6”)
Fig. 1.b
1.5 Wall mounting
Mount the humidifi er on the wall using the support bracket pre-attached
to the humidifi er, using the screws kit supplied (for mounting dimensions
see table below).
instructions for fastening:
1. unscrew the wall bracket from the one attached to the humidifi er;
2. secure the bracket to the wall (see Fig. 1.c), checking for plumb and
level; if the unit is mounted on a masonry wall, you can use the plastic
anchor plugs (Ø 8 mm, Ø 0.31in) and the screws (Ø 5 mm x L= 50
mm, Ø 0.19 in x L= 1.97 in) supplied;
3. hang the humidifi er on the bracket using the profi le on the upper
edge of the unit’s rear.
4. lock the humidifi er to the wall by means of the hole / holes found /
on the lower part of the rear panel of the machine.
