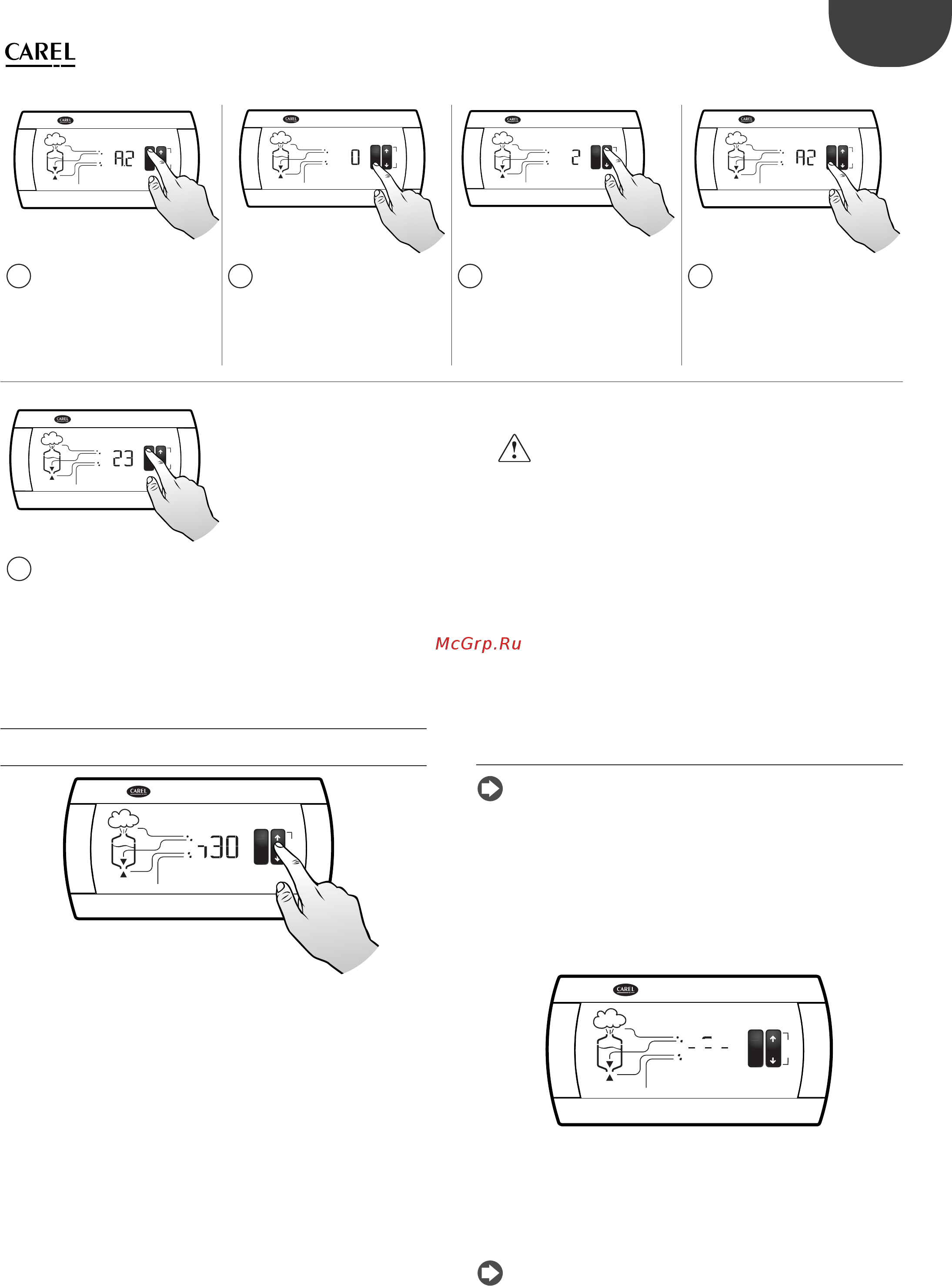

Carel UR053HL102 [27/72] Procedures
![Carel UR053HL102 [27/72] Procedures](/views2/1339072/page27/bg1b.png)
27
ENG
“heaterSteam” +0300075EN - rel. 1.2 - 29.09.2015
heaterSteam
Alarm
Steam
Drain
Fill
x1000
SEL
reset
PRG
drain
heaterSteam
Alarm
Steam
Drain
Fill
x1000
SEL
reset
PRG
drain
heaterSteam
Alarm
Steam
Drain
Fill
x1000
SEL
reset
PRG
drain
heaterSteam
Alarm
Steam
Drain
Fill
x1000
SEL
reset
PRG
drain
5
Press the keys UP or
DOWN until reaching the
parameter the value of
which you want to set
6
Press SEL to display the
associated value
7
Increase or decrease the
value using respectively
the keys UP or DOWN, until
reaching the desired value
8
Press SEL to temporarily
save the new value and
display the parameter code
again;
Repeat steps 6) to 9) to set
other parameters
heaterSteam
Alarm
Steam
Drain
Fill
x1000
SEL
reset
PRG
drain
Caution:
• If no key is pressed while the value of a parameter is displayed,
after 5 s the display starts fl ashing and after about 1 minute it
shows the parameter code. Similarly, after 5 s the parameter
code starts fl ashing and after about 1 minute the control goes
back to the display standard view without saving the parameters'
modifi cations;
• To increase the scrolling speed, press and hold the UP or DOWN
button for at least 5 seconds;
9
To permanently save
the new values of the
parameters press PRG. This
exits the parameter setting
procedure
7.12 Procedures
7.12.1 Release software view
heaterSteam
Alarm
Steam
Drain
Fill
x1000
SEL
reset
PRG
drain
1. Press simultaneously PRG and UP;
2. The display shows the control software revision (e.g. 3.0)
7.12.2 Recalling the default generic parameters
Note: The defaults are generic and do not necessarily correspond
to the product confi guration. They are values made available to
re-start the controller from a base condition, not from a specifi c product
confi guration, therefore, the product confi guration should uploaded by
humiSet, CAREL software for setting the proper confi guration, after
recalling the defaults.
1. Switch the device off ;
2. Press and hold PRG;
3. Switch the device on;
heaterSteam
Alarm
Steam
Drain
Fill
x1000
SEL
reset
PRG
drain
4. The display shows the 3 dashes and then the upper dash;
5. Release the PRG button to confi rm the recall of the default
parameters; the upper dash will stay on for 2 seconds.
6. The operation is not performed if the PRG button is pressed for more
than 3 seconds, until the upper dash disappears.
Note: this procedure does not change the parameter relating to
the unit of measure (A1), it is thus recommended to check and if
necessary select and save the unit of measure as required, and then recall
the default parameters. In this way the default values will automatically
be converted.
