35
ENG
“heaterSteam” +0300075EN - rel. 1.2 - 29.09.2015
10. SPARE PARTS AND MAINTENANCE

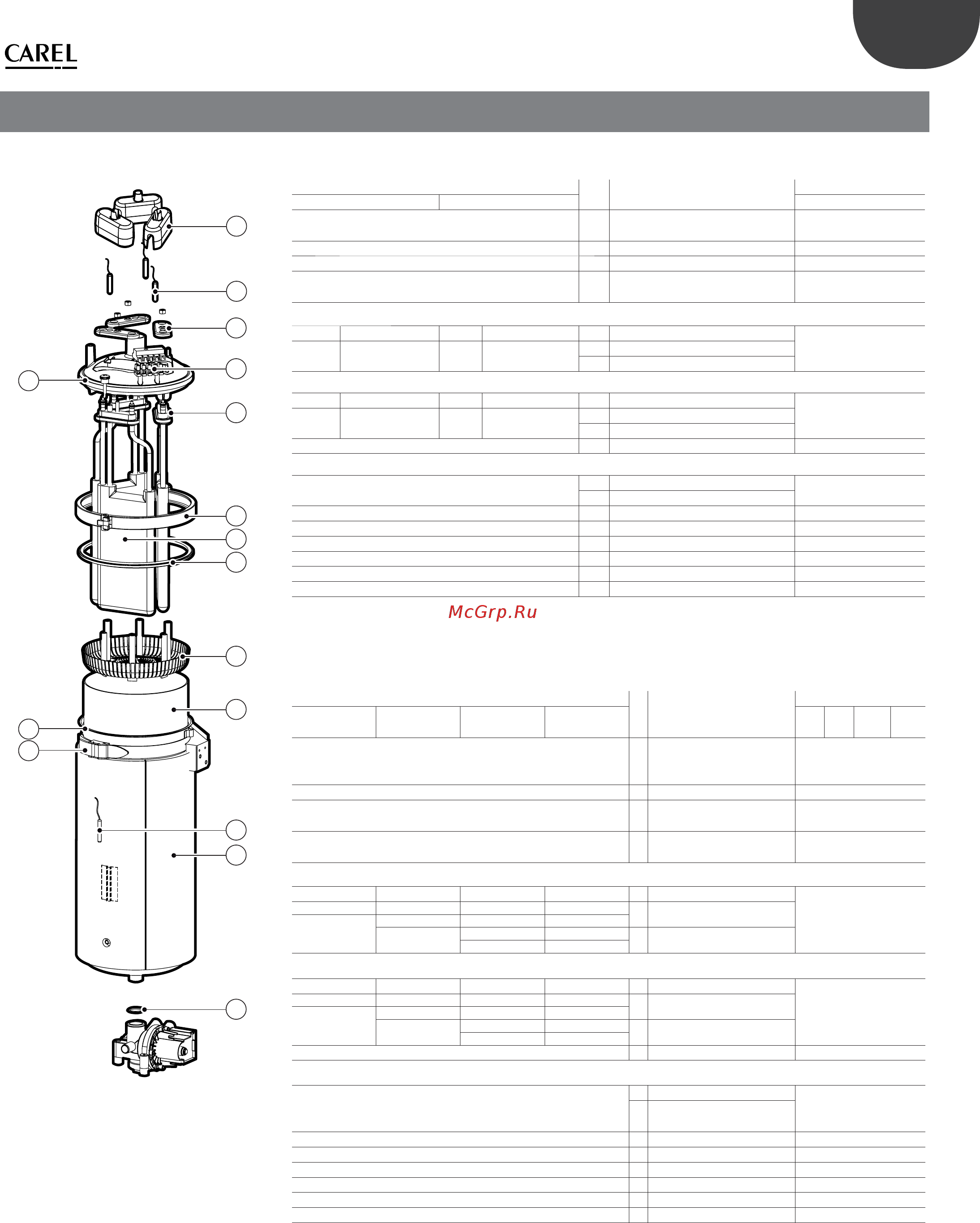

Exploded view models UR002- UR013
14
15
16
13
11
12
9
8
7
6
5
4
10
3
1
2
Fig. 10.a
code
N. description
no. of kit for single UR
UR 2 UR 4 UR 2 / UR 4
URKCR00020 1
"power connection protection
cover (single package)"
1
URKCOPC02S 16 boiler cover kit 1
URKPTCS020 2 PTC probe (single package) 1
URKTB00000 4
PTC probe wiring
terminal board kit
1
heater kit with non-adhesive fi lm (single package)
208V: URKH02A201 208V: URKH02A203 3 heater counter-fl ange
1
230V: URKH02A204 230V: URKH02A202
5 heater gasket
6 heater
low heater kit (single package) (not available in North American market)
208V: URKH02R101 208V: URKH02R103 3 heater counter-fl ange
1
230V: URKH02R104 230V: URKH02R102
5 heater gasket
6 heater
URKBR00000 7 cover closure strip 1
hydraulic kit
URKG20000M
8 boiler cover gasket
12 drain pump manifold o-ring
UEKF000020 9 boiler fi lter kit 1
URKNTC0000 10 NTC probe kit 1
URKB100020 15 steel boiler kit 1
URKBLOCK20 14 boiler fastening bracket 1
URKBAG1000 11 Lime collection bag 1
URKTI10000 13 Boiler thermal cover 1
Tab. 10.a
where not indicated “(single package)”, the kits comprise the quantity of parts needed for the specifi c machine
code
N. description
no. of kit for single UR
UR 6 - 1~ UR 6 - 3~ UR 10 - 3 ~ UR 13 - 3 ~
UR6
1 ~
UR6
3 ~
UR10
3 ~
UR13
3 ~
URKCR00020 1
"power connection
protective cover
(single package)"
3
URKCOPC02M 16 boiler cover kit 1
URKPTCS020 2
PTC probe (single
package)
3
URKTB00000 4
PTC probe wiring
terminal board kit
1
heater kit with non-adhesive fi lm (single package)
208V: URKH02A204 208V: URKH02A204 208V: URKH02A202 -
3 heater counter-fl ange
3
230V: URKH02A200 230V: URKH02A200 230V: URKH02A201 230V: URKH02A202
5 heater gasket
-
400V: URKH02A200 400V: URKH02A201 400V: URKH02A202
-
460V: URKH02A204 460V: URKH02A201
6 heater
- 575V: URKH02A200
low heater kit (single package) (not available in North American market)
208V: URKH02R104 208V: URKH02R104 208V: URKH02R102 -
3 heater counter-fl ange
3
230V: URKH02R100 230V: URKH02R100 230V: URKH02R101 230V: URKH02R102
5 heater gasket
-
400V: URKH02R100 400V: URKH02R101 400V: URKH02R102
-
460V: URKH02R104 460V: URKH02R101
6 heater
- 575V: URKH02R100
URKBR00000 7 cover closure strip 1
hydraulic kit
URKG20000M
8 boiler cover gasket
1
12
drain pump manifold
o-ring
UEKF000020 9 boiler fi lter kit 1
URKNTC0000 10 NTC probe kit 1
URKB100020 15 steel boiler kit 1
URKBLOCK20 14 boiler fastening bracket 1
URKBAG1000 11 Lime collection bag 1
URKTI10000 13 Boiler thermal cover 1
Tab. 10.b
where not indicated “(single package)”, the kits comprise the quantity of parts needed for the specifi c machine
