Carel UR053HL102 [25/72] Keypad
![Carel UR053HL102 [25/72] Keypad](/views2/1339072/page25/bg19.png)
25
ENG
“heaterSteam” +0300075EN - rel. 1.2 - 29.09.2015

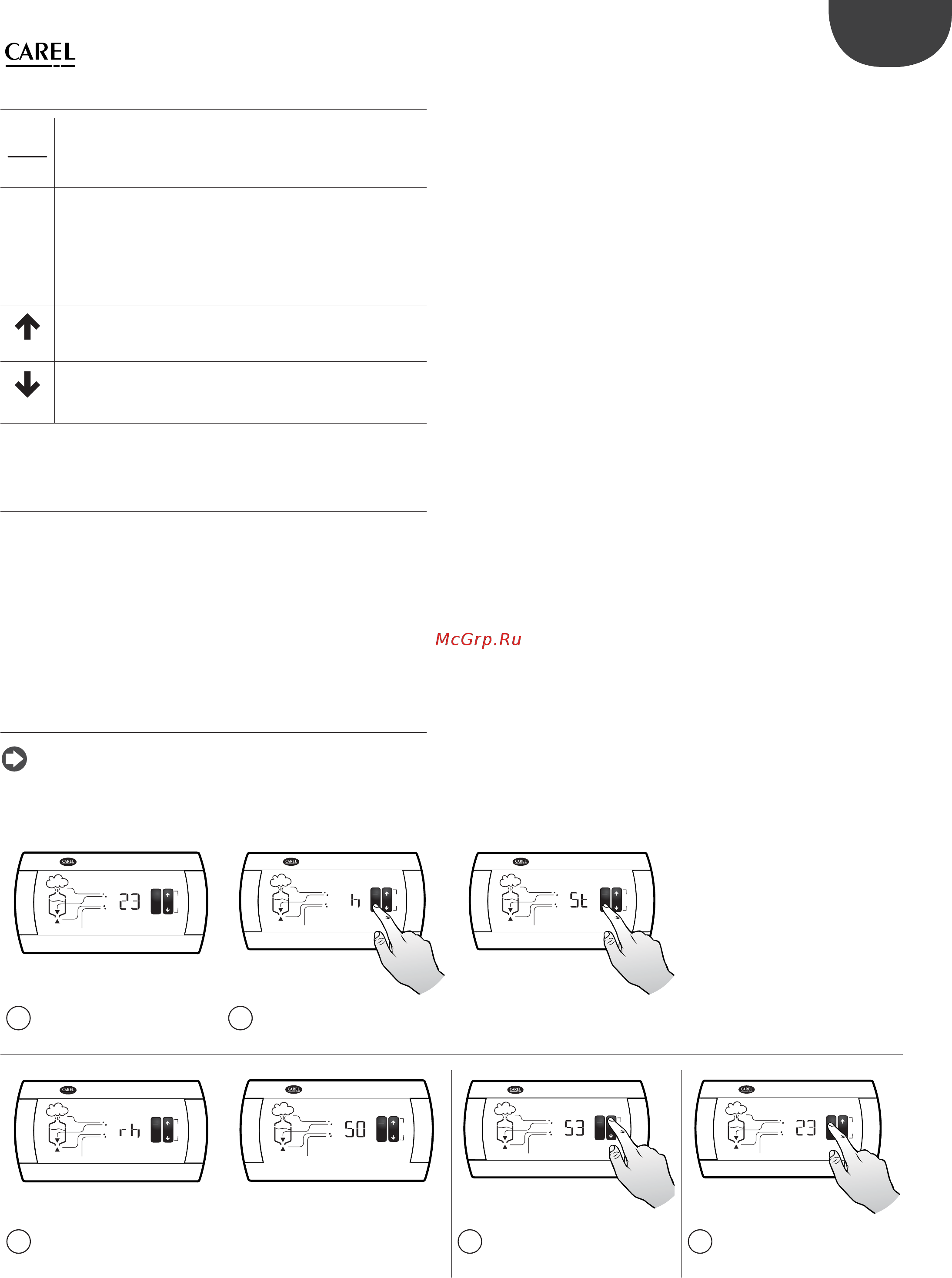

7.7 Keypad
reset
PRG
Pressing the button alone:
• Press for 5 s: access to the adjusting (P...) and reading (d...) parame-
ters
• reset alarm relay (if the alarm is no longer active)
SEL
Pressing the button alone:
• Displays the unit of measure of the value shown on the display;
• Press for 2 s: access to setpoint display/programming
Pressing together with other buttons:
• Pressed together with PRG/reset for 5 s gives access to all the
parameters, including the confi guration ones
UP
Pressing the button alone:
• Displays the value measured by the temperature/humidity probe:
• Increase/go to the next parameter
DOWN
Pressing the button alone:
• Displays the value measured by the humidity limit probe (if appli-
cable)
• Decrease/go to the previous parameter
7.8 Programming
The operating parameters can be modifi ed using the front keypad.
Access diff ers depending on the type:
• set point;
• adjusting and reading parameters;
• confi guration parameters.
Access to the confi guration parameters is protected by a password that
prevents unwanted modifi cations or access by unauthorised persons.
7.9 Setting the set point (St)
Note: For H-type humidifi ers the set point is expressed in % r.H.,
for type-T humidifi ers (for steam baths) the set point is expressed
in temperature.
To set the set point (default= 50% r.H. or 20°C)
Procedure:
heaterSteam
Alarm
Steam
Drain
Fill
x1000
SEL
reset
PRG
drain
heaterSteam
Alarm
Steam
Drain
Fill
x1000
SEL
reset
PRG
drain
heaterSteam
Alarm
Steam
Drain
Fill
x1000
SEL
reset
PRG
drain
1
The display shows standard
view
2
Press SEL for 2 s until "St" is displayed;
heaterSteam
Alarm
Steam
Drain
Fill
x1000
SEL
reset
PRG
drain
heaterSteam
Alarm
Steam
Drain
Fill
x1000
SEL
reset
PRG
drain
heaterSteam
Alarm
Steam
Drain
Fill
x1000
SEL
reset
PRG
drain
heaterSteam
Alarm
Steam
Drain
Fill
x1000
SEL
reset
PRG
drain
3
Release the SEL key. the unit of measurement and the set point are
displayed in succession
4
press UP/DOWN to reach the
desired value
5
press PRG or SEL to save the
St new value and exit the
Set Point setting procedure
