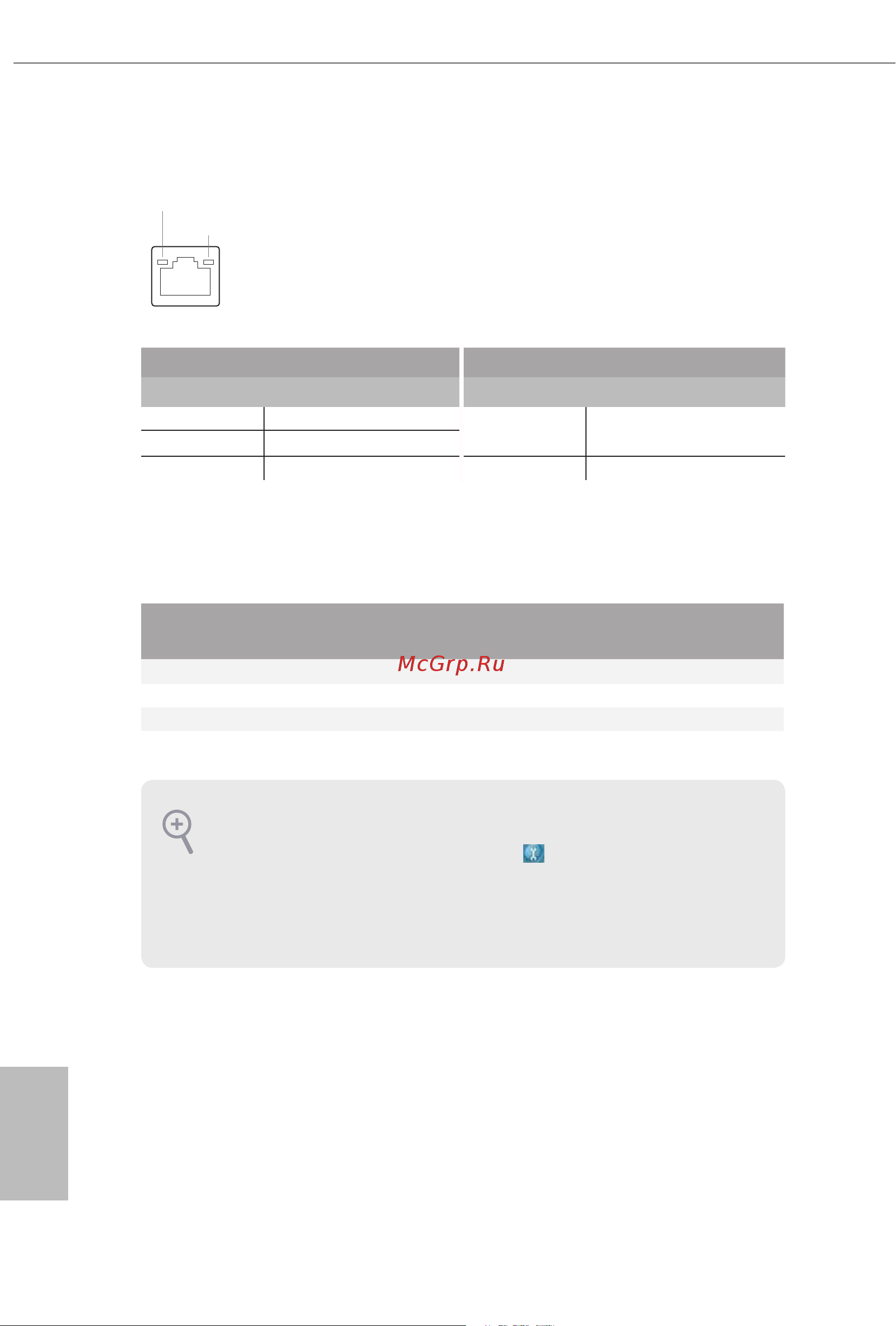

** ere are two LEDs on each 5G LAN port. Please refer to the table below for the 5G LAN port LED indications.

Activity / Link LED Speed LED

Status Description Status Description

O No Link Orange 100Mbps/1Gbps/2.5Gbps

connection

Blinking Data Activity

On Link Green 5Gbps connection

*** If you use a 2-channel speaker, please connect the speaker’s plug into “Front Speaker Jack”. See the table below

for connection details in accordance with the type of speaker you use.

Audio Output

Channels

Front Speaker

(No. 9)

Rear Speaker

(No. 7)

Central / Bass

(No. 6)

Line In

(No. 8)

2 V -- -- --

4 V V -- --

6 V V V --

8 V V V V

**** ACPI wake-up function is not supported on USB3_34 ports.

To enable Multi-Streaming, you need to connect a front panel audio cable to the

front panel audio header. Aer restarting your computer, you will nd the “Mixer”

tool on your system. Please select “Mixer ToolBox” , click “Enable playback

multi-streaming”, and click “ok”. Choose “2CH”, “4CH”, “6CH”, or “8CH” and then

you are allowed to select “Realtek HDA Primary output” to use the Rear Speaker,

Central/Bass, and Front Speaker, or select “Realtek HDA Audio 2nd output” to use

the front panel audio.

ACT/LINK LED

SPEED LED

5G LAN Port
