All instruction on the following pages must be carried out

by a competent person (corgi registered) in compliance

with gas safety (installation and use) regulation 1984.

Important: disconnect the cooker from the electrycity

and gas supply when any adjustment, etc.

Positioning your appliance

Important: this appliance may be installed and used only

in permanently ventilated rooms in compliance with current

directives. The following precautions should be taken:

a) The room must be provided with an external exhaust

system obtained with a hood or with an electric

ventilator that goes on automatically each time the unit

is switched on.

In the case of chimneys or flues Directly to the

with branches (for cookers) exterior

b) The room must be provided with a system for air inflow

which is necessary for a regular combustion. The air

flow necessary for the combustion should be at least 2

/h for kW of installed power. The system may be

realized by drawing the air directly from outside the

building through a pipe that has at least a 100 cm

useable section and which must not be accidently

obstructed (Fig. A). And further it may be realized

indirectly from other adjacent rooms which are provided

with a ventilation pipe for the expulsion of the fumes to

the outside of the building as foresaid, and which must

not be part of the building in common use or rooms

with risk of fire, or bedrooms (Fig. B).

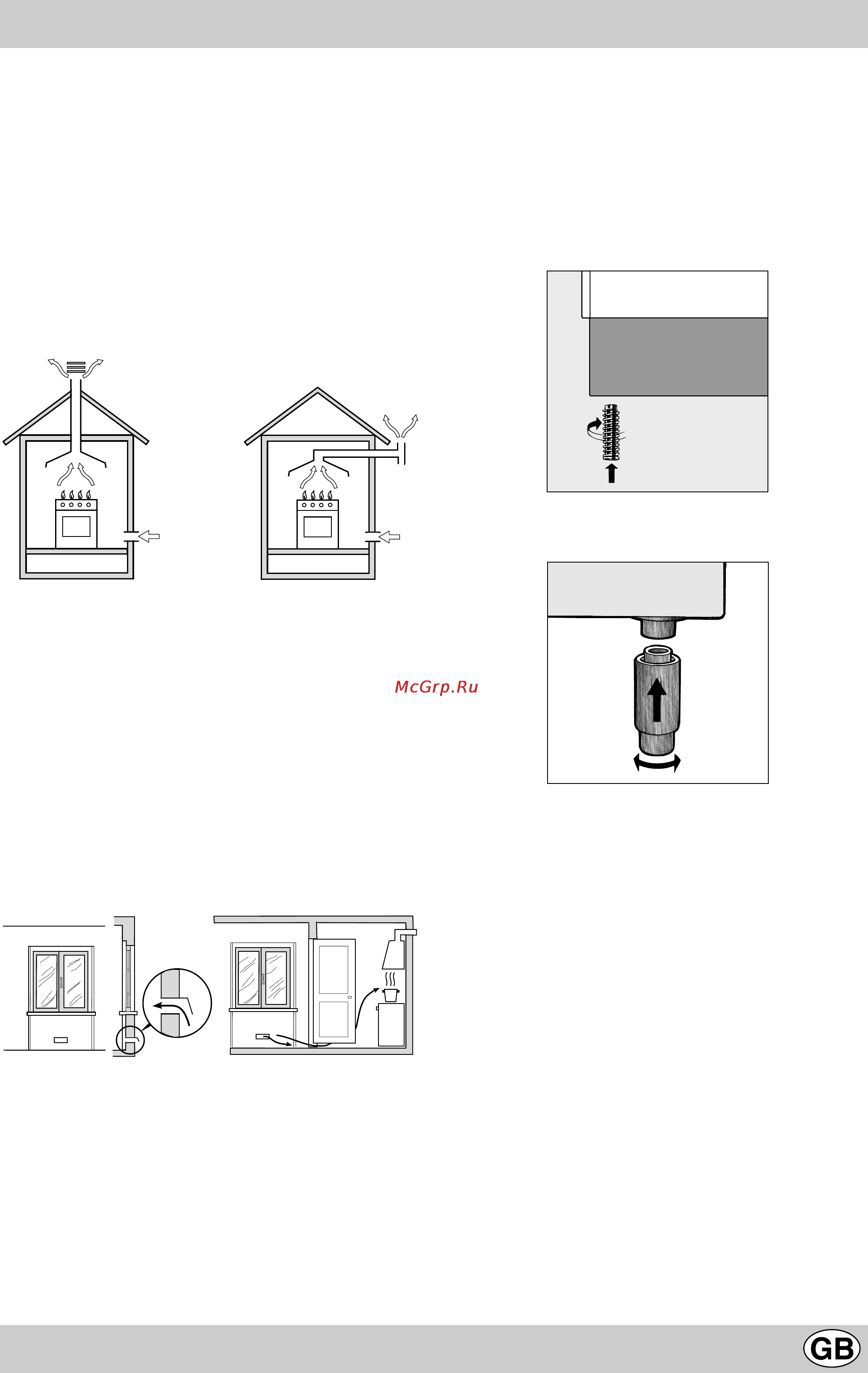

Detail A Adjacent Room to

room be ventilated

Fig. A Fig. B

Examples of ventilation openings Increased opening between

for the comburent air the door and and floor

c) During prolonged use of the appliance you may

consider it necessary to open a window to the outside

to improve ventilation.

d) The liquefied petroleum gases, which are heavier than

air, stagnate towards the ground. Therefore, the rooms

containing LPG cans must have openings towards the

outside in order to allow the venting from the ground of

eventual gas leak. Thus, the LPG cans must not be

installed or settled in rooms that are below the ground

level, (cellar, etc.) whether the cans are empty or

partially full. It is advisable to keep in the room only

the can which is being used, and it must be placed

away from direct heat sources (ovens, fireplaces,

stoves, etc.) that could make the can reach

temperatures higher than 50°C.

Levelling your appliance (only on a few models)

Your cooker is supplied with feet for levelling the appliance.

If necessary, these feet can be screwed into the housings

in the corners of the cooker base.

Mounting the legs (only on a few models)

Press-fit legs are supplied which fit under the base of your

cooker.

Installation of the cooker

The appliance can be installed next to furniture units which

are no taller than the top of the cooker hob. The wall in

direct contact with the back panel of the cooker must be

made of non-flammable material. During operation the

back panel of the cooker could reach a temperature of

50°C above room temperature. For proper installation of

the cooker, the following precautions must be taken:

a) The appliance can be placed in a kitchen, dining room

or bedsit, but not in a bathroom.

b) All furniture around the appliance must be placed at

least 200 mm from the top of the cooker, should the

surface of the appliance be higher than the worktop of

this furniture. Curtains should not be placed behind

the cooker or less than 200 mm away from the sides

of the appliance.

c) Any hoods must be installed according to the require-

ments in the installation manual for the hoods them-

selves.

d) If the cooker is installed beneath a wall cabinet, the

latter must be situated at a minimum of 420 mm above

the hob. The minimum distance between the worktop

and kitchen units made of combustible material is 700

mm.

e) The wall in direct contact with the back panel of the

cooker must be made of non-flammable materials.

Installation
