Chicago Pneumatic CP7630-6 [3/32] Cp7630 series

English

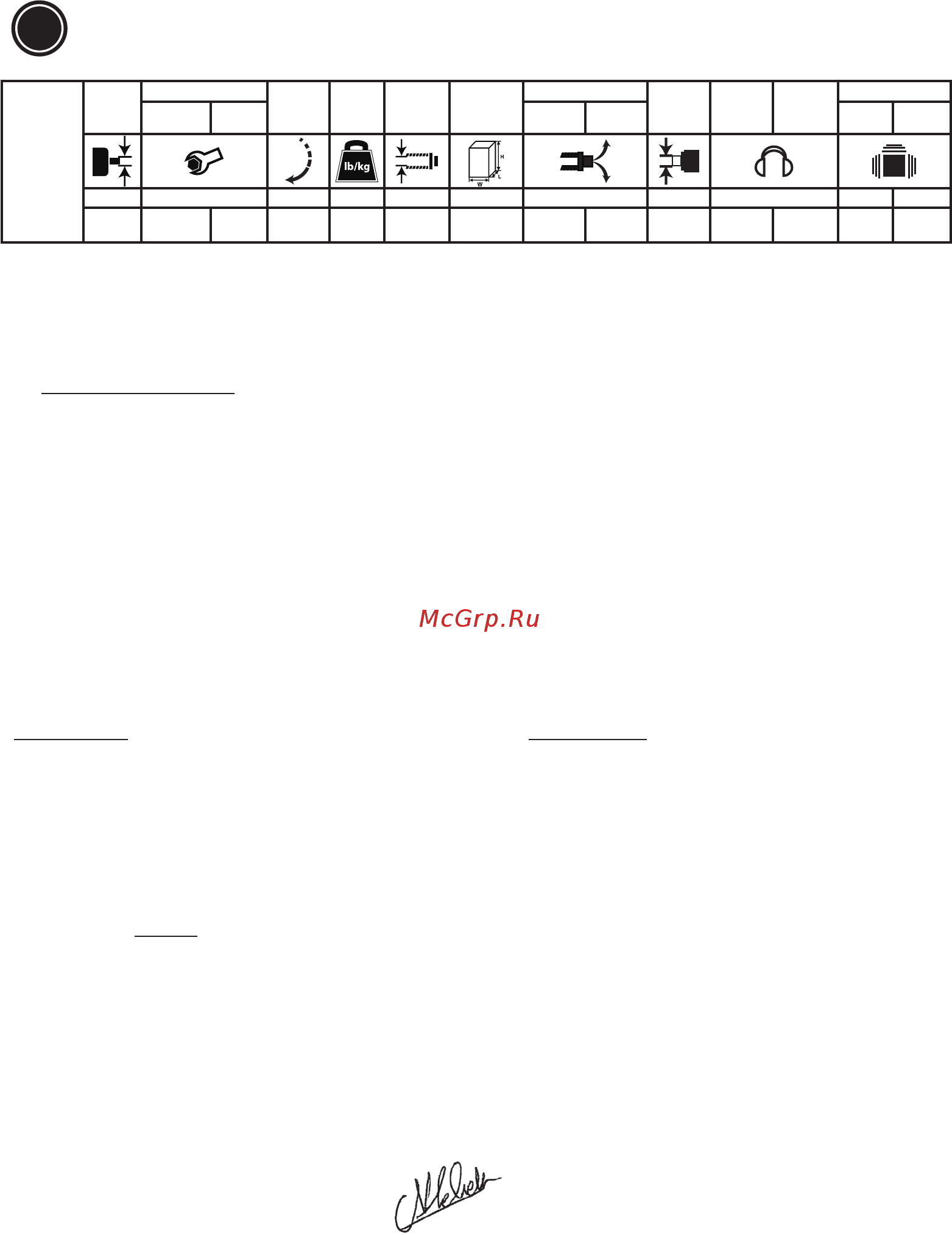

1. Technical Data (see Fig 2.)

CP7630 Series

Impact Wrench

max pressure 6.3 bar (90 psi)

:Vibration level, k Uncertainty ; L

Sound pressure level dB(A), K

= K

= 3 dB Uncertainty.

Declaration of noise (ISO 15744) and vibration emission (ISO 28927-2)

All values are current as of the date of this publication. For the latest information please visit www.cp.com.

These declared values were obtained by laboratory type testing in accordance with the stated standards and are suitable for comparison with the declared va-

lues of other tools tested in accordance with the same standards. These declared values are not adequate for use in risk assessments and values measured

in individual work places may be higher. The actual exposure values and risk of harm experienced by an individual user are unique and depend upon the way

the user works, the workpiece and the workstation design, as well upon the exposure time and the physical condition of the user.

We, CHICAGO PNEUMATIC TOOLS , cannot be held liable for the consequences of using the declared values, instead of values reecting the actual exposu-

re, in an individual risk assessment in a work place situation over which we have no control.

This tool may cause hand-arm vibration syndrome if its use is not adequately managed. An EU guide to managing hand-arm vibration can be found at www.

pneurop.eu/uploads/documents/pdf/PN3-02-NV_Declaration_info_sheet_0111.pdf

We recommend a programme of health surveillance to detect early symptoms which may relate to noise or vibration exposure, so that management proce-

dures can be modied to help prevent future impairment.

2. Machine Type

• This product is designed for installing and removing threaded fasteners in wood, metal and plastic. No other use permitted. For professional use only.

• Please read the product safety information carefully!

3. Implementation and Operation

• Connect device as shown in Fig.01.

• Fix the accessories properly to the tool.

• To operate in reverse rotation, turn the reverse switch (B) to the left. To operate in forward rotation, turn the reverse switch (B) to the right.

• To start the machine, simply pull the trigger (A). Machine speed is increase by increasing pressure on the trigger. Release the main switch to stop.

• This impact wrench is equipped with a regulator (B) to enable adjustment of output power. Turn the regulator knob counter-clockwise for maximum power,

clockwise to reduce power.

• Use the reverse switch (B) only when the drive spindle comes to a complete stop. Changing the speed before the drive spindle stops may damage the machi-

ne.

4. Lubrication

•

Motor Lubrication

•

Clutch Lubrication

Use an air line lubricator with SAE #10 oil, adjusted to two (2) drops per minute. If

an air line lubricator cannot be used, add air motor oil to the inlet once a day.

Recommended lubricant CP Oil PROTECTO-LUBE:

- 4 oz (0.12l) P/N: CA149661

- 20.8 oz (0.591l) P/N: CA000046

- 1gal (3.8l) P/N: P089507

Use CP Pneu-Lube Synthetic Clutch Grease 8940158455.

5. Maintenance

• Follow local country environmental regulations for safe handling and disposal of all components

• Disassemble and inspect the tool every three 3 months if the tool is used every day. Replace damaged or worn parts.

• Always ensure that the machine is disconnected from energy source (compressed air) to avoid accidental operation.

• High wear parts are underlined in the parts list.

• To keep downtime to a minimum, the following service kits are recommended:

Tune-Up Kit: see part list

6. Disposal

• The disposal of this equipment must follow the legislation of the respective country.

• All damaged, badly worn or improperly functioning devices MUST BE TAKEN OUT OF OPERATION.

• Repair only by technical maintenance staff.

7. Declaration of conformity

We : CHICAGO PNEUMATIC Tool Co. 1800 Overview Drive Rock Hill, SC 29730 - USA

Declare that the product(s): Impact Wrench

Machine type(s) : CP7630,CP7630-6 Serial Number: From 00501 to 99999

Origin of the product : China

is in conformity with the requirements of the council Directives on the approximation of the laws of the Member States relating : (8) to “Machinery“ 2006/42/EC (17/05/2006)

applicable harmonised standard(s) : EN ISO 11148-6:2012

Name and position of issuer : Nicolas Lebreton ( R&D Manager)

Place & Date : Saint-Herblain, 17/07/2013

Technical le available from EU headquarter. Nicolas Lebreton R&D manager LLC CP Technocenter 38, rue Bobby Sands - BP10273 44800 Saint Herblain - France

Original Instructions

Use only authorized parts. Any damage or malfunction caused by the use of unauthorized parts is not covered by Warranty or Product Liability.

Model

Drive

Torque

Speed Weight

Inner Hose

Dia.

Dimension

L x W x H

Air Consumption

Air Inlet

Sound-

Pressure

Sound-

Power

Vibrations

Working Max

Average At load

ahd k

1 2 3 4 5 6 7 8 9 10 11

[inch]

[ft.lbs]

[Nm]

[ft.lbs]

[Nm]

[min-1]

[lb]

[kg]

[inch.]

[mm]

[inch.]

[mm]

[SCFM]

[Nl/s]

[SCFM]

[Nl/s]

[inch] [dB(A)] [dB(A)] [m/s²] [m/s²]
