CP3650 Series
Die Grinders
Original Instructions
Copyright 2012, Chicago Pneumatic Tool Co. LLC
All rights reserved. Any unauthorized use or copying of the contents or
part thereof is prohibited. This applies in particular to trademarks, model
denominations, part numbers and drawings. Use only authorized parts.
Any damage or malfunction caused by the use of unauthorized parts is
not covered by Warranty or Product Liability.
Noise & Vibration Declaration*
Type CP Name
Vibration
level a
(1)
(m/s²)
Uncertainly k
(1)
(m/s²)
Sound pres-
sure level
(2)
(dBA)
Die Grinder CP3650-120ACC 5 3,1 82
(1) Vibration value re. ISO 20643.
(2) Uncertainly 3 dB(A), in accordance with EN ISO 15744. For Sound
power, add 11 dB(A)
Declaration of noise and vibration emission
All values are current as of the date of this publication. For the latest
information please visit cp.com.
These declared values were obtained by laboratory type testing in
accordance with the stated standards and are suitable for comparison
with the declared values of other tools tested in accordance with the
same standards. These declared values are not adequate for use in risk
assessments and values measured in individual work places may be
higher. The actual exposure values and risk of harm experienced by an
individual user are unique and depend upon the way the user works, the
workpiece and the workstation design, as well upon the exposure time
and the physical condition of the user.
We, Chicago Pneumatic, cannot be held liable for the consequences
of using the declared values, instead of values reecting the actual
exposure, in an individual risk assessment in a work place situation over
which we have no control.
This tool may cause hand-arm vibration syndrome if its use is not
adequately managed. An EU guide to managing hand-arm vibration
can be found at www.pneurop.eu/uploads/documents/pdf/PN3-02-
NV_Declaration_info_sheet_0111.pdf
We recommend a programme of health surveillance to detect early
symptoms which may relate to noise or vibration exposure, so that
management procedures can be modied to help prevent future
impairment.
MANUFACTURER’S LIMITED WARRANTY
Limited Warranty: The “Products” of the Chicago Pneumatic Tool Co. LLC
(“CP”) are warranted to be free from defects in material and workmanship for
one year from the date of purchase. This Warranty applies only to Products
purchased new from CP or its authorized dealers. Of course, this Warranty
does not apply to products which have been abused, misused, modied, or
repaired by someone other than CP or its Authorized Service Representatives.
If a CP Product proves defective in material or workmanship within one year
after purchase, return it to any CP Factory Service Center or Authorized Service
Center for CP tools, transportation prepaid, enclosing your name and address,
adequate proof of date of purchase, and a short description of the defect. CP
will, at its option, repair or replace defective Products free of charge. Repairs
or replacements are warranted as described above for the remainder of the
original warranty period. CP’s sole liability and your exclusive remedy under this
Warranty is limited to repair or replacement of the defective Product. (There Are
No Other Warranties Expressed Or Implied And CP Shall Not Be Liable For
Incidental, Consequential, Or Special Damages, Or Any Other Damages,
Costs Or Expenses Excepting Only The Cost Or Expense Of Repair Or
Replacement As Described Above.)
INSTRUCTION MANUAL
Machine Type:
Power tool equipped with 1/4 in. or 6 mm collet chuck for use with various
burrs for polishing and grinding - No other use is permitted.
Air Supply Requirements
1. Supply tool with 90 psig (6.3 bar) of clean, dry air. Higher pressure
drastically reduces tool life.

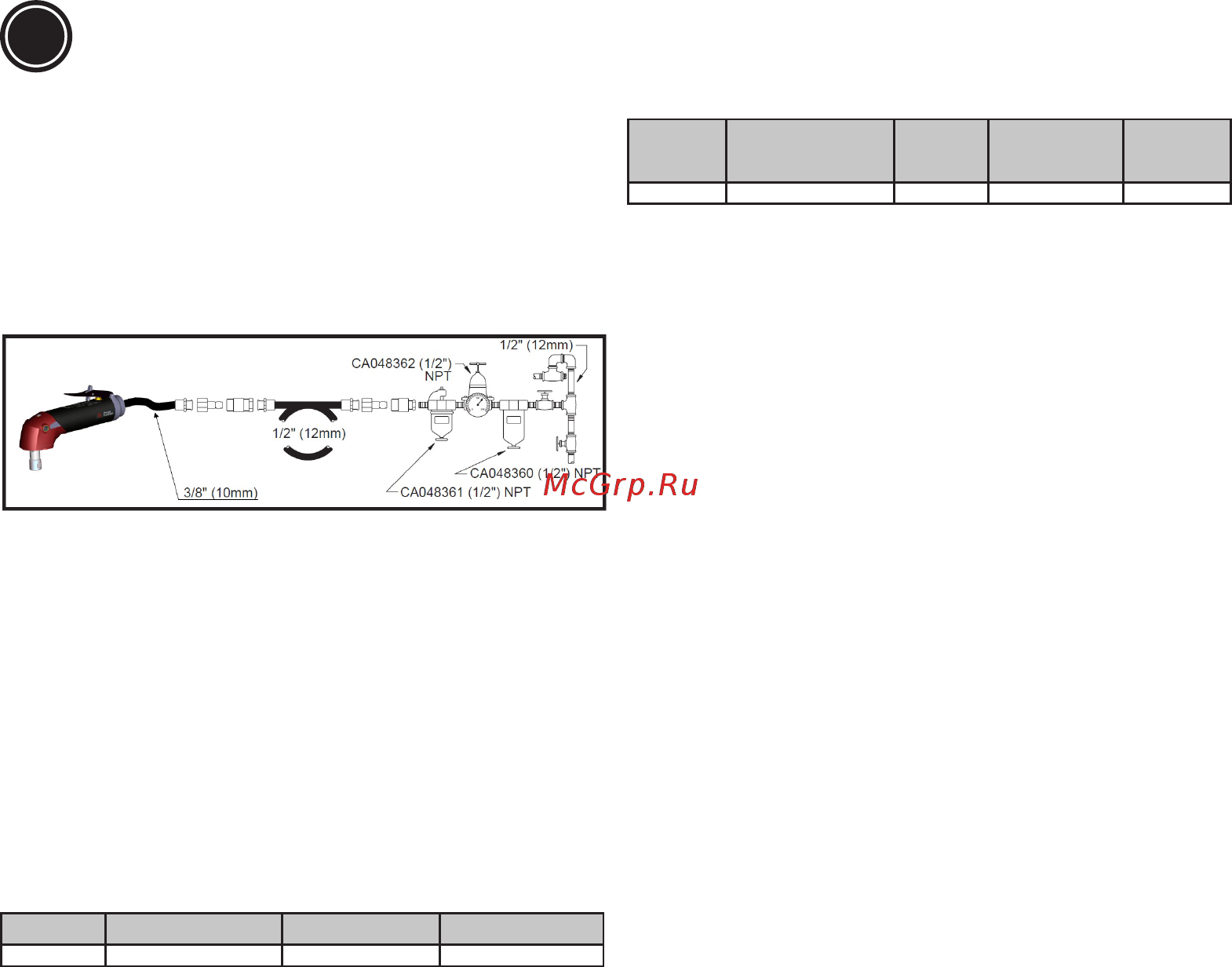

2. Connect tool to air line using pipe, hose and tting sizes shown in the
diagram below.
3. Do not install a quick coupler directly into the grinder throttle handle.
Lubrication
Use an air line lubricator with SAE #10 oil, adjusted to two drops per
minute. If an air line lubricator cannot be used, add air motor oil to the
inlet once a day.
To obtain the maximum efcienty from the pneumatic tool, use the
correct quantity of grease for the bevel gear:
For tool speed 12000 / 13500 rpm put 3.5g
For tool speed 6000 / 7500 / 8500 rpm put 5g
Recommanded Grease
6159901490 (24g)
6159901480 (1Kg)
Maintenance
1. Disassemble and inspect tool every three months if the tool is used
every day. Replace damaged or worn parts.
2. To keep downtime to a minimum, the following service kits are
recommended:
Tune-Up Kit: 2050556003
Technical Data
Type CP Name Power Free speed RPM
Die Grinder CP3650-120ACC 2,3Hp (1700W) 12000
Air pressure 90psi (6.3bars)
English
EN
