3.8 Connections

Perform the connections exactly in the order described, otherwise electrostatic

charging can damage your computer and/or the electronics of the laser system.

3.8.1 Connecting the Mains

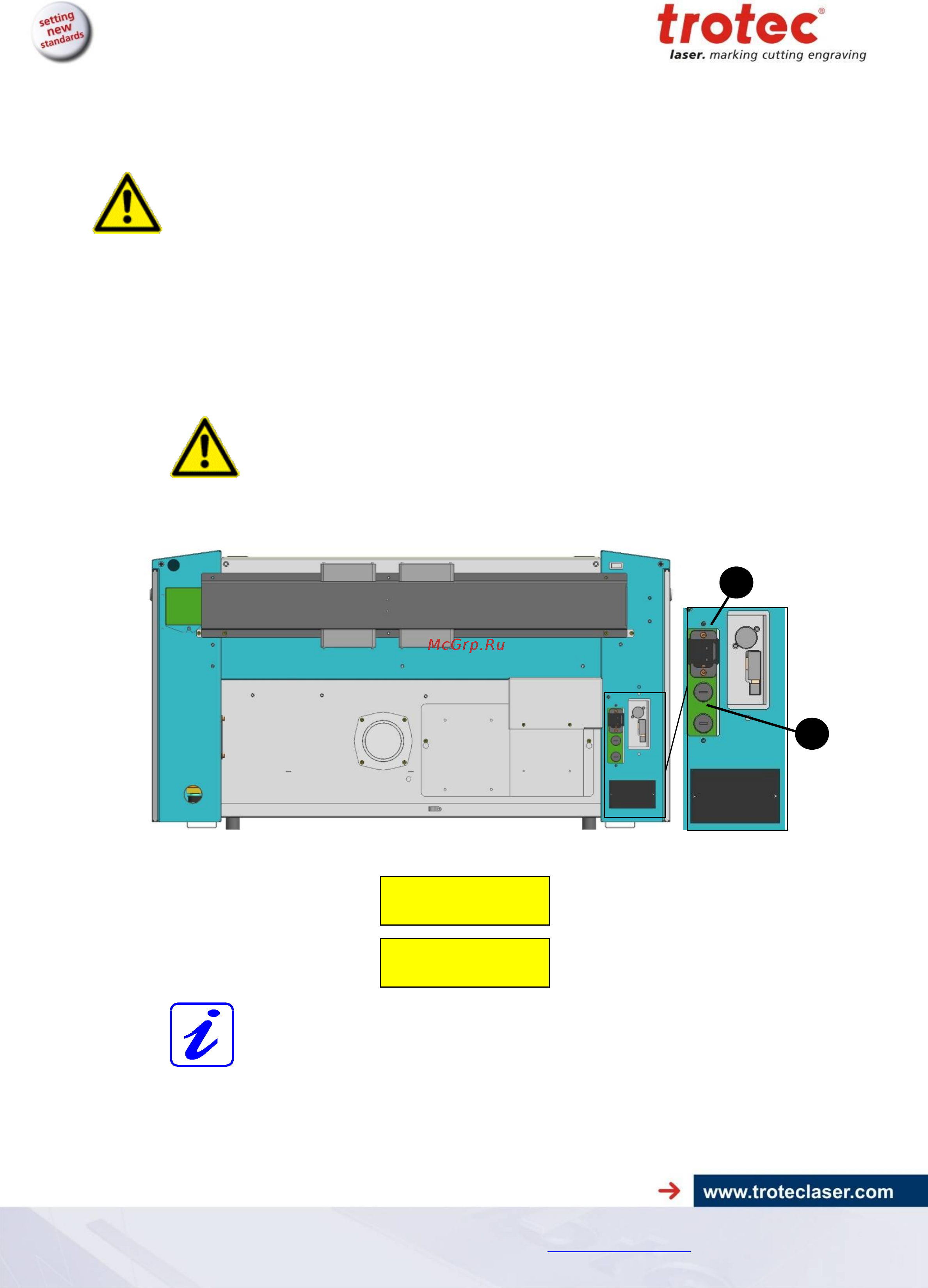

Connect one end of the mains cable with the connection socket (1) at the rear side

of the laser device (see Figure below) and the other end with a protected power

outlet.

Mains voltage and operating voltage must correspond (AC

230 V/50 Hz or AC 115 V/60 Hz) – see information label beside the

connection socket.

Under no circumstances switch on the device if the voltages do not

correspond.

The main fuses (2) are located below the connection socket and are

accessible from the exterior.

INPUT POWER

100-120VAC 60HZ

INPUT POWER

220-240VAC 50HZ
