SP 500
Version 2.0 © TROTEC Produktions- u. Vertriebs GmbH
25 / 51
Technical changes reserved Freilingerstraße 99, A-4614 Marchtrenk
www.troteclaser.com

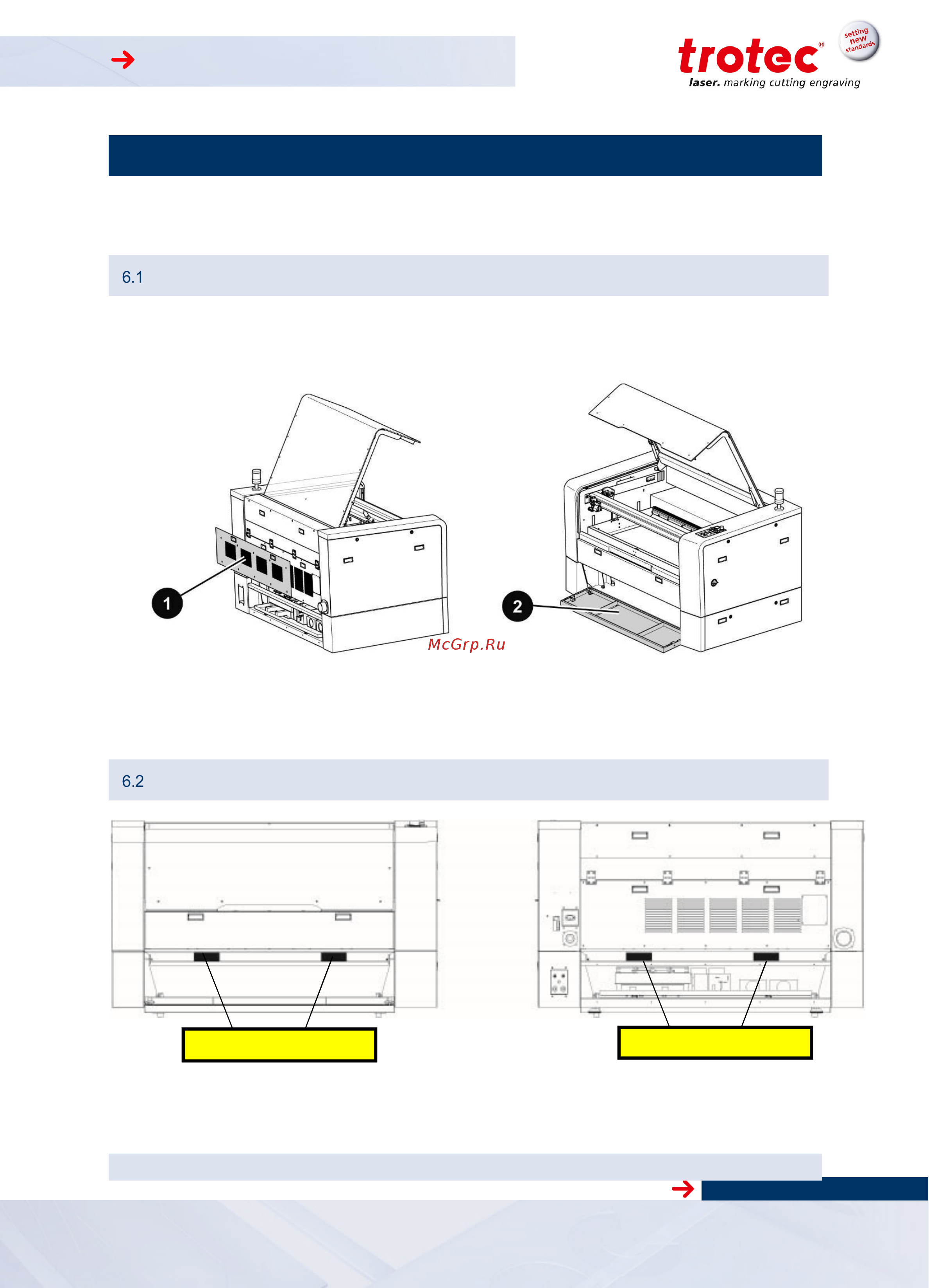

Transport - Storage – Setup
6 Transport – Storage - Setup
The machine has 4 rollers for moving it. All 4 feet must be fully screwed in before moving. The ma-
chine is also designed to be moved by forklift.
Forklift transport
Before moving the machine, perform the following on the base frame:
- Remove rear trim panel (1)
- Open the front door (2) with a 10mm Allen key
In addition, the following should be performed:
- Disconnect all attached lines.
- Fasten down all moving parts to stationary and sufficiently stable parts of the frame.
Lifting points
The machine may only be lifted and transported:
- Under the guidance of a 2nd person, and
- At the points identified.
After moving the machine, reinstall the rear trim panel (1) and close the door (2).
Lifting points
Lifting points
