SP 500
Version 2.0 © TROTEC Produktions- u. Vertriebs GmbH
43 / 51
Technical changes reserved Freilingerstraße 99, A-4614 Marchtrenk
www.troteclaser.com
3 Maintenance

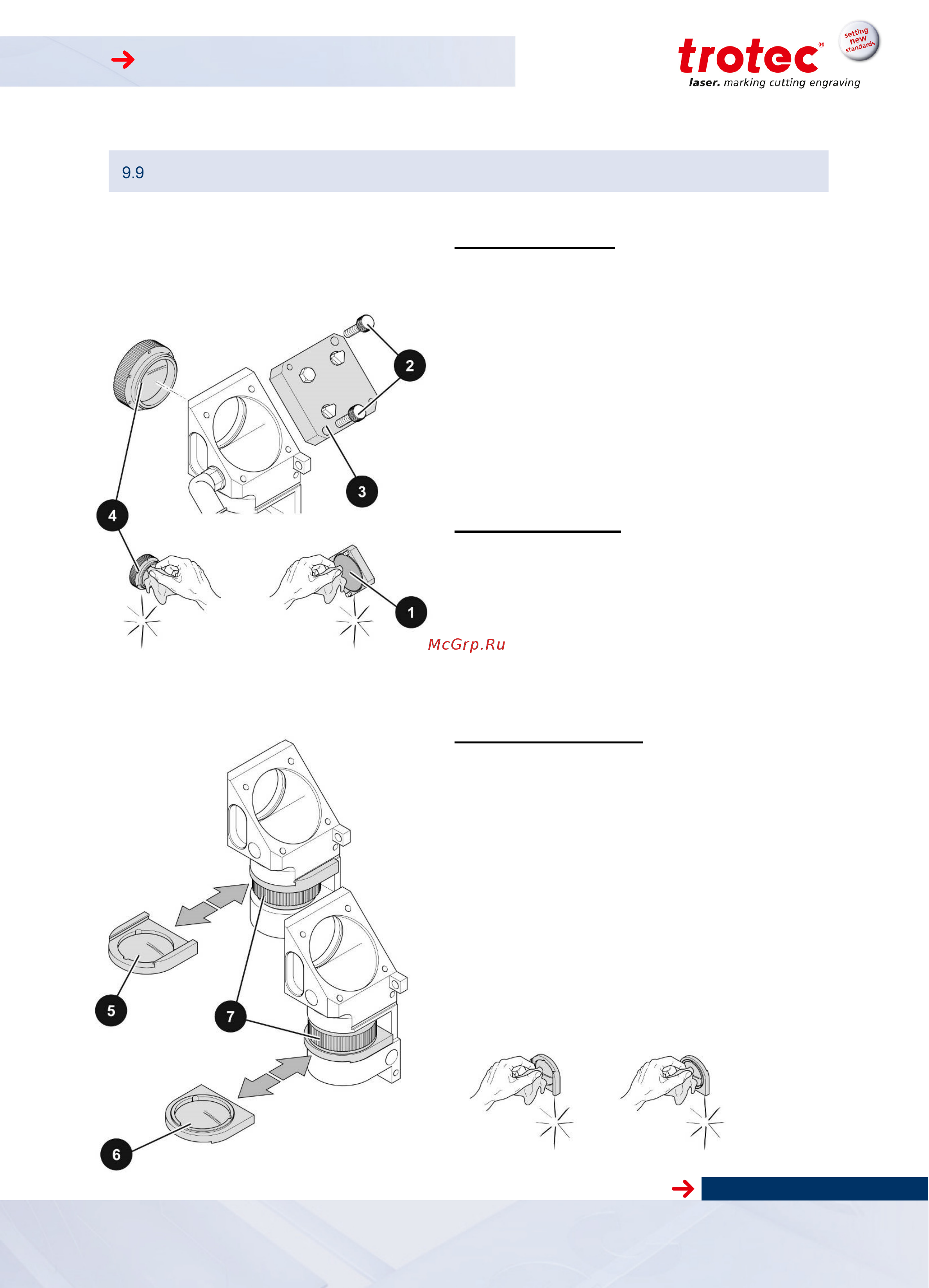

Cleaning optics on the Laser Head
Cleaning the mirror (1):
•
Loosen both screws (2)
•
Remove mirror mount (3)
•
Check mirror (1) for damage
•
Clean mirror (1) with cleaning liquid and cleaning
tissue
•
Check mirror (1) once again for damage
•
Reinstall mirror mount (3) and secure with
two screws (2)
Cleaning the 5” lens (4):
•
Unscrew 5“ lens (4)
•
Check 5“ lens (4) for damage
•
Clean both sides of 5“ lens (4) with cleaning liq-
uid and cleaning tissue
•
l
Check 5“ lens (4) once again for damage
Cleaning lenses (5) and (6)
•
Loosen lenses (5) and (6) by screwing
retainer inward (7)
•
Remove lenses (5) and (6)
•
Check lenses (5) and (6) for damage
•
Clean both sides of lenses (5) and (6) with clean-
ing liquid and cleaning tissue
•
Check lenses (5) and (6) once again for damage
•
Insert lenses (5) and (6) and clamp with
retaining ring (7)
