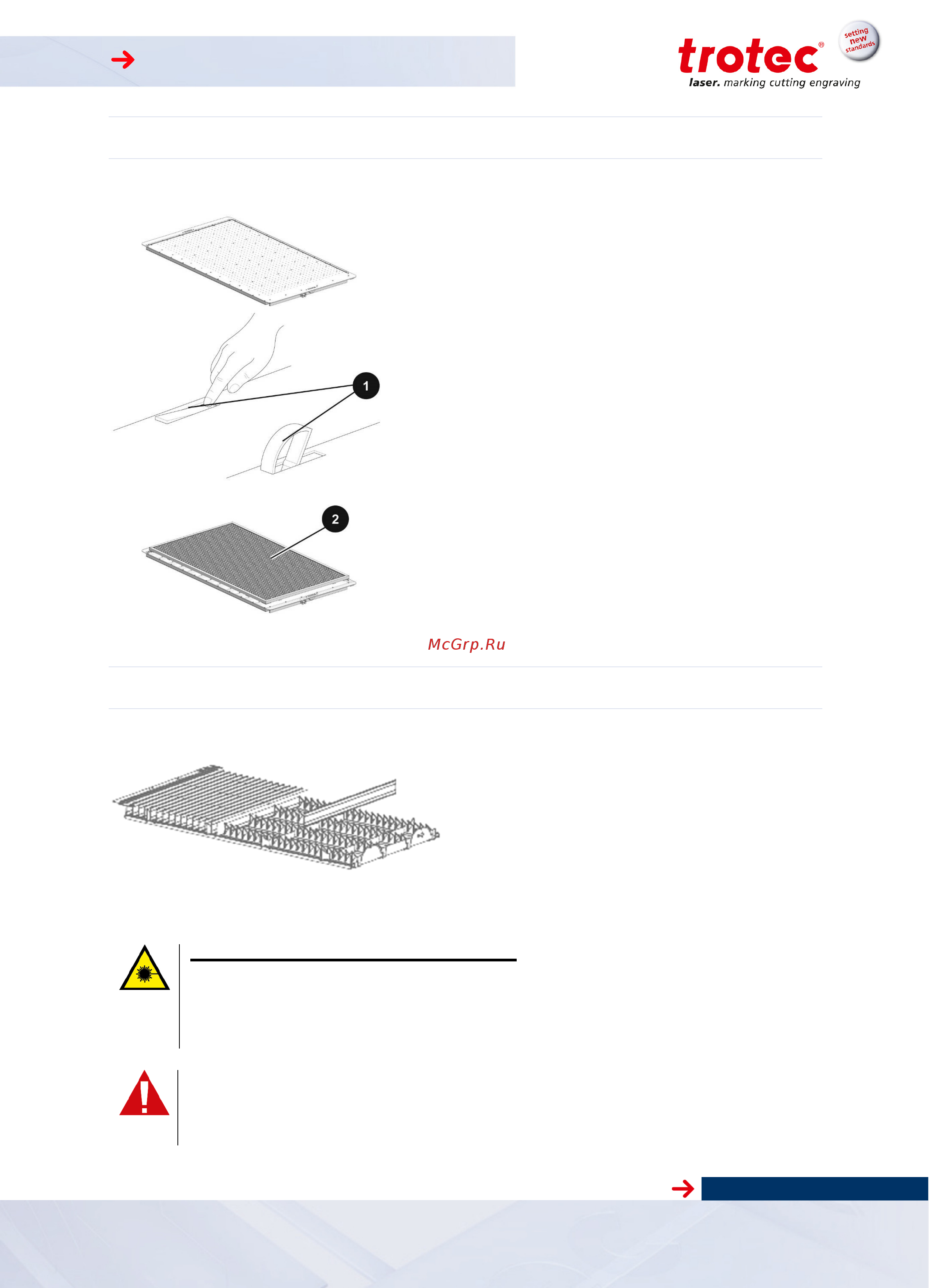

9.6.3 Vacuum Table

•

The vacuum table rests on the base frame and

is supported by additional braces there.

•

The vacuum table is only intended for engrav-

ing

and/or cutting thin and lightweight materials

such

as films, plastic laminates, veneers, thin sheets

of wood, paper, cardboard, and similar.

•

The entire surface of the vacuum table must

be covered to ensure the maximum vacuum

effect

•

Two swiveling handles (1) make it easier to

lift out the engraving table

To use them, swivel the handles (1) upward.

•

To ensure even better contact (2), the

“Contact” option is recommended.

9.6.4 Cutting Table

•

The cutting table rests on the base frame

and is supported by additional braces there.

•

Specially shaped air guides are used in the

cutting table. This ensures that parts falling into

the frame are not damaged by the laser.

Custom made acrylic bars may also be used.

Hazard when working with the cutting table!

f not all of the partition plates are used in the cutting table, there is a fire

hazard due to reflection of the laser beam.

Insert an anti-reflective material beneath the partition plates

It is not allowed to place Workpieces into the baseframe without a Table attach-

ment (e.g. Standard-, Vacuum- or Cutting Table).

This is important so no bending on the frame and impairment of the exhaust function is

possible
