SP 500
Version 2.0 © TROTEC Produktions- u. Vertriebs GmbH
38 / 51
Technical changes reserved Freilingerstraße 99, A-4614 Marchtrenk
www.troteclaser.com
Tables

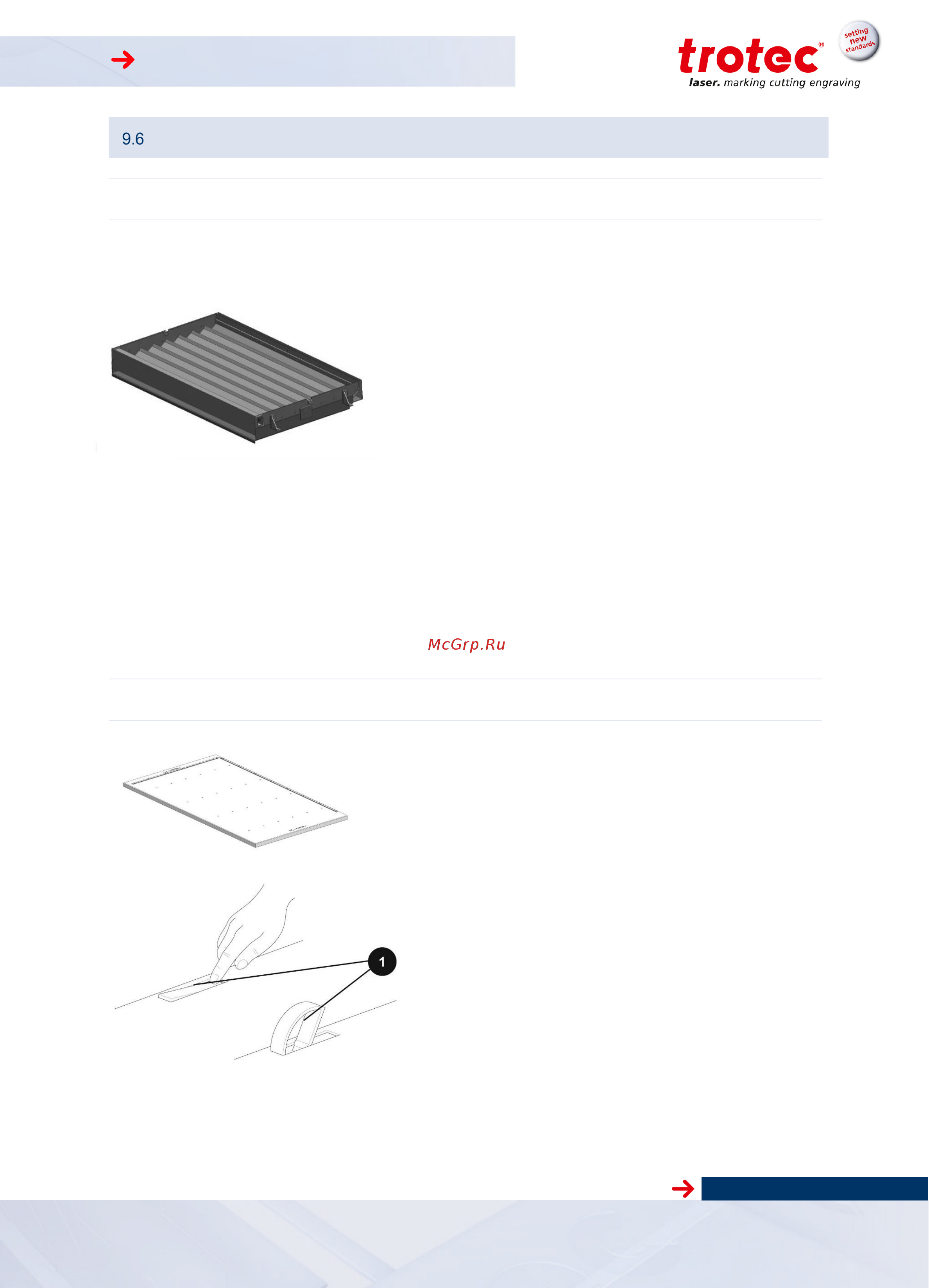

9.6.1 Base Frame (with/without lamellas)
The frame is permanently attached to the ma-
chine’s Z axis.
The following individual table variants are
placed on it (with our without lamellas):
- Engraving table
- Vacuum table
- Cutting table
The table is secured in the center by
mounted latching pins.
It is easy to remove parts that have fallen into
the frame via a door.
To do this, the table must be driven to
its lowermost position.
The “Rotary engraving attachment” option is
placed directly in the base frame.
9.6.2 Engraving Table (Standard table)
The engraving table rests on the base frame and
is supported by additional braces there.
The engraving table is only for engraving heavy
objects, such as metals, marble, granite, glass,
heavy wood and acrylic parts.
Two swiveling handles (1) make it easier to lift
out the engraving table. To use them, swivel the
handles (1) upward.
