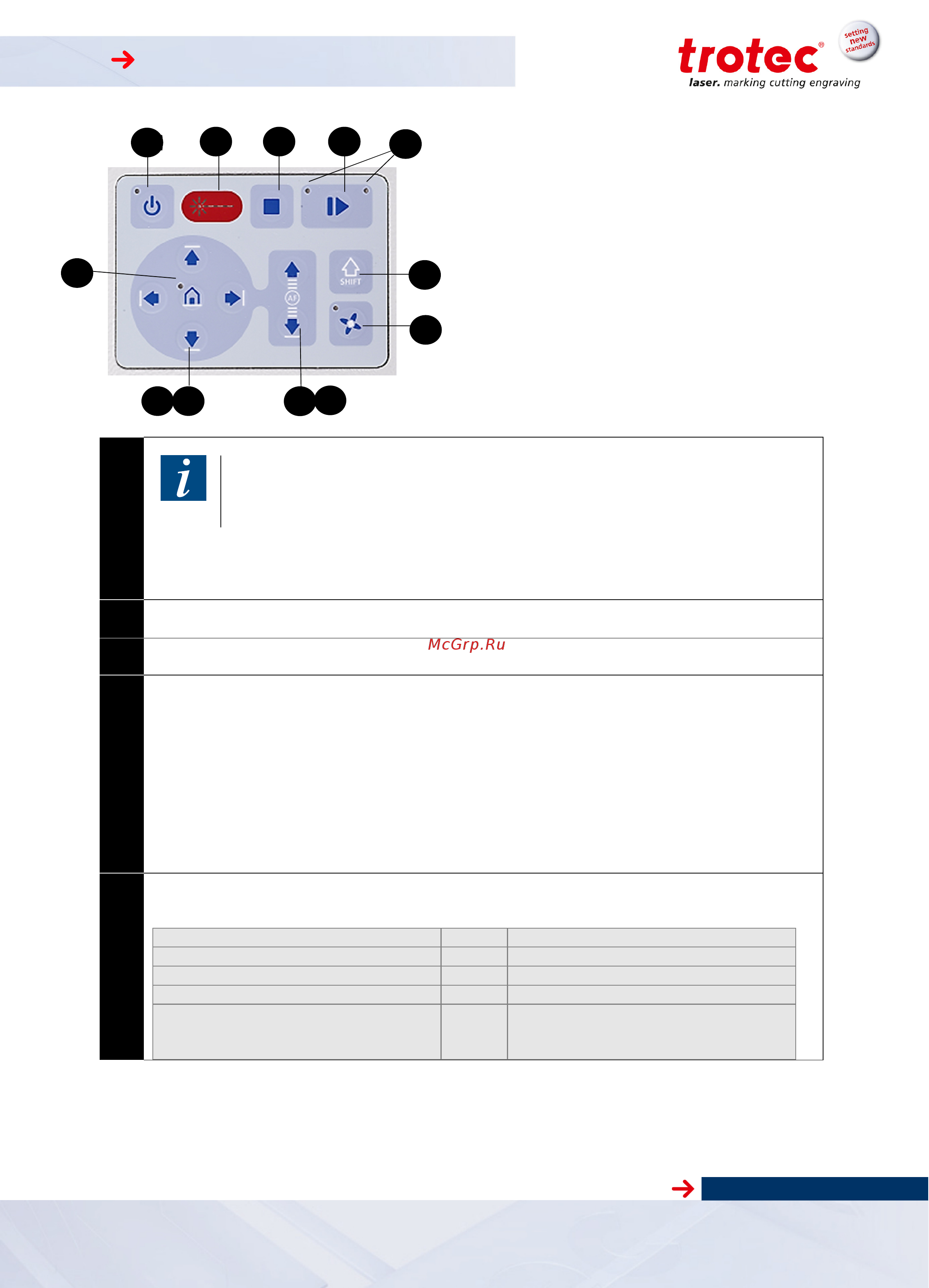

SP 500
Version 2.0 © TROTEC Produktions- u. Vertriebs GmbH
33 / 51
Technical changes reserved Freilingerstraße 99, A-4614 Marchtrenk
www.troteclaser.com
9
STANDBY
Switches the device into Standby mode (Laser ready, illumination off) - key lights
up.
By pressing the key again the device is switched back to Ready mode.
If the Standby button is pressed while the Z- axis is in an automatic move (e.g. autofocus), the
Standby mode is entered after finishing the Z- axis- move (Z- axis move can be stopped by
pressing any of the Z- axis keys).
10
LED status indicator: Laser b
usy
Indicates, that a laser beam is currently being emitted.
11
STOP
By pressing this button, the actual process running will be stopped.
12
Start/Pause/Repeat
Pressing the button with no Job running the actual Jobs positioned on the selected plate in Job-
Control are started.
Used to pause the current working process (key lights up). As soon as the last processing com-
mand is finished, the motion system stops.
If this key is pressed a second time, the key illumination goes off, the interrupted working pro-
cess is continued.
Pressing the button after a Job is finished will repeat the actual Jobs positioned on the selected
plate in JobControl. The Jobs will reset automatically.
13
Status Display
Indicates the current status of the device.
green, flashing slowly (0.5 Hz) 13 Machine is ready
green, flashing fast (2 Hz) 13 Cover has been opened
green permanent light / Pause mode 13 Data available in the machine
red permanent light 13 Laser beam is being emitted
green/red flashing alternately 13+10 Cover open during switch-on process,
simultaneously acoustic signal - no ref-
erencing
9
10
11
12
14
13
15
18
16
19
20
17
