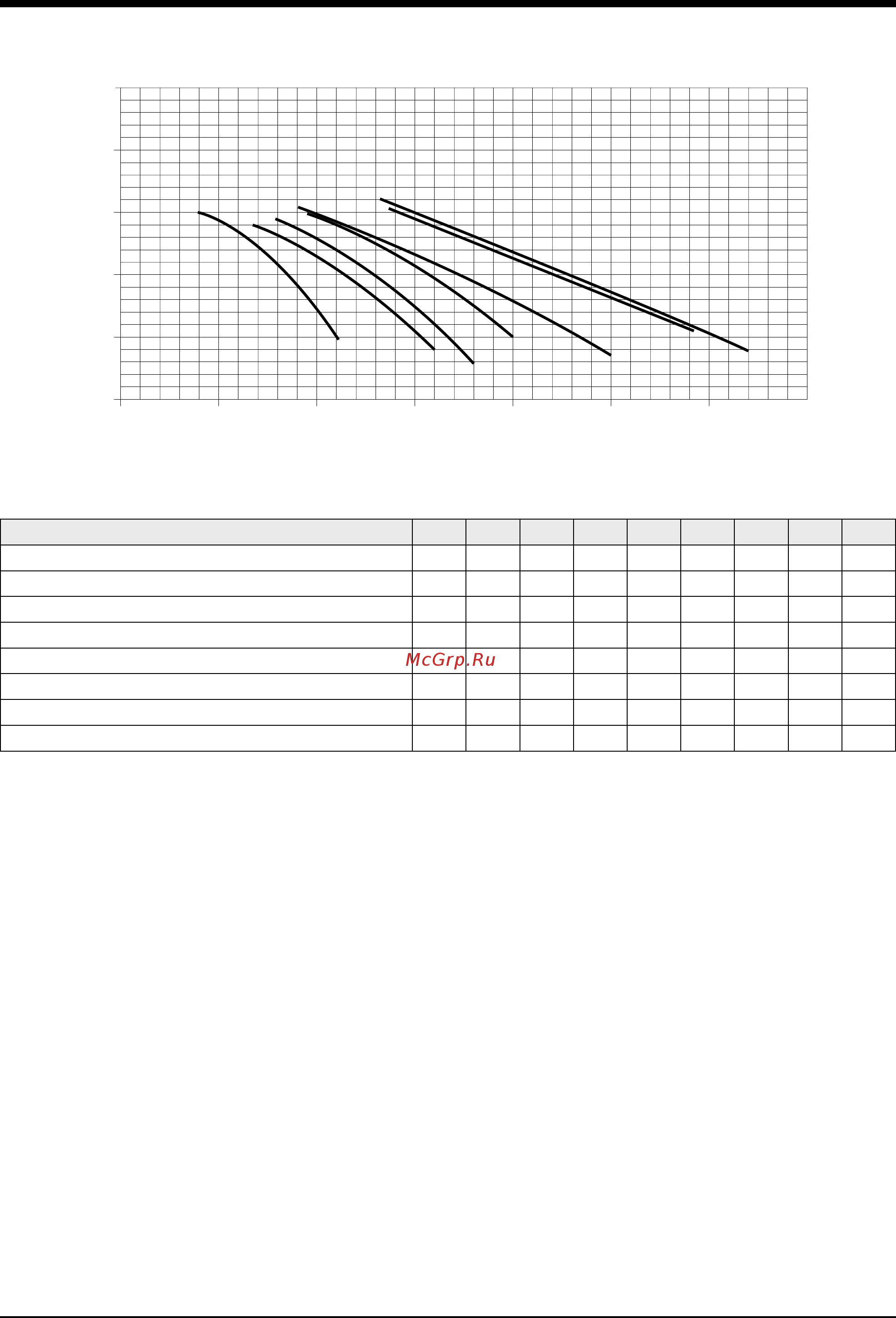

Integrated Hydraulic Module Data (optional)
CLH SIZES 182 202 242 302 352 402 502 552 602
Water tank volume - STD/LN/HPF/SIF
* litres 210 210 210 330 400 400 400 400 400
Water tank volume - ELN
litres 210 210 330 330 400 400 400 400 400
Expansion tank volume - STD/LN/HPF/SIF* litres 12 12 12 18 18 18 18 18 18
Expansion tank volume - ELN litres 12 12 18 18 18 18 18 18 18
Antifreeze electric heater kW 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2
Extra electric heating capacity (option 0) kW 24 24 32 32 32 48 48 48 48
Extra electric heating capacity (option 1) kW 32 32 48 48 48 56 56 56 56
Extra electric heating capacity (option 2) kW 48 48 56 56 56 64 64 64 64
l/h
kPa
CLH 182
CLH 202
CLH 242
CLH 302
CLH 352
CLH 402-502
CLH 552-602
0
0
50
100
150
200
250
5000 10000 15000 20000 25000 25000 35000
* SIF version for sizes 352 to 602 only.
