Airwell CLH 242 [22/28] Dimensions
![Airwell CLH 242 [22/28] Dimensions](/views2/1408643/page22/bg16.png)
Page 22

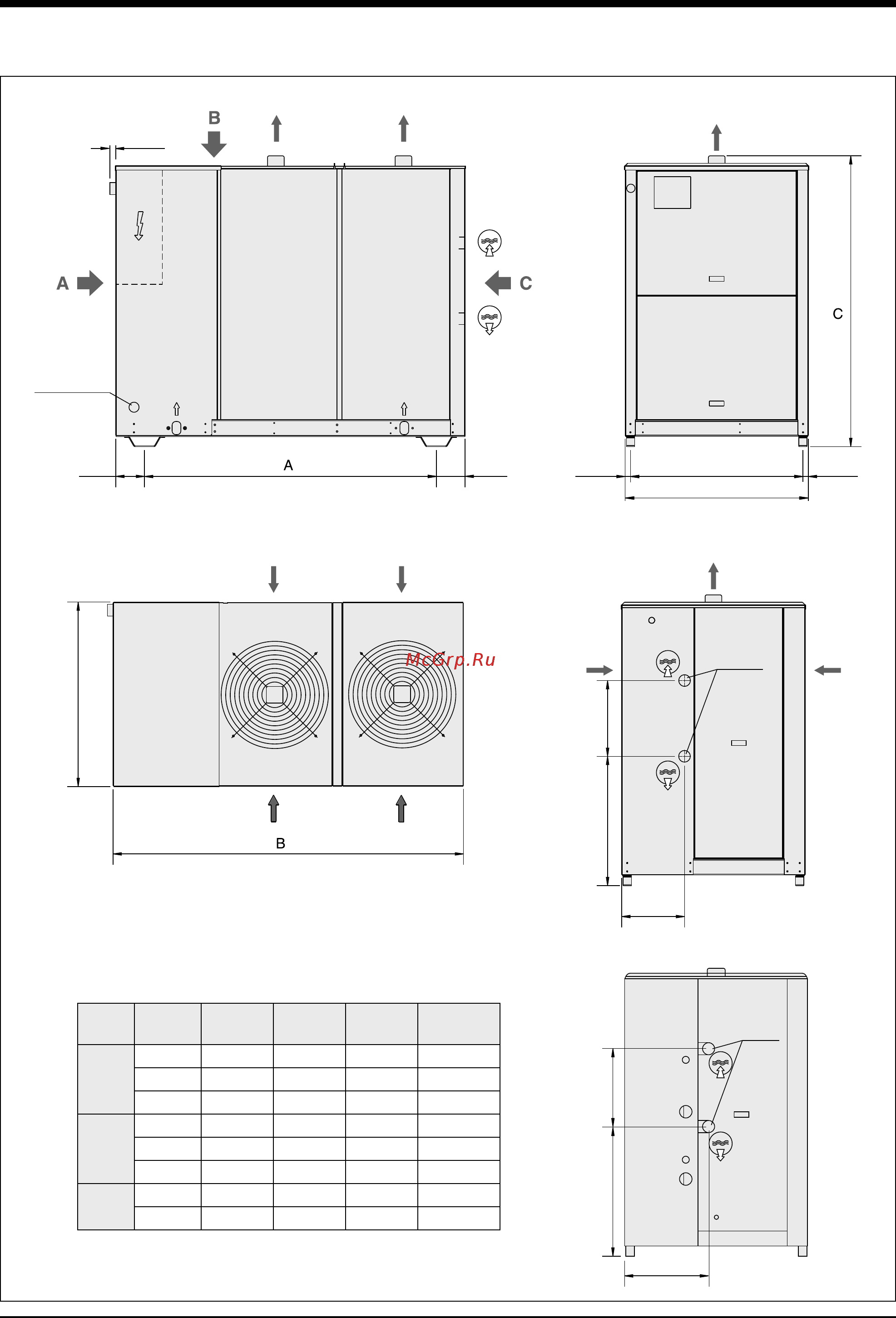

Dimensions
35 mm
only for
transport
Cable
entry
177 177 36.5 36.51037
1110
Lifting point
Lifting point
VIEW A
(+35 mm only for transport)
1100
470 404
368
2" male
VIEW CVIEW B
2" male
501
784 470
VIEW C
Models CLH 182÷242 STD/LN/HPF - CLH 182 ELN & 202 ELN
Unit with water tank
Unit without water tank
Models Versions
Dimensions
A (mm)
Dimensions
B (mm)
Dimensions
C (mm)
Number
of fans
CLH 182
Standard 1756 2110 1750 2
LN/HPF 1756 2110 1850 2
ELN 1756 2110 1850 2
CLH 202
Standard 1756 2110 1750 2
LN/HPF 1756 2110 1850 2
ELN 1756 2110 1850 2
CLH 242
Standard 1756 2110 1750 2
LN/HPF 1756 2110 1850 2
