TD-W8950ND 150Mbps Wireless Lite N ADSL2+ Modem Router User Guide

1.3 Panel Layout

1.3.1 The Front Panel

The Router’s LEDs are located on the front panel.

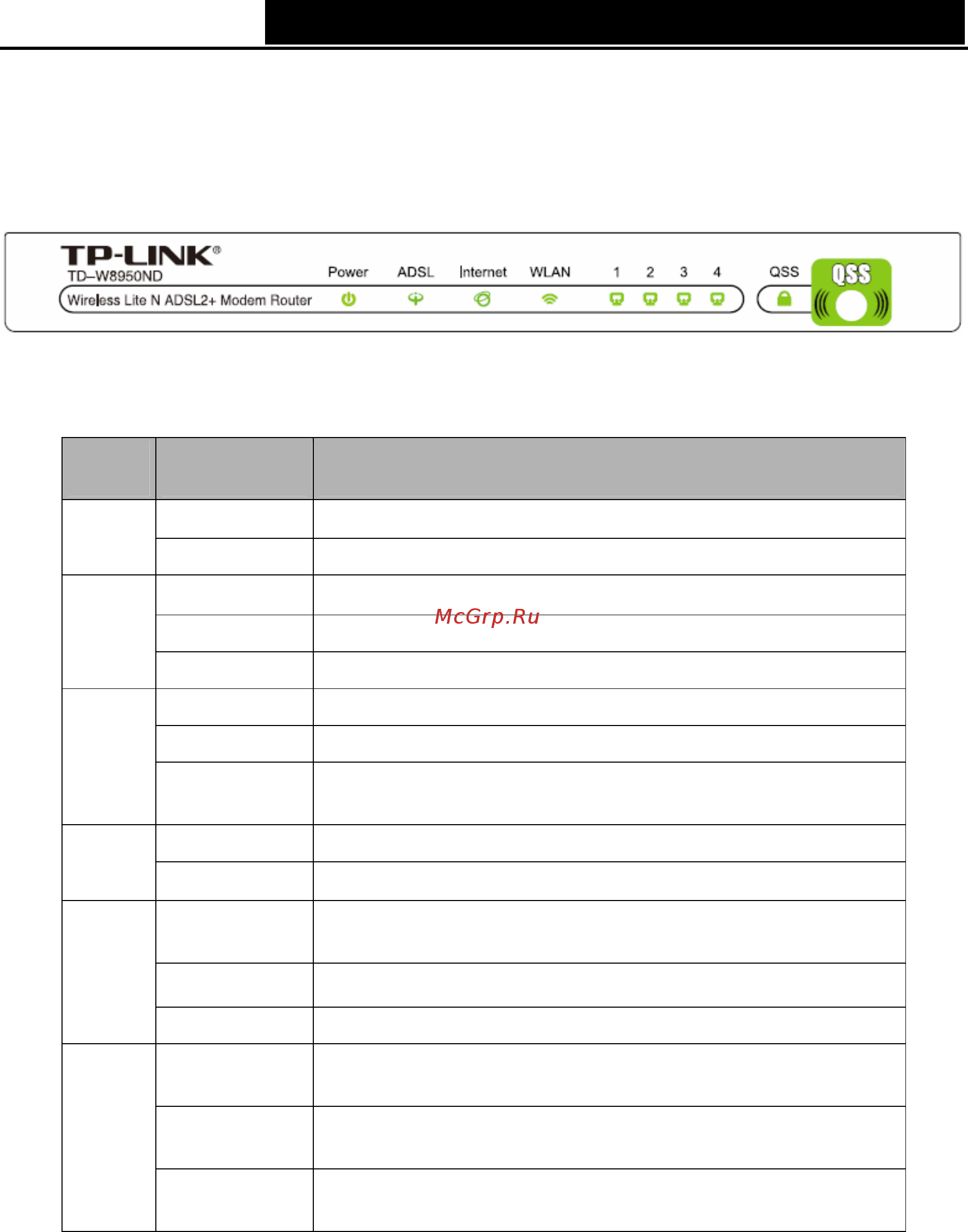

Figure 1-1

The Router’s LEDs and the QSS button are located on the front panel (View from left to right).

Name Status Description

On Power is on

Power

Off Power is off

On The LINE port has connected to ISP’s network

Flashing The LINE port is connecting to the ISP’s network

ADSL

Off The LINE port is disconnected

On A successful PPP connection has been established

Flashing Data is being transferred over the Internet

Internet

Off

There is no successful PPP connection or the Router

works on Bridge mode

Off The Wireless function is disabled

WLAN

Flashing The Wireless function is enabled

There is a device linked to the corresponding port but there

is no activity

Flashing There is an active device linked to the corresponding port

LAN 1-4

Off There is no device linked to the corresponding port

A wireless device has been successfully added to the

network by QSS function.

Flashing

A wireless device is connecting to the network by QSS

function.

QSS

Off

No wireless device is added to the network by QSS

function.

)

Note:

After a device is successfully added to the network by QSS function, the QSS LED will keep on for

about 5 minutes and then turn off.
