Tp-Link TD-W8950ND [46/94] Dmz host

TD-W8950ND 150Mbps Wireless Lite N ADSL2+ Modem Router User Guide

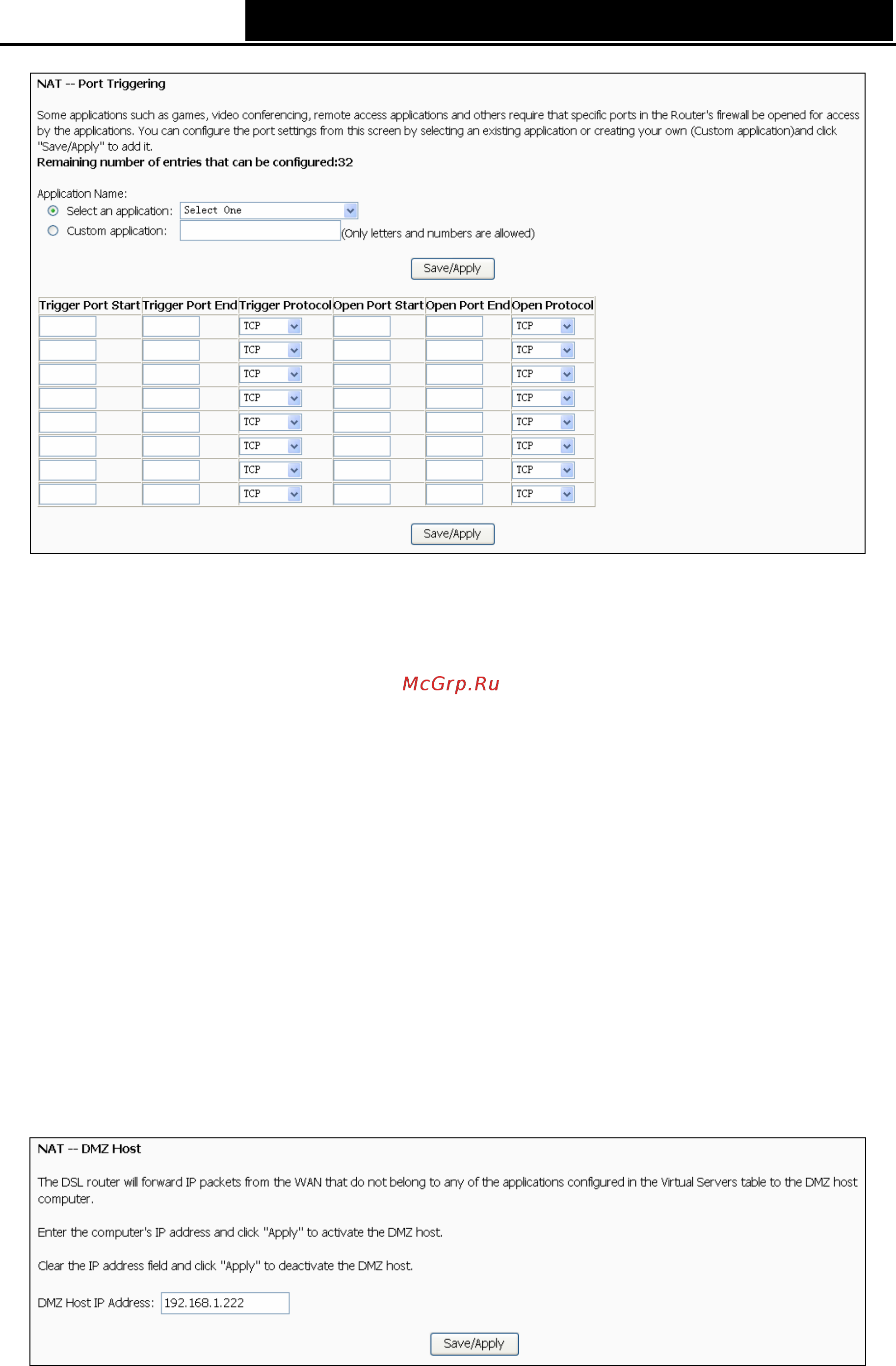

Figure 4-35

2. Select the application from the drop-down list. If the list does not have the application that

you want, select the Custom application radio button, and type the name of the custom

application in the text box.

3. Enter the Trigger Port Start, Trigger Port End, Open Port Start and Open Port End in the table,

and then select the Trigger protocol and Open protocol, TCP, UDP or All.

4. Click Save/Apply to enable the settings and then you will see you settings as shown in Figure

4-34.

)

Note:

If you select the application from the drop-down list, the External Port Start, External Port End,

Internal Port Start, Internal Port End and the Protocol will be added in the table automatically.

4.5.4.3 DMZ Host

Choose “Advanced Setup→NAT→DMZ Host”, you can set up DMZ Host on the screen (shown in

Figure 4-36).

The DMZ host feature can make a local host be exposed to the Internet for a special-purpose

service, such as online gaming or video conferencing.

Figure 4-36

To add a new DMZ Host:
